Vertical Check Valve ½" PN16

Item No.
60-00000324
Details
RG5 body vertical check valve with metal sealing. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 320022
Material Body Bronze
Min temperature -10°C
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size 15
Material Disc Brass
Pressure Rating PN16
End Type Threaded
Sub Category CHECK
Item Number 60-00000324
Category Valve
Inspection Standard EN 12266
Max temperature +180°C

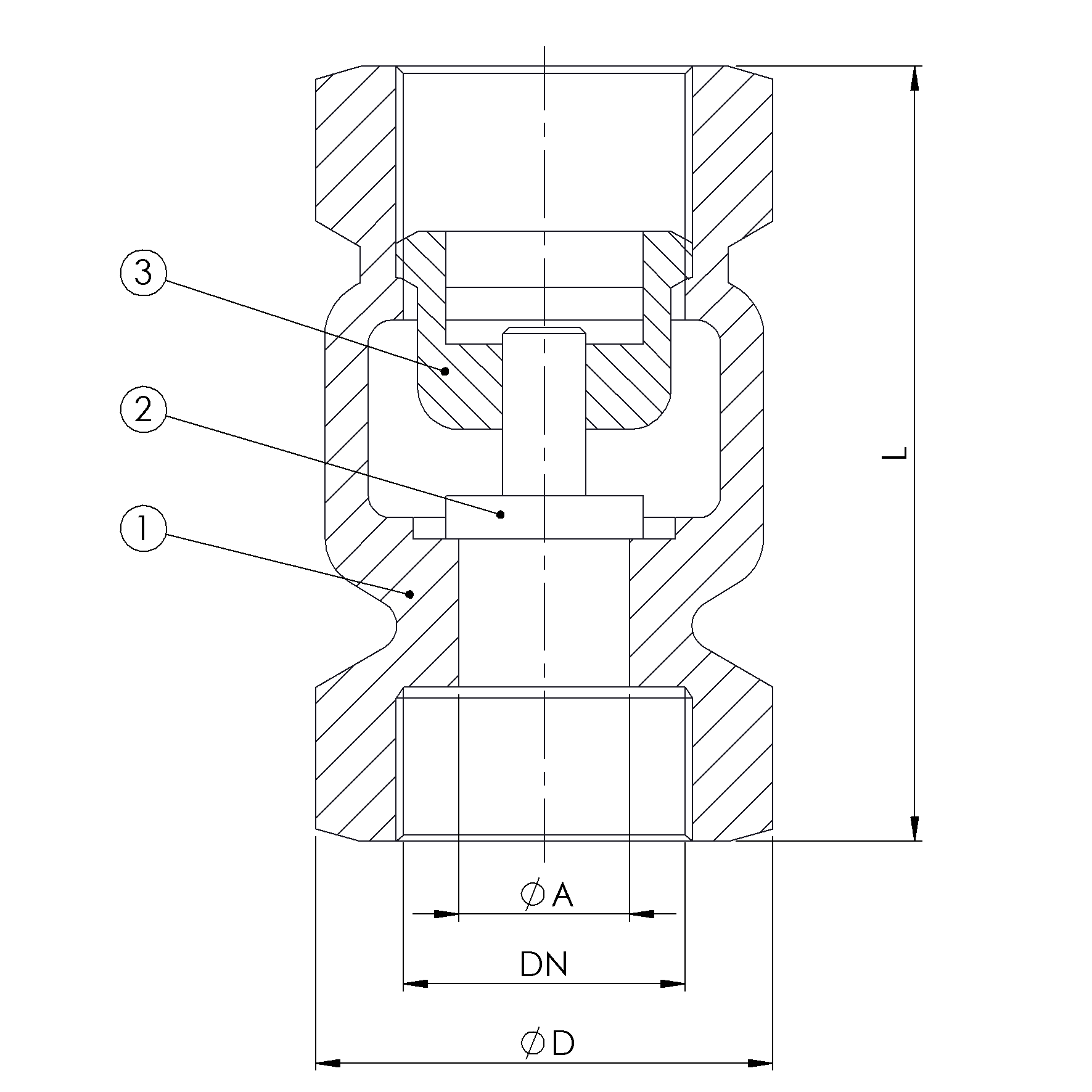

Partslist and details
PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Disc Brass CW 614N
3 Ring nut Brass CW 614N


DETAILS
DN Pressure Rating Id Ø D L Kg Inch Ø A
15 16 34 55 0.2 1/2" 12
