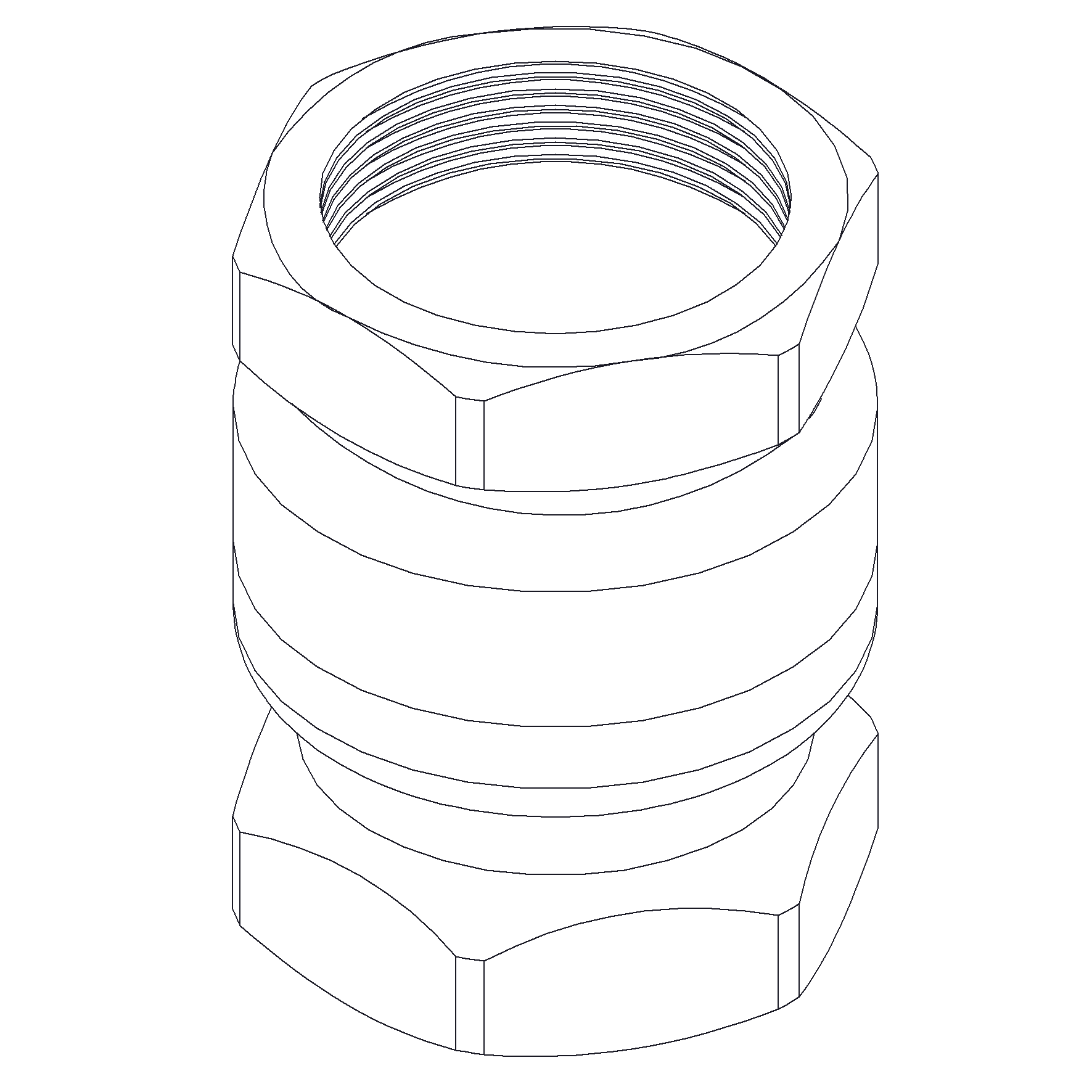

Vertical Check Valve 1¼" PN16
Details
RG5 body vertical check valve with metal sealing. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 320022 |
| Material Body | Bronze |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water |
| Size | 32 |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | CHECK |
| Item Number | 60-00000327 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Max temperature | +180°C |

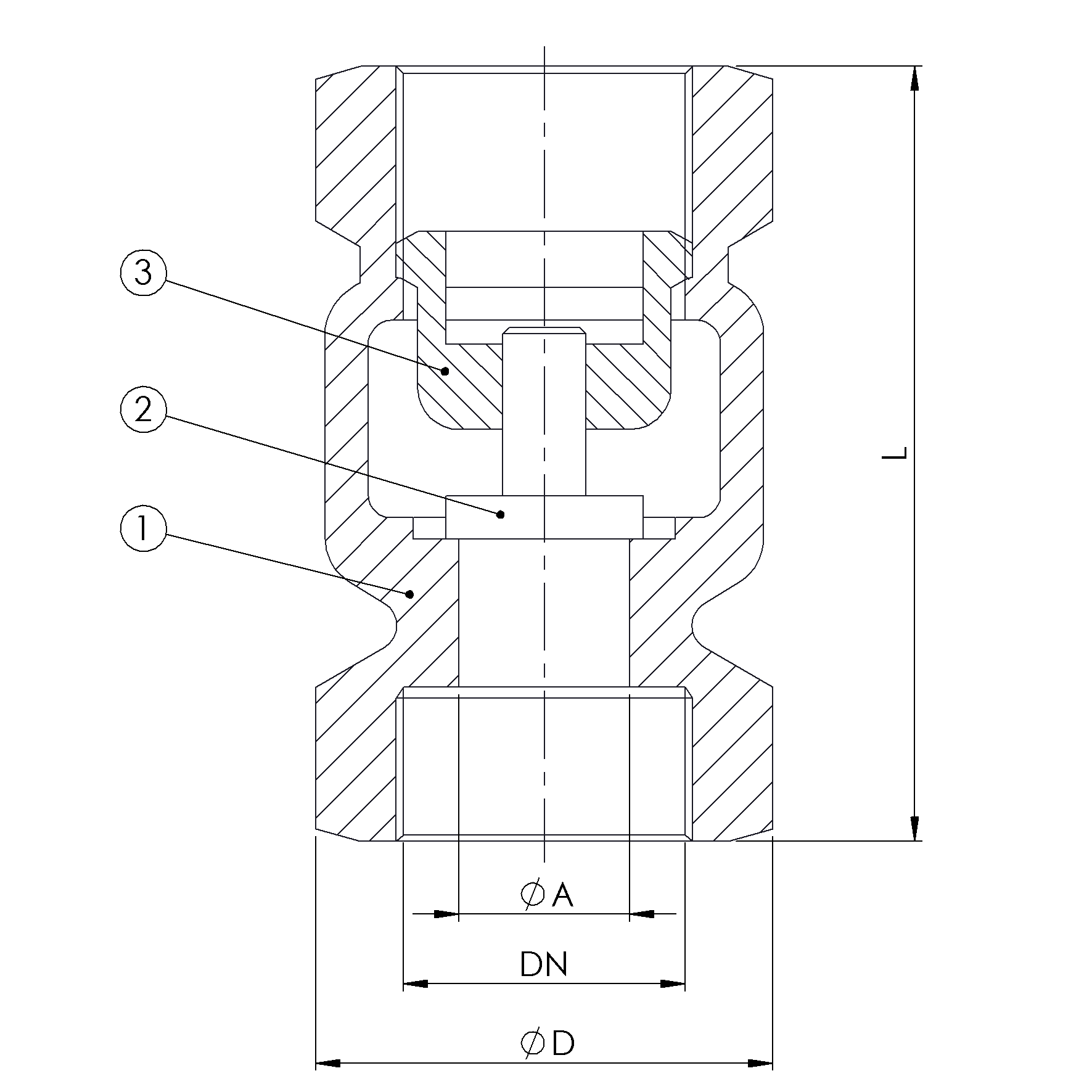

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Disc | Brass | CW 614N |
| 3 | Brass | Brass | CW 614N |
DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg | Inch | Ø A |
|---|---|---|---|---|---|---|
| 32 | 16 | 62 | 80 | 0.6 | 1 1/4" | 32 |
