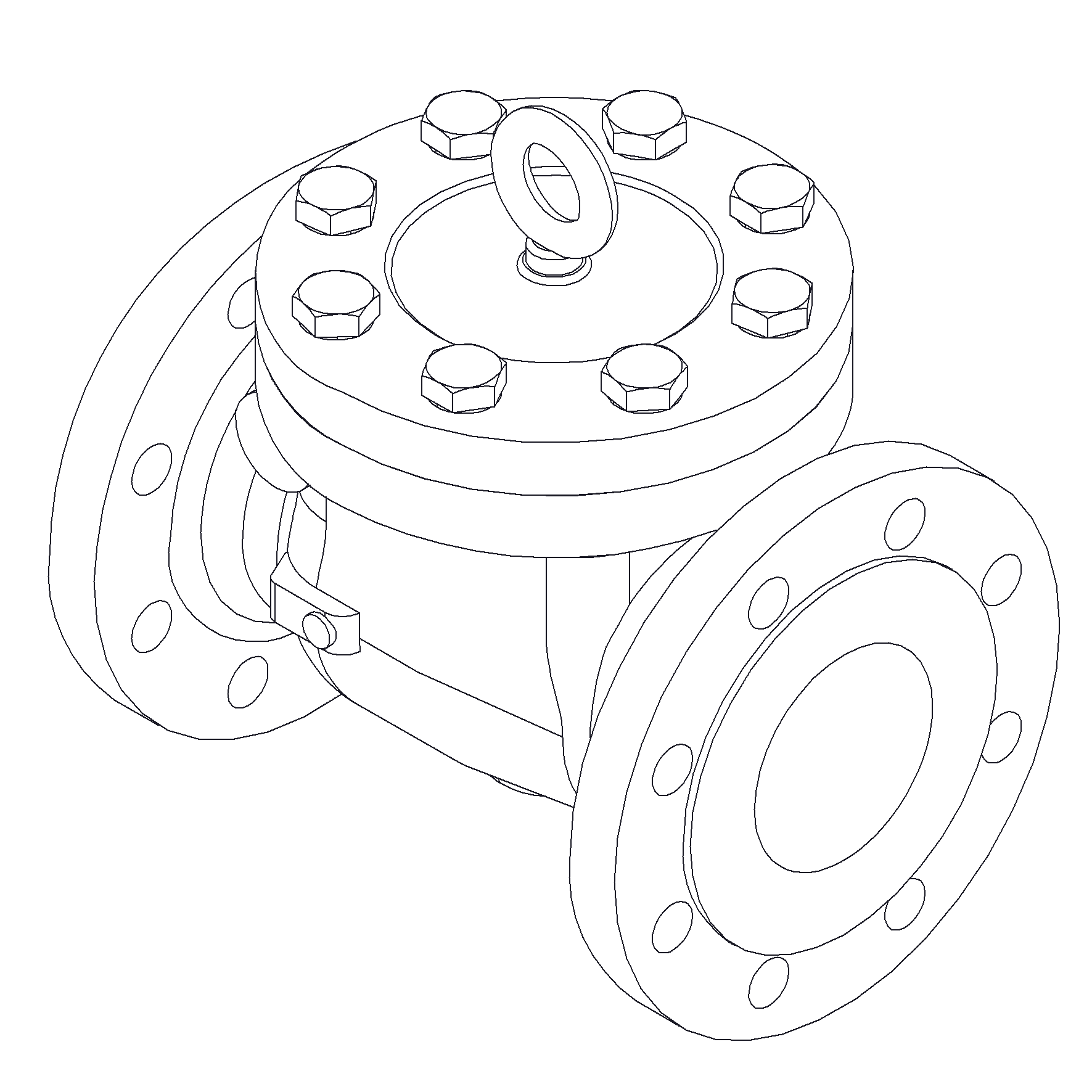

Swing Check Valve DN80 ANSI 150
Details
Cast Steel body, full bore swing check valve with Stainless Steel seat and Cast Steel disc. Raised face flanges.
More Information
Price View | Price Range |
---|---|
Product Group | 370267 |
Material Body | Cast Steel |
Remark | Connection: ANSI 150 |
Throughput Direction | Straight |
Face To Face Standard | ASME B16.10 |
End Standard | ASME B16.5 |
Design Code | API 594 |
Standard | ANSI |
Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
Size | 80 |
Material Seat | Stainless Steel, 420 |
Material Disc | Cast Steel |
Pressure Rating | ANSI 150 |
End Type | Flanged |
Sub Category | CHECK |
Item Number | 60-00000563 |
Category | Valve |
Inspection Standard | API 598 |
Execution | Full Bore |
Partslist and details

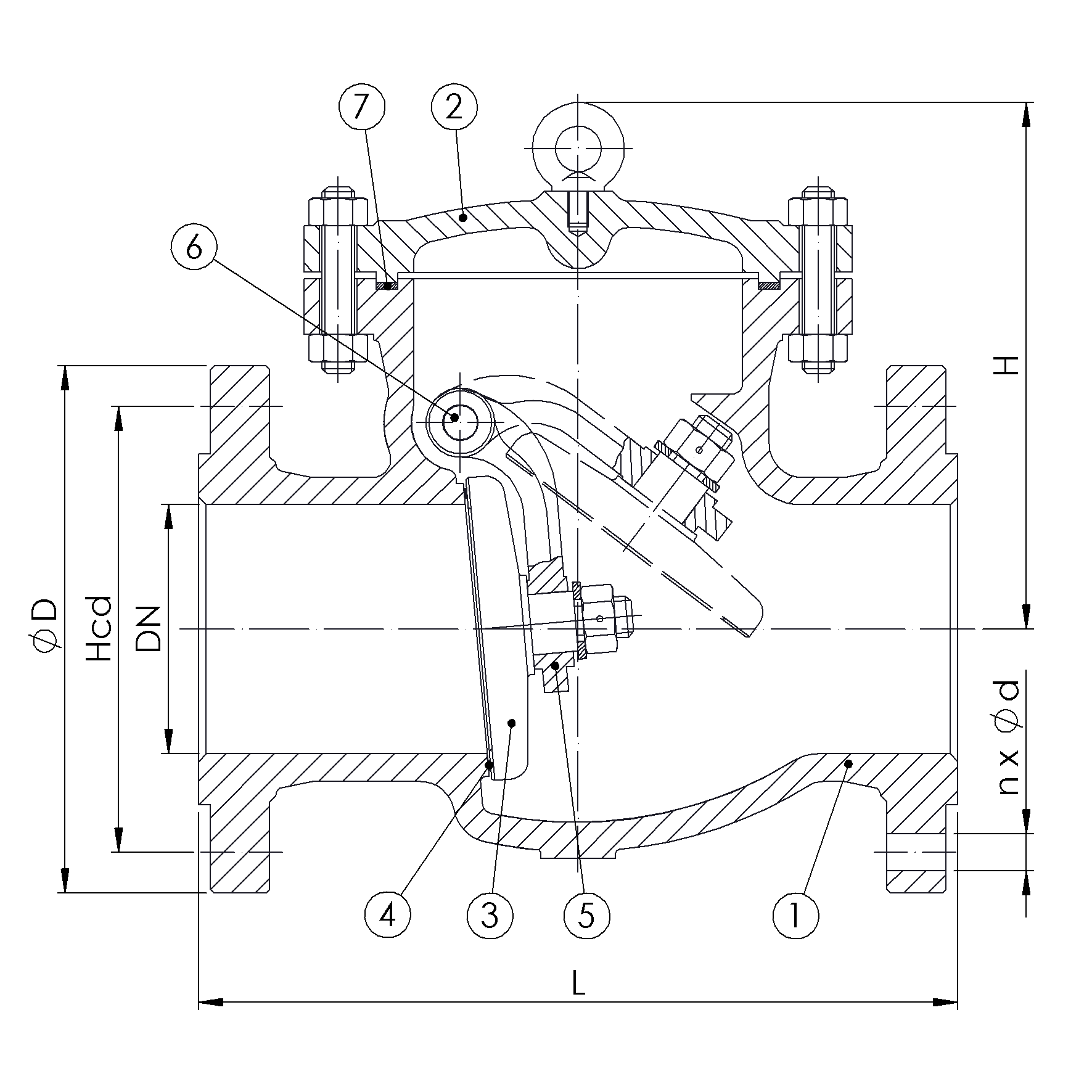

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Cast Steel | ASTM A216-WCB |
2 | Bonnet | Cast Steel | ASTM A216-WCB |
3 | Disc | Cast Steel | ASTM A216-WCB |
4 | Seat | Stainless Steel | Deposited 13Cr |
5 | Hinge | Cast Steel | ASTM A216-WCB |
6 | Hinge pin | Stainless Steel | ASTM A276-420 |
7 | Gasket | Graphite |
DETAILS
DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H |
---|---|---|---|---|---|---|---|
80 | 150 | 4x19 | 152.4 | 190 | 241 | 33 | 190 |
