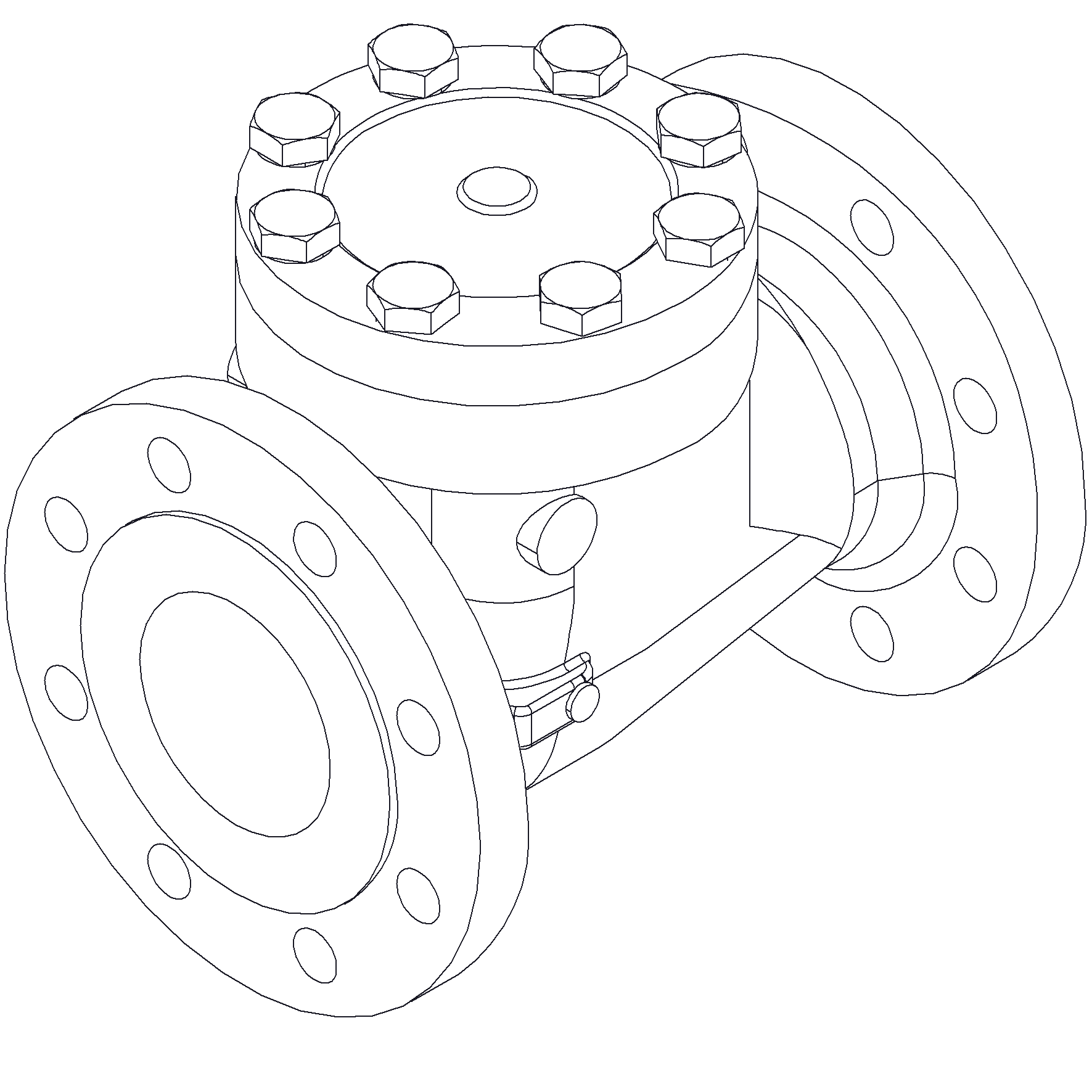

Swing check Valve DN65 PN10

Item No.
M40200
Details
Nodular Cast Iron body, full bore swing check valve with NBR soft sealing. Raised face flanges.
More Information
More Information
Product Group 370202
Remark Connection: PN16
End Standard EN 1092-2
Face To Face Standard EN 558, series 48
Execution Full Bore
Max temperature +120°C
Min temperature -10°C
Throughput Direction Straight
Material Disc Stainless Steel, 304
End Type Flanged
Design Code DIN 3232
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size 65
Material Seat NBR
Material Body Nodular Cast Iron, GGG40.3
Sub Category CHECK
Item Number M40200
Category Valve
Pressure Rating PN16
Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Bonnet Nodular Cast Iron GGG40.3
3 Body seat Stainless Steel 1.4301
4 Disc Nodular Cast Iron GGG40.3
5 Disc sealing NBR
6 Stem Brass CW 614N
7 Hinge arm Nodular Cast Iron GGG40.3
8 Bonnet gasket Asbestos Free


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H
65 16 4x18 145 185 240 15 120
