Swing Check Valve DN50 PN16

Item No.
60-00000544
Details

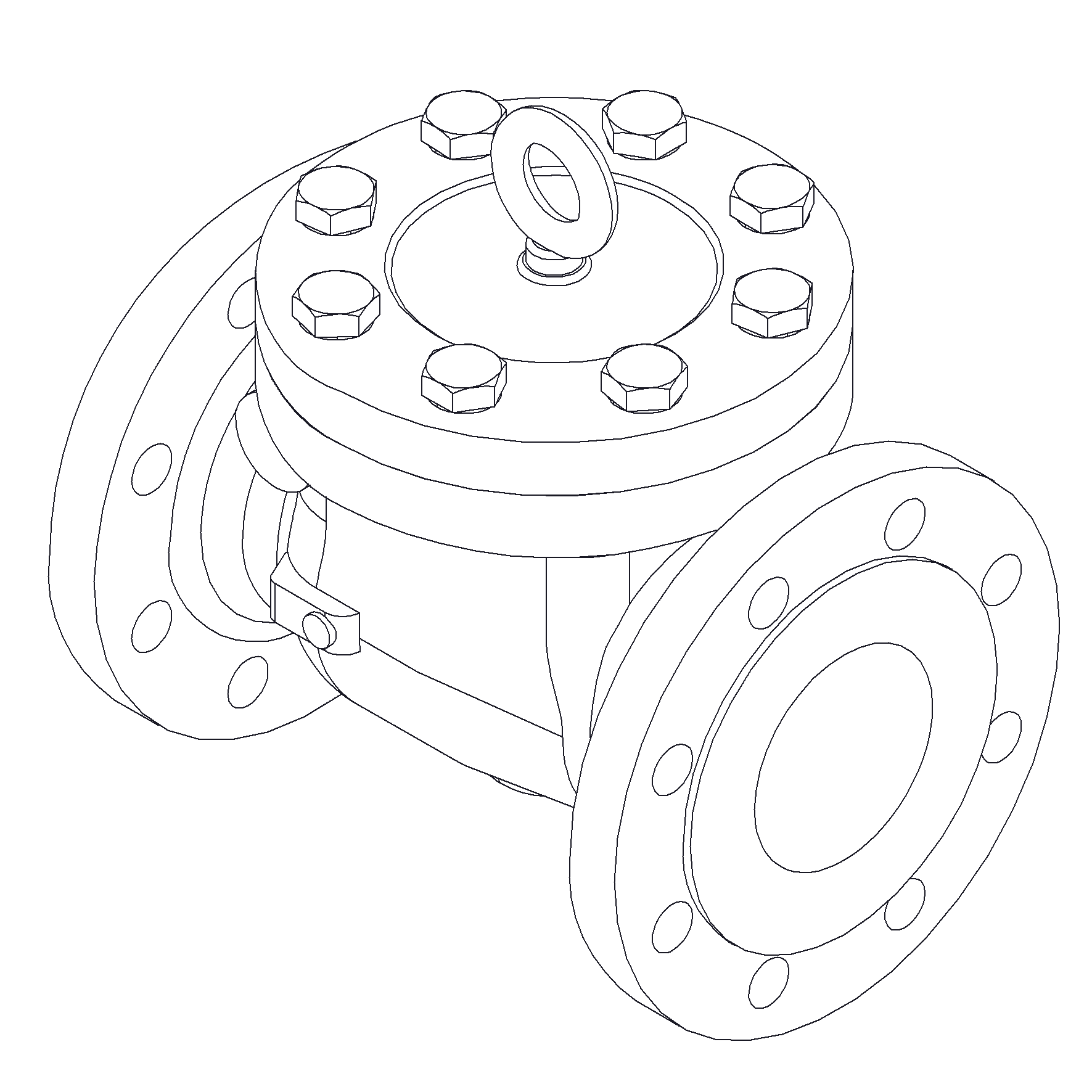

Cast Steel body, full bore swing check valve with Cast Steel disc and Stainless Steel seat. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 370262
Material Body Cast Steel
Remark Connection: PN16
Throughput Direction Straight
Face To Face Standard EN 558, series 48
End Standard EN 1092-1
Design Code BS 1868
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 50
Material Seat Stainless Steel, 420
Material Disc Cast Steel
Pressure Rating PN16
End Type Flanged
Sub Category CHECK
Item Number 60-00000544
Category Valve
Inspection Standard EN 12266
Execution Full Bore

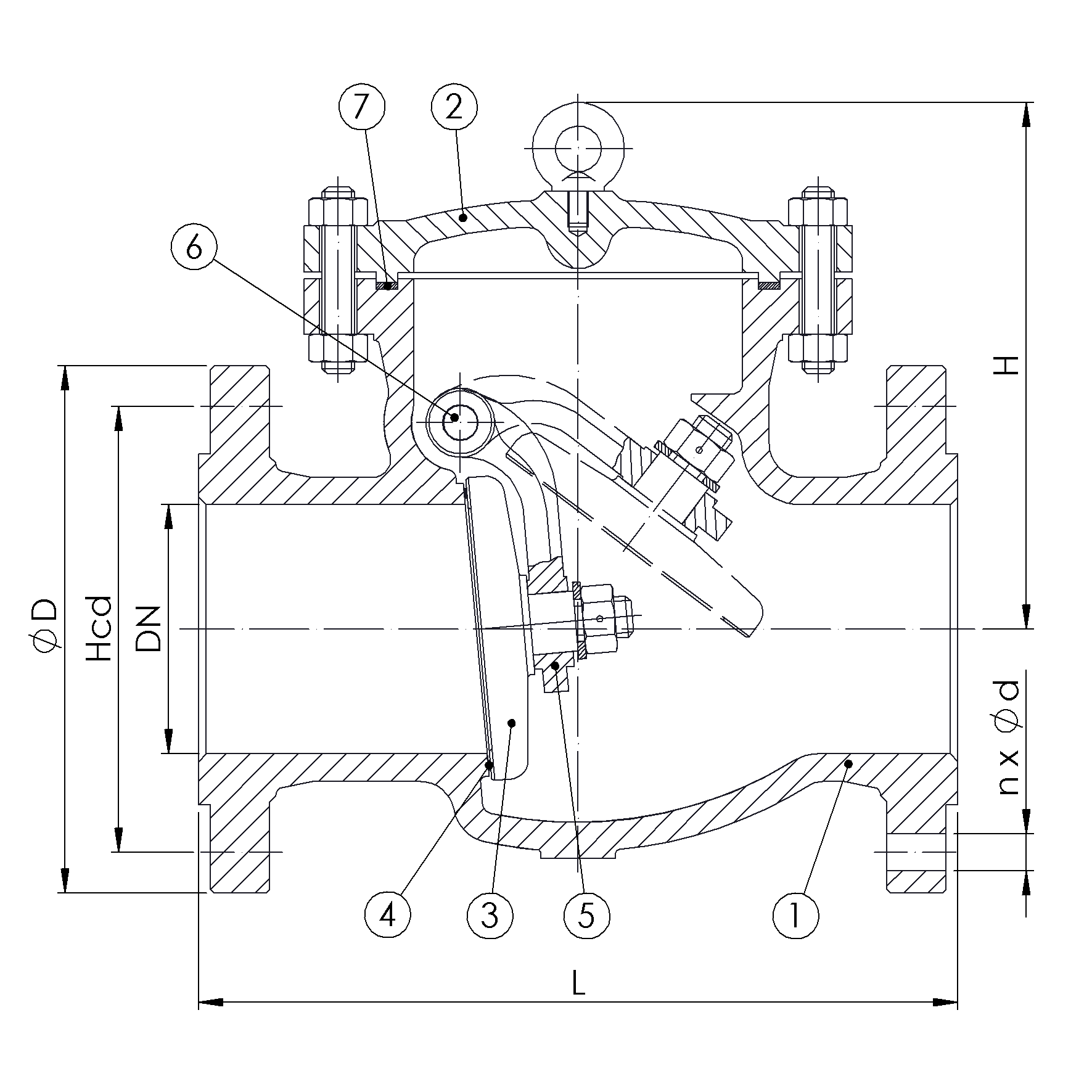

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Disc Cast Steel ASTM A216-WCB
4 Seat Stainless Steel Deposited 13Cr
5 Hinge Cast Steel ASTM A216-WCB
6 Hinge pin Stainless Steel ASTM A276-420
7 Gasket Graphite


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H
50 16 4x18 125 165 200 21 135
