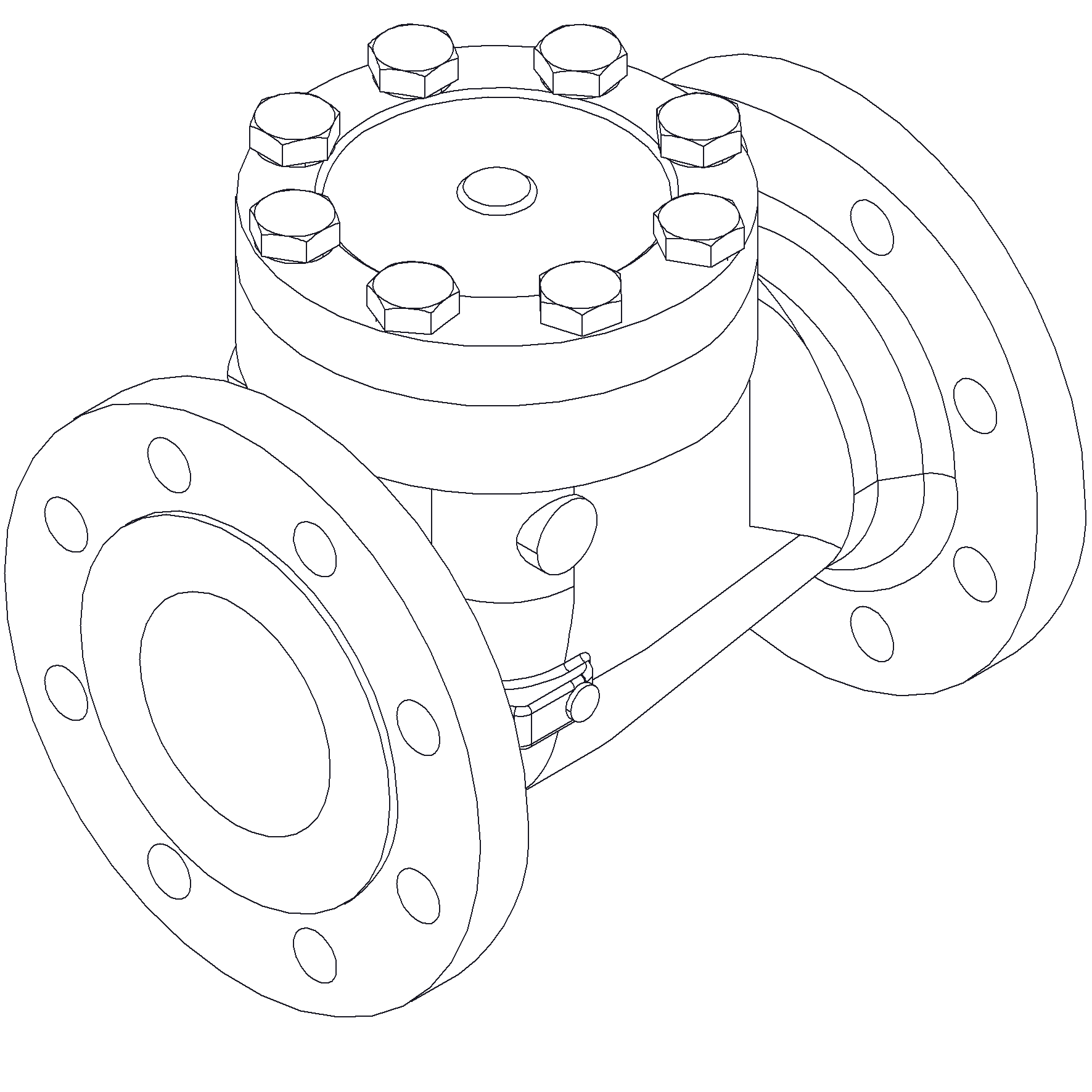

Swing check Valve DN50 PN10
Details
Nodular Cast Iron body, full bore swing check valve with NBR soft sealing. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 370202 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 48 |
| End Standard | EN 1092-2 |
| Design Code | DIN 3232 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water |
| Size | 50 |
| Material Seat | NBR |
| Material Disc | Stainless Steel, 304 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | CHECK |
| Item Number | M82001 |
| Category | Valve |
| Execution | Full Bore |
| Max temperature | +120°C |
Partslist and details

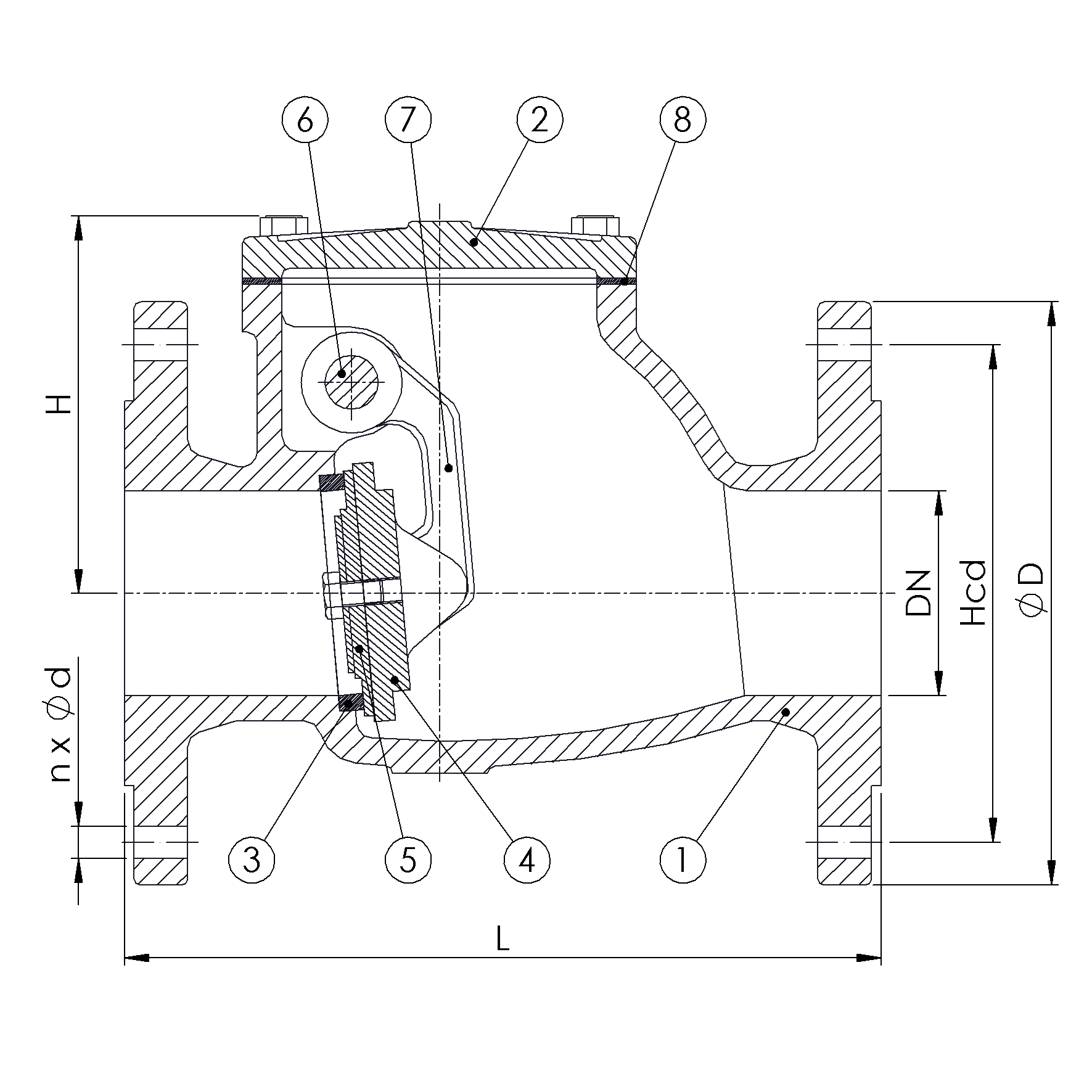

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Bonnet | Nodular Cast Iron | GGG40.3 |
| 3 | Body seat | Stainless Steel | 1.4301 |
| 4 | Disc | Nodular Cast Iron | GGG40.3 |
| 5 | Disc sealing | NBR | |
| 6 | Stem | Brass | CW 614N |
| 7 | Hinge arm | Nodular Cast Iron | GGG40.3 |
| 8 | Bonnet gasket | Asbestos Free |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H |
|---|---|---|---|---|---|---|---|
| 50 | 16 | 4x18 | 125 | 165 | 200 | 10 | 105 |
