Swing Check Valve DN50 ANSI-150

Item No.
60-00000561
Details

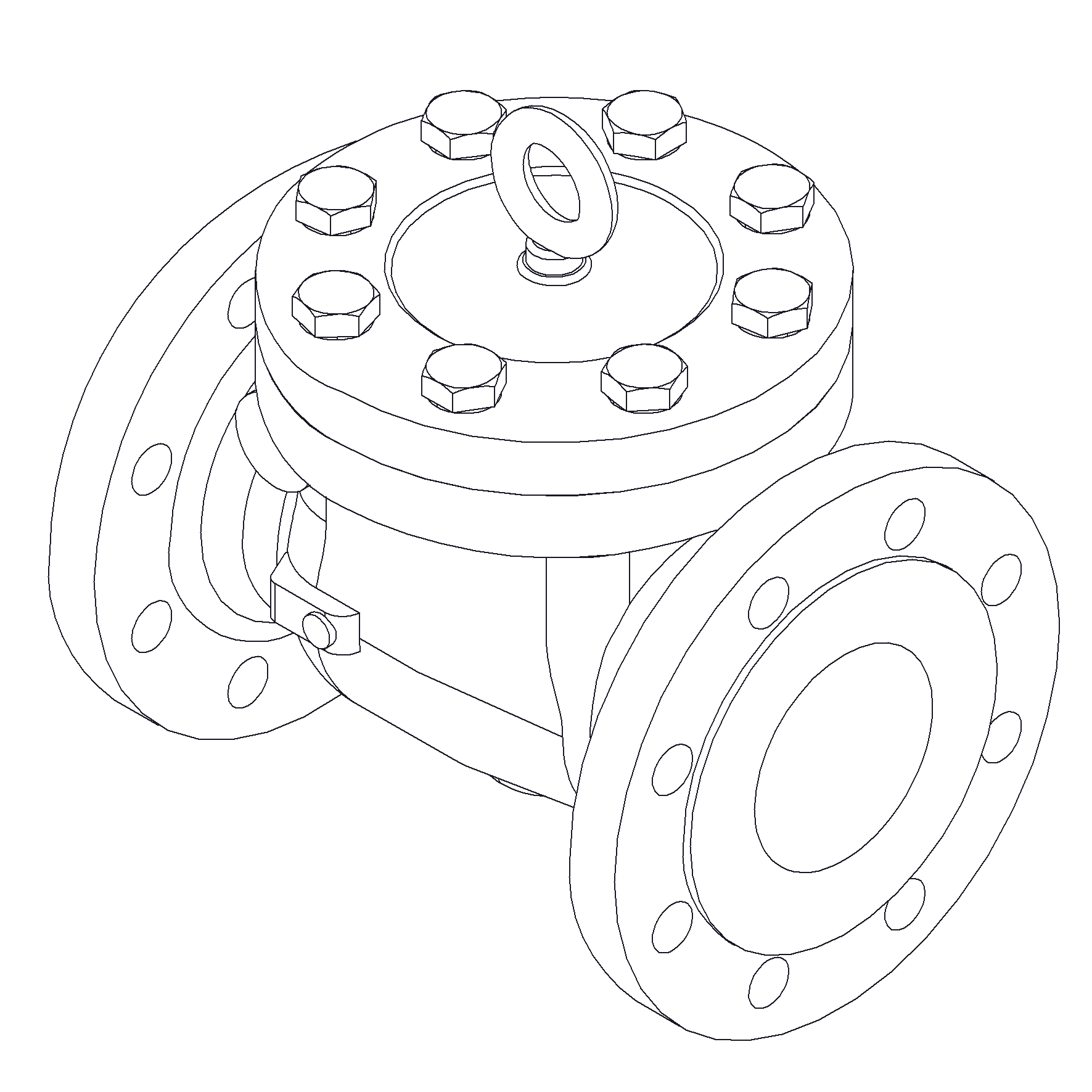

Cast Steel body, full bore swing check valve with Stainless Steel seat and Cast Steel disc. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 370267
Material Body Cast Steel
Remark Connection: ANSI 150
Throughput Direction Straight
Face To Face Standard ASME B16.10
End Standard ASME B16.5
Design Code API 594
Standard ANSI
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 50
Material Seat Stainless Steel, 420
Material Disc Cast Steel
Pressure Rating ANSI 150
End Type Flanged
Sub Category CHECK
Item Number 60-00000561
Category Valve
Inspection Standard API 598
Execution Full Bore

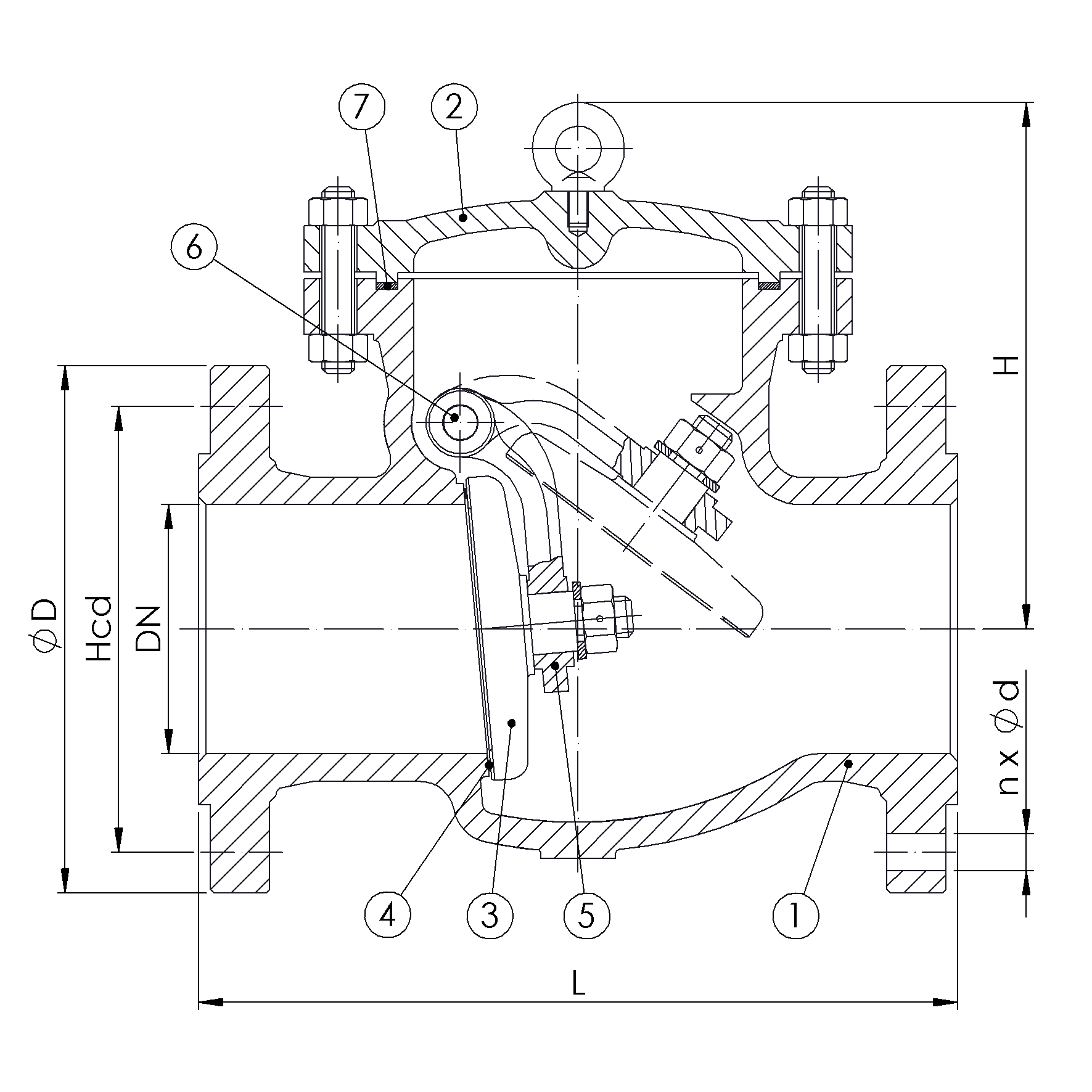

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Disc Cast Steel ASTM A216-WCB
4 Seat Stainless Steel Deposited 13Cr
5 Hinge Cast Steel ASTM A216-WCB
6 Hinge pin Stainless Steel ASTM A276-420
7 Gasket Graphite


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H
50 150 4x19 120.7 150 203 17 161
