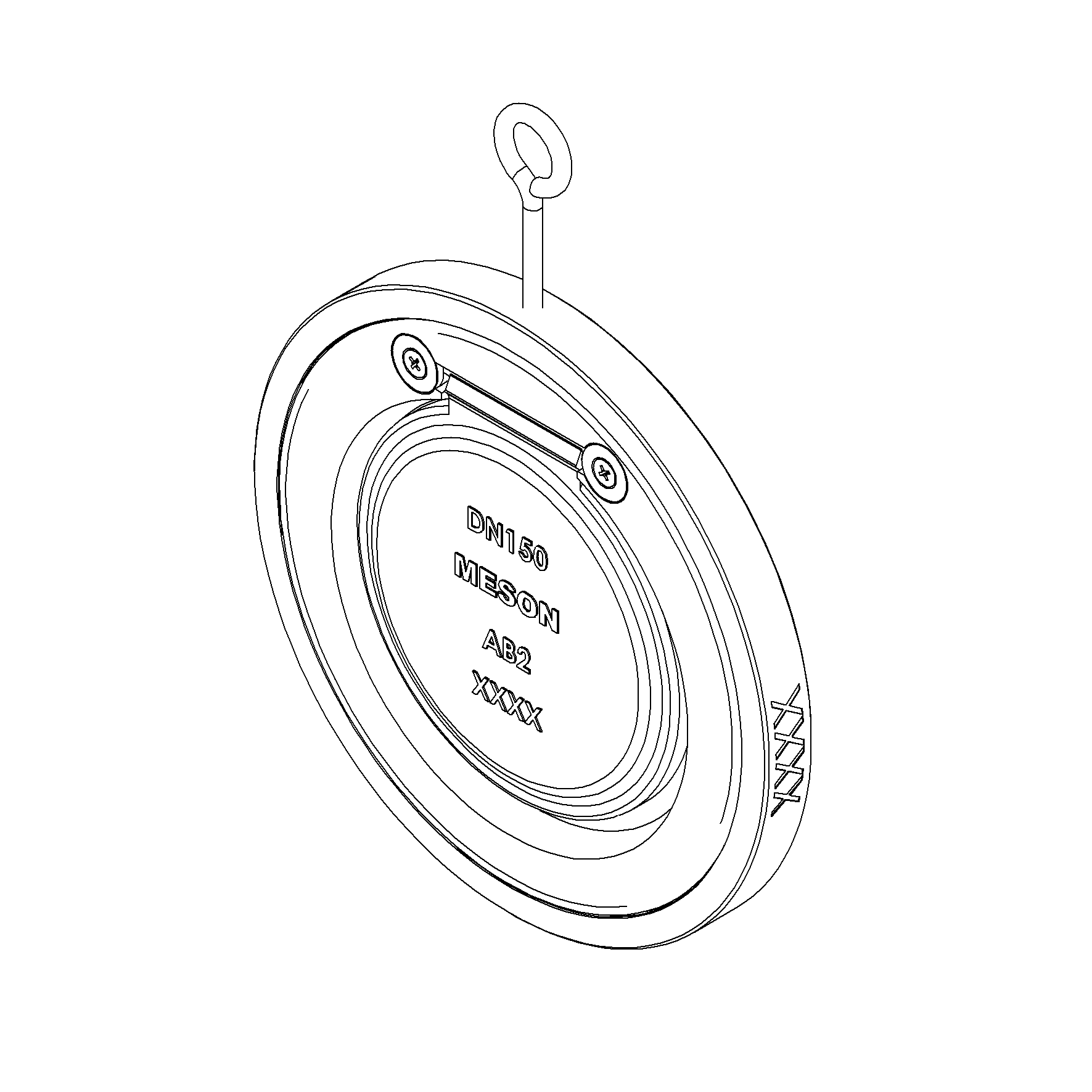

Swing Check Valve DN350 PN10

Wafer type
Item No.
M82024
Details
Aluminium Bronze body, EPDM sealing swing check valve with Aluminium Bronze disc.
More Information
More Information
Price View Price Range
Product Group 305072
Material Body Aluminium Bronze
Min temperature -20°C
Remark Connection: PN10
Throughput Direction Straight
Standard DIN
Application Boiler feedwater, Condensate, Sea water, Water
Size 350
Material Seat EPDM
Material Disc Aluminium Bronze
Pressure Rating PN10
End Type Wafer
Sub Category CHECK
Item Number M82024
Category Valve
Max temperature +100°C

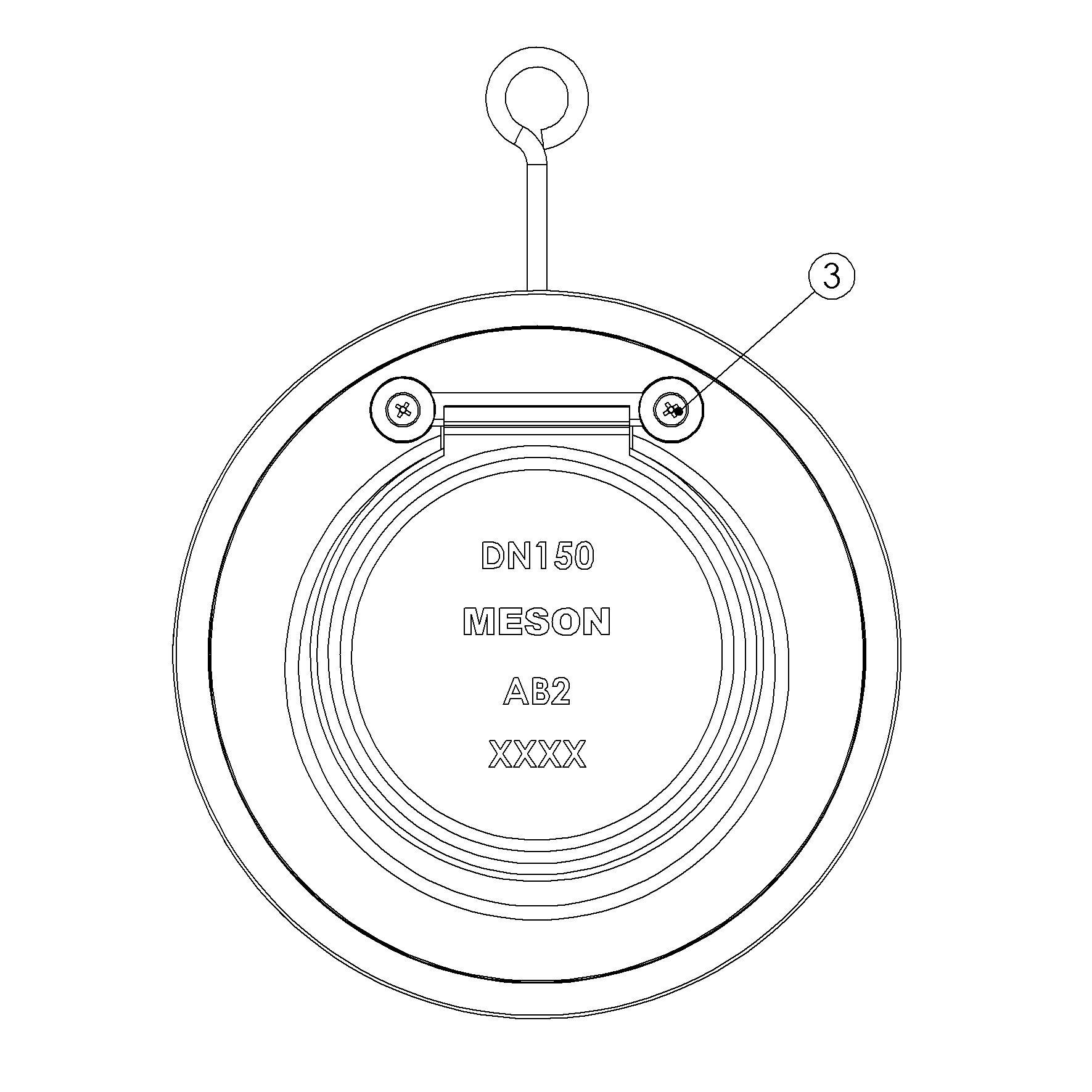

Partslist and details
PARTSLIST
No Part Material Code
1 Body Aluminium Bronze
2 Disc Aluminium Bronze
3 Bolt Stainless Steel 1.4436
4 Eye bolt 8.8 FZB
5 O-ring EPDM
6 O-ring EPDM

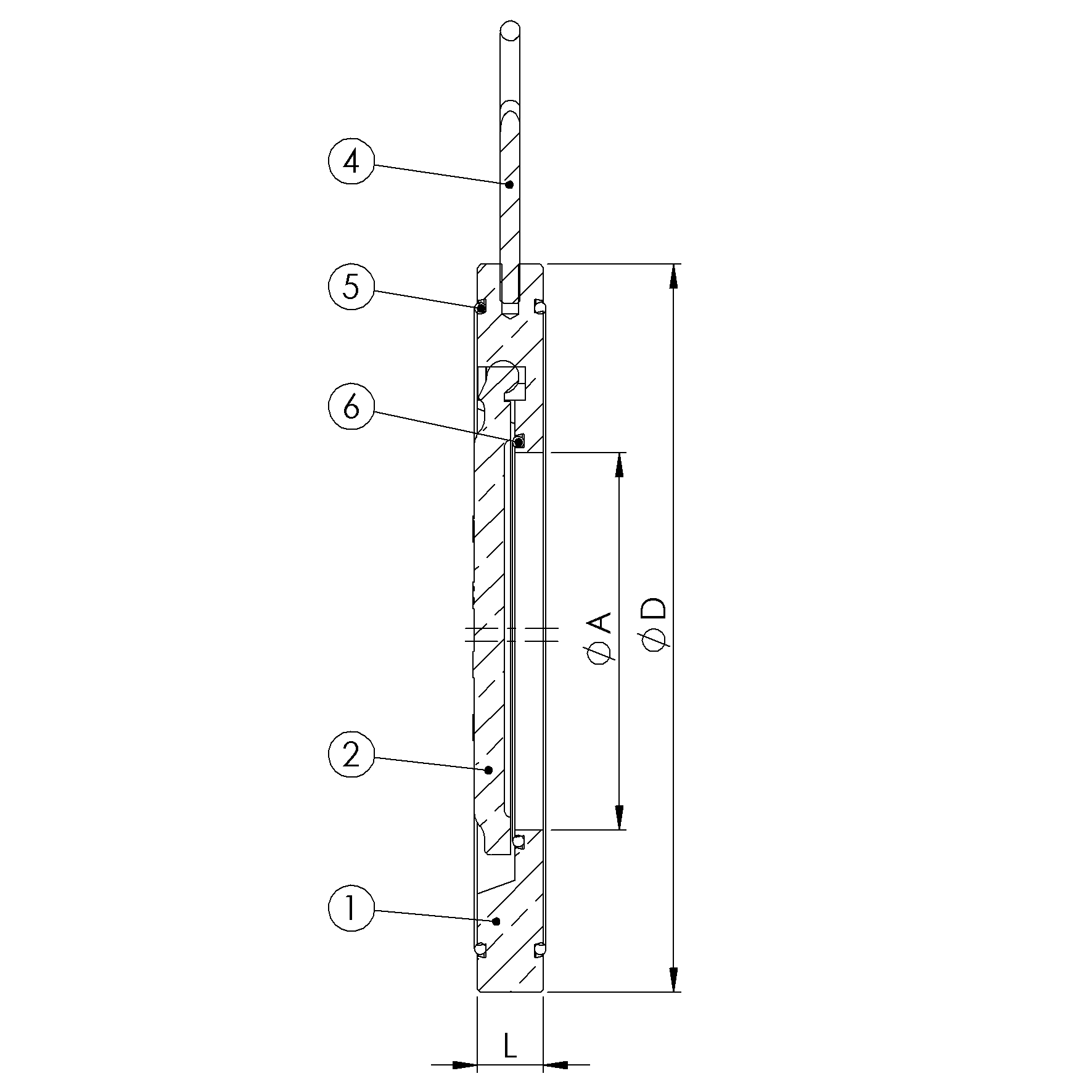

DETAILS
DN Pressure Rating Id Ø D L Kg Ø A
350 10 440 38 34 270
