Swing Check Valve DN350 PN10

Wafer type
Item No.
60-00000079
Details
Stainless Steel body, NBR sealing swing check valve with Stainless Steel disc.
More Information
More Information
Price View Price Range
Product Group 305091
Material Body Stainless Steel, 316
Min temperature -15°C
Remark Connection: PN10
Throughput Direction Straight
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 350
Material Seat NBR
Material Disc Stainless Steel, 316
Pressure Rating PN10
End Type Wafer
Sub Category CHECK
Item Number 60-00000079
Category Valve
Max temperature +80°C

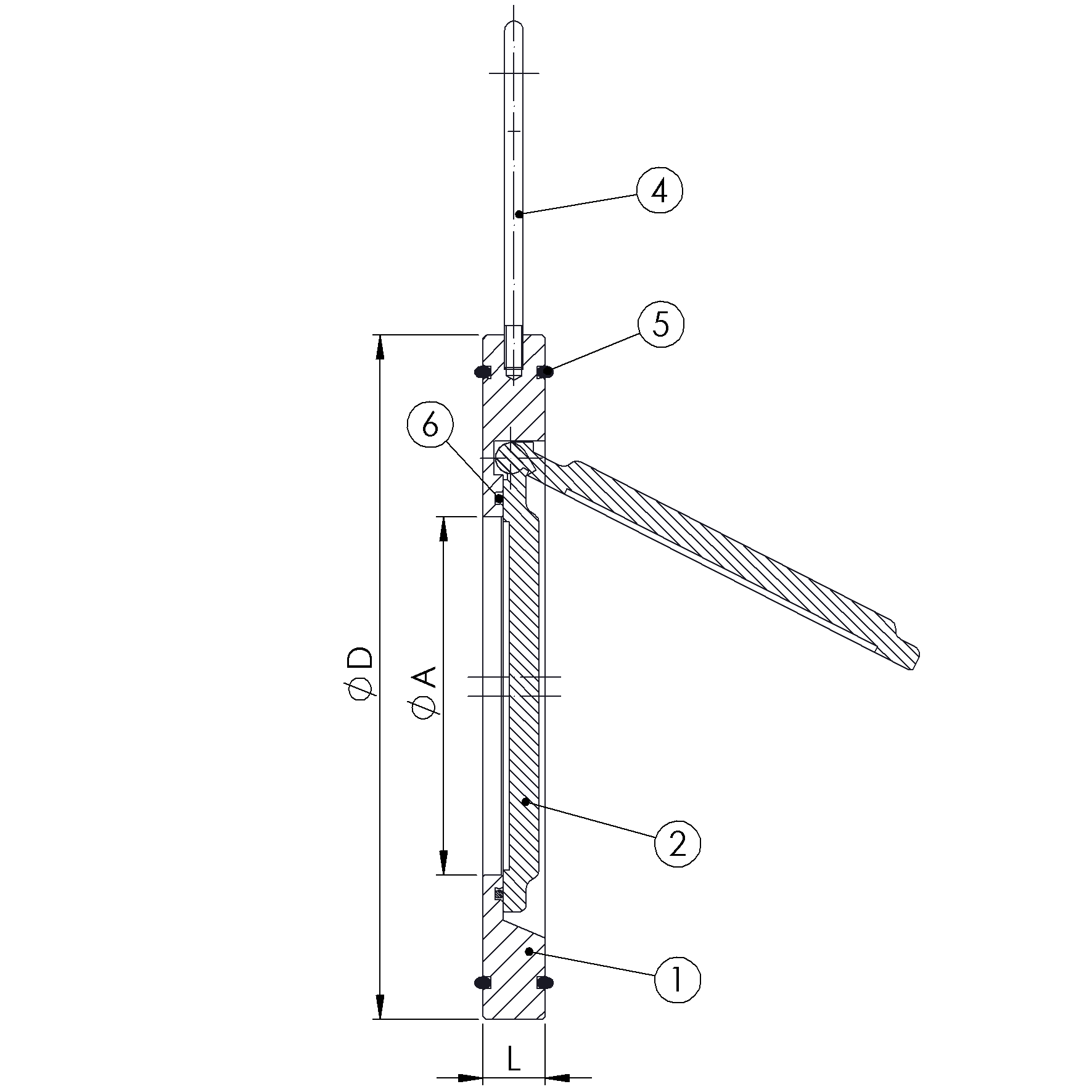

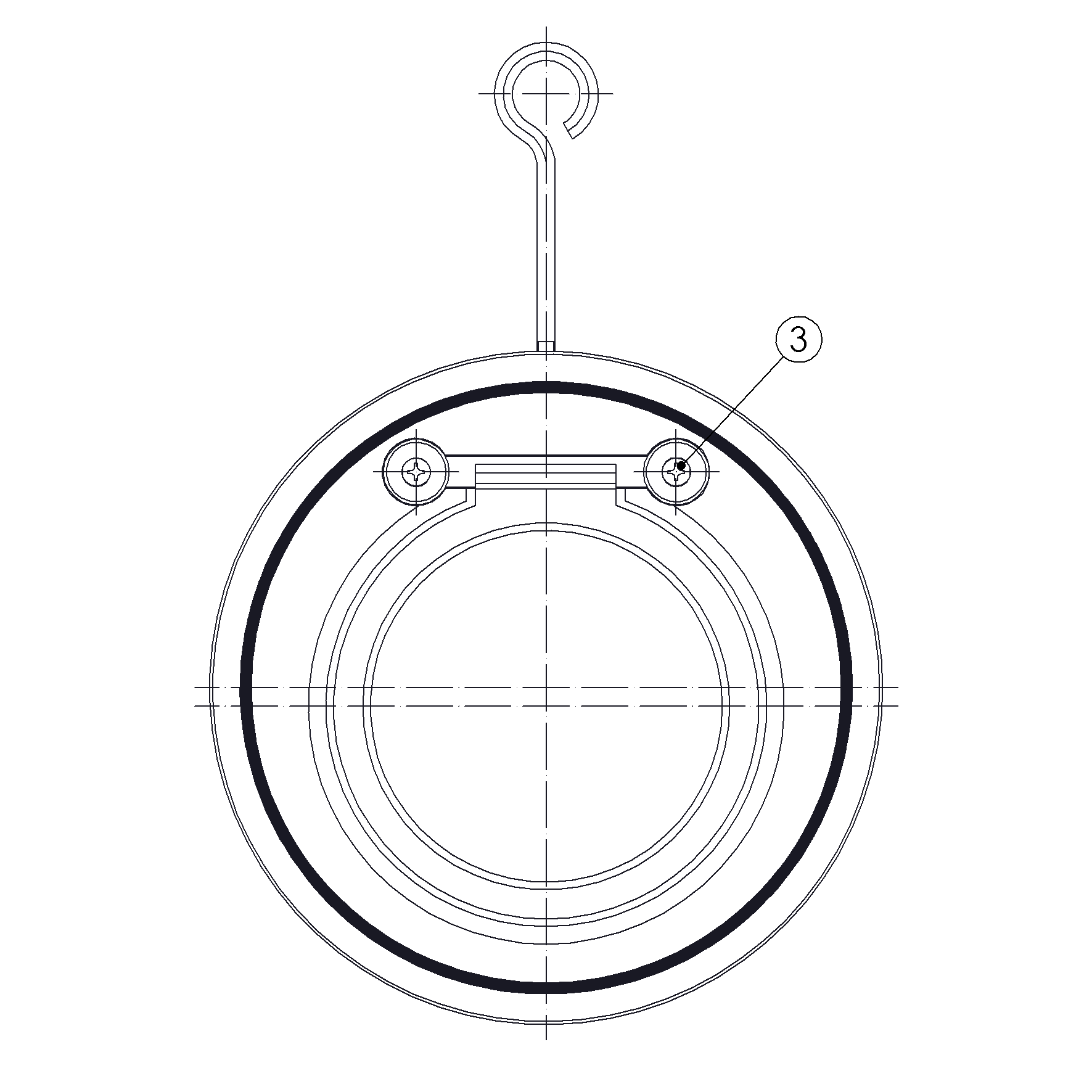

Partslist and details
PARTSLIST
No Part Material Code
1 Body Stainless Steel CF8M
2 Disc Stainless Steel CF8M
3 Bolt Stainless Steel SS 316
4 Eye bolt Stainless Steel SS 316
5 O-ring NBR
6 O-ring NBR



DETAILS
DN Pressure Rating Id Ø D L Kg Ø A
350 10 440 38 34 270
