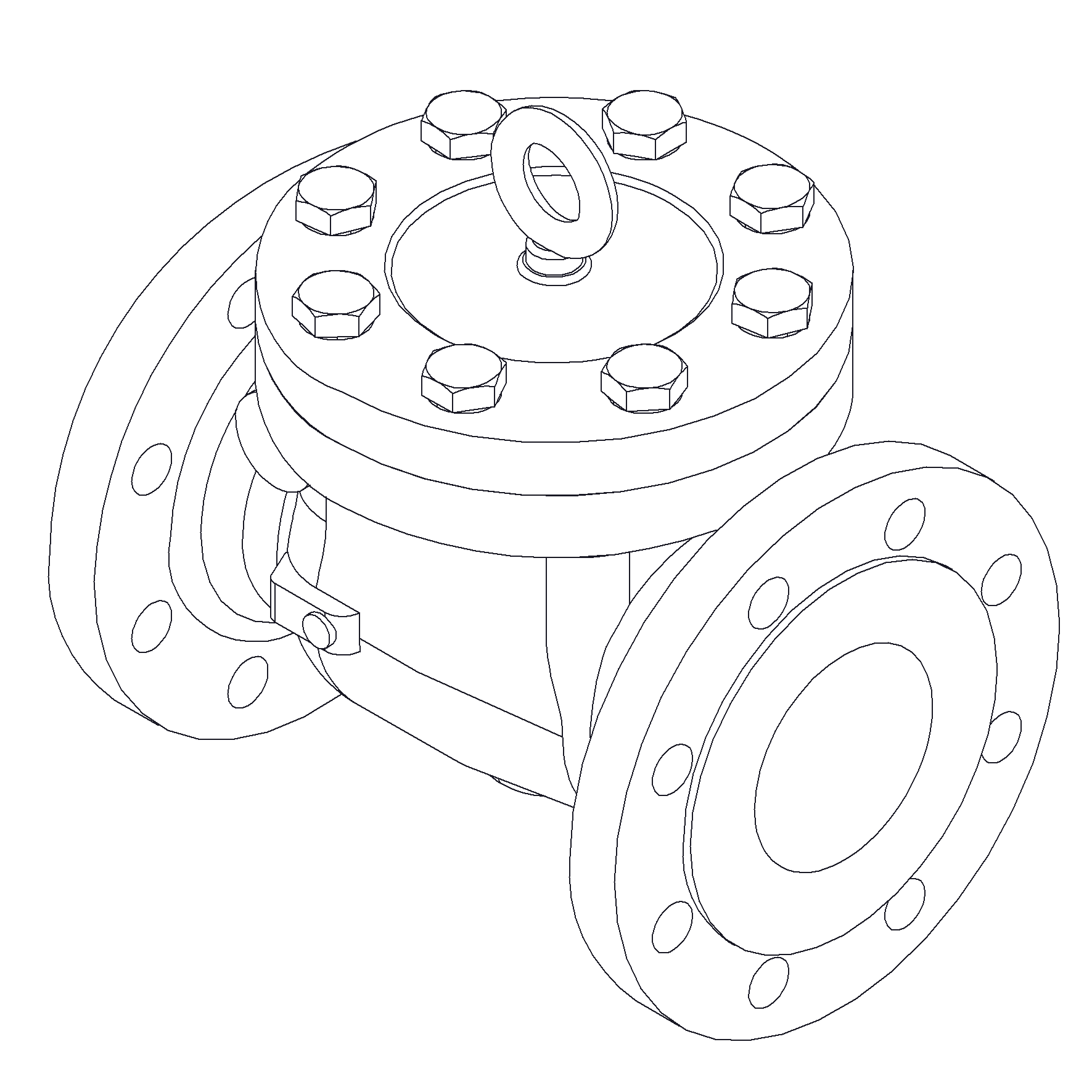

Swing Check Valve DN300 PN16

Item No.
Cast Steel body, full bore swing check valve with Cast Steel disc and Stainless Steel seat. Raised face flanges.
More Information
More Information
Price ViewPrice Range
Product Group370262
End StandardEN 1092-1
Face To Face StandardEN 558, series 48
Inspection StandardEN 12266
RemarkConnection: PN16
Throughput DirectionStraight
ExecutionFull Bore
Pressure RatingPN16
End TypeFlanged
Design CodeBS 1868
ApplicationBoiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Material SeatStainless Steel, 420
Material DiscCast Steel
Material BodyCast Steel
Sub CategoryCHECK
Item Number60-00000556

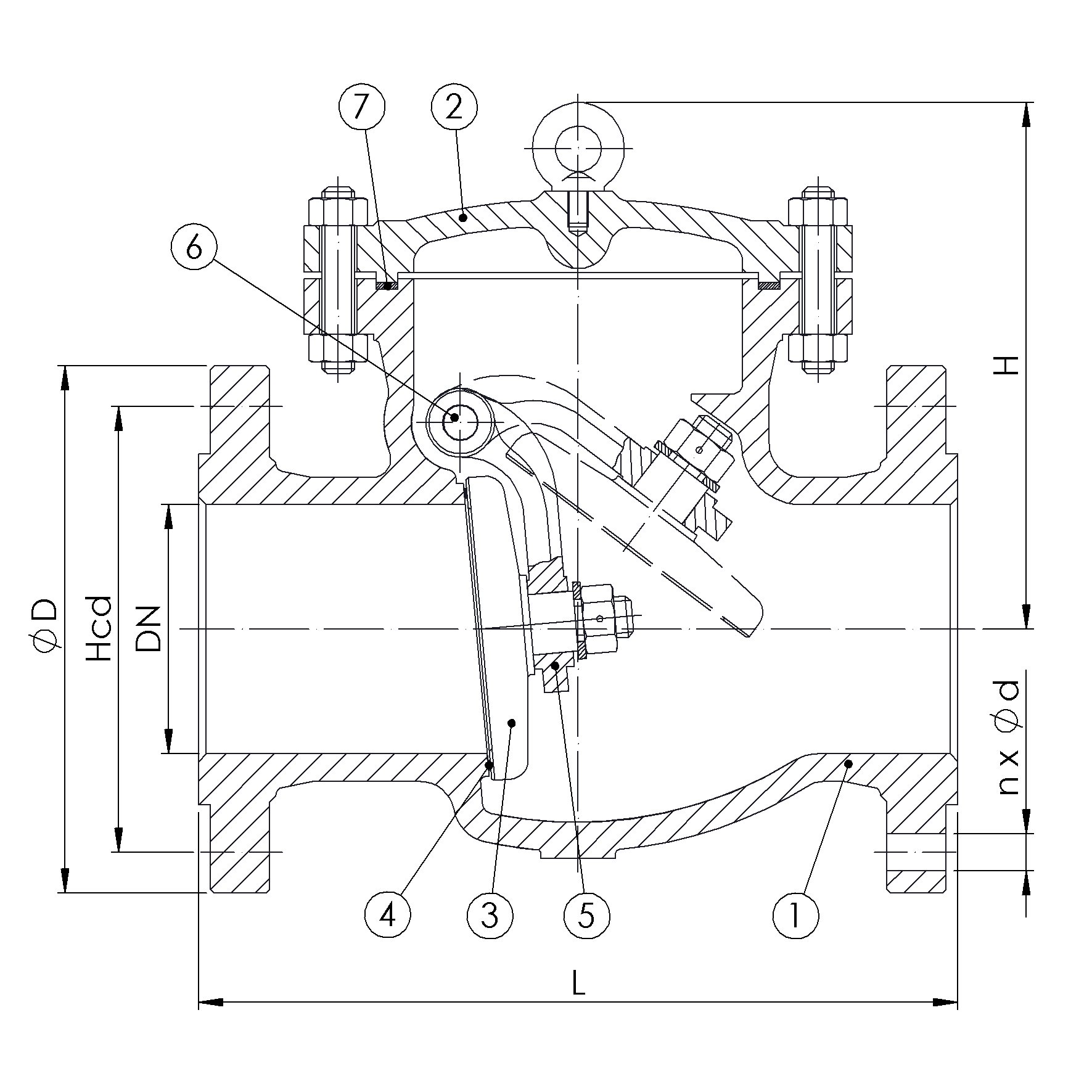

Partslist and details
No Part Material Code
1 Body Cast Steel ASTM A216-WCB
2 Bonnet Cast Steel ASTM A216-WCB
3 Disc Cast Steel ASTM A216-WCB
4 Seat Stainless Steel Deposited 13Cr
5 Hinge Cast Steel ASTM A216-WCB
6 Hinge pin Stainless Steel ASTM A276-420
7 Gasket Graphite

DN Pressure Rating Id nxdd Hcd Ø D L Kg H
300 16 12x26 410 460 700 367 390
