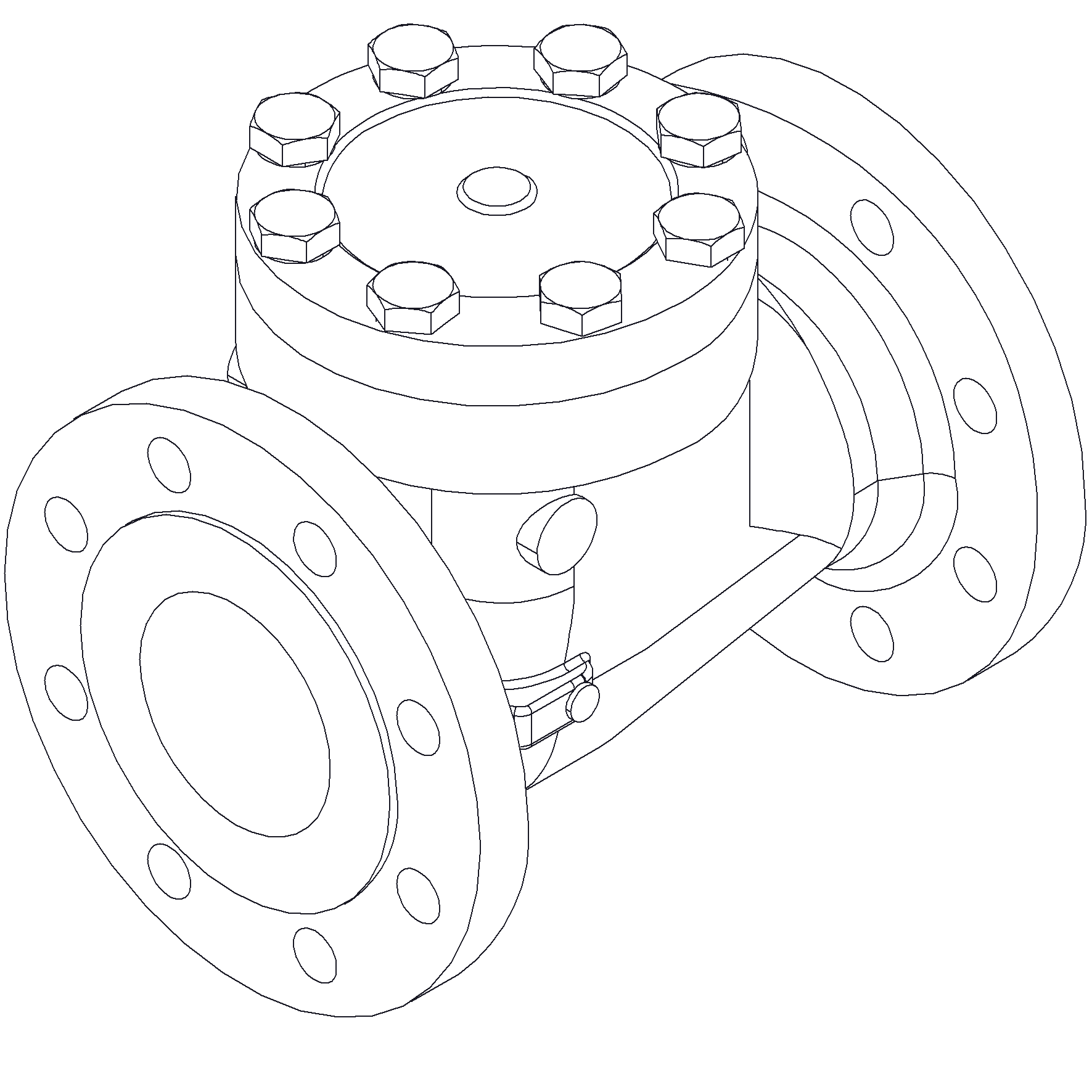

Swing check Valve DN150 PN10

Item No.
M40203
Details
Nodular Cast Iron body, full bore swing check valve with NBR soft sealing. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 370202
Material Body Nodular Cast Iron, GGG40.3
Min temperature -10°C
Remark Connection: PN10
Throughput Direction Straight
Face To Face Standard EN 558, series 48
End Standard EN 1092-2
Design Code DIN 3232
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size 150
Material Seat NBR
Material Disc Stainless Steel, 304
Pressure Rating PN10
End Type Flanged
Sub Category CHECK
Item Number M40203
Category Valve
Execution Full Bore
Max temperature +120°C

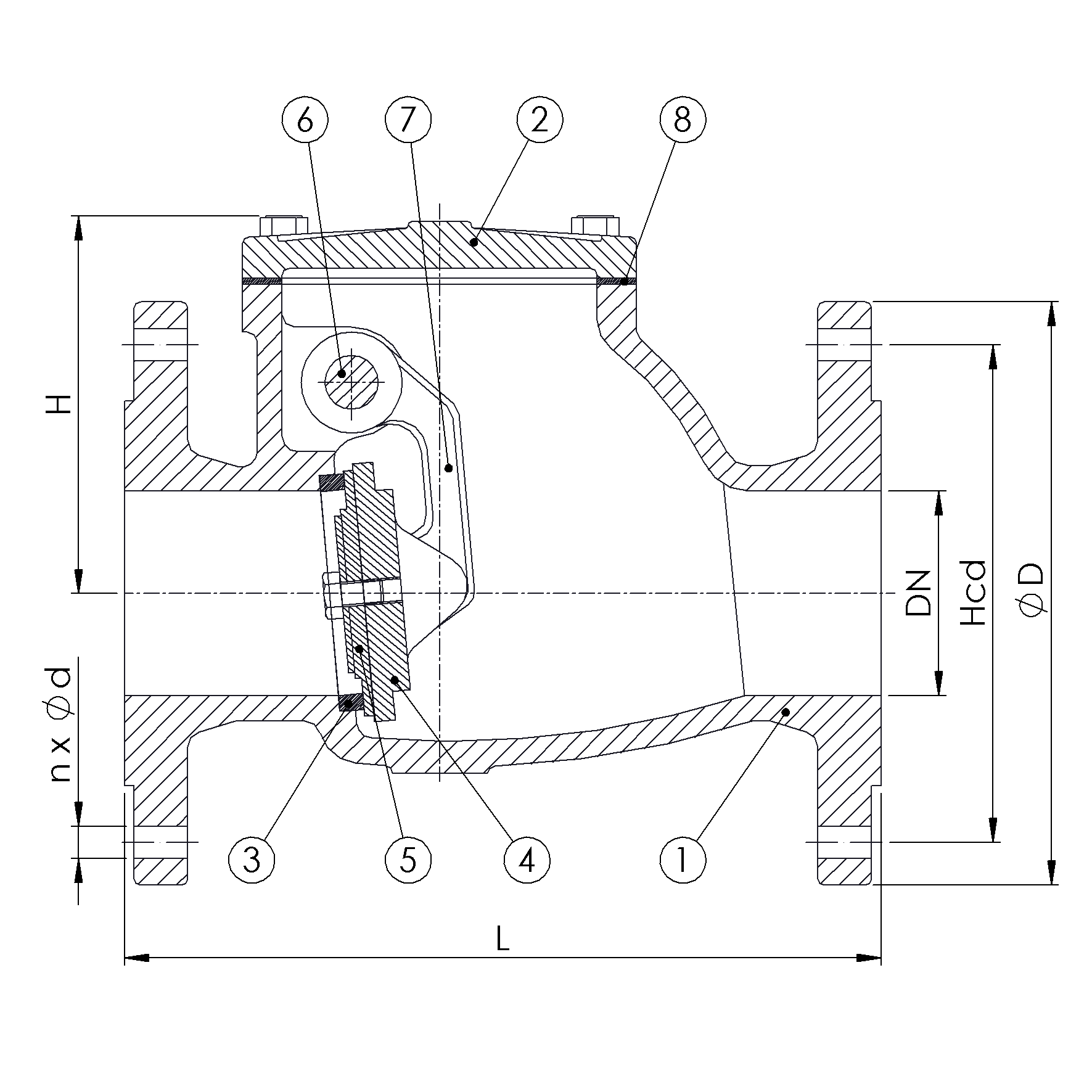

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Bonnet Nodular Cast Iron GGG40.3
3 Body seat Stainless Steel 1.4301
4 Disc Nodular Cast Iron GGG40.3
5 Disc sealing NBR
6 Stem Brass CW 614N
7 Hinge arm Nodular Cast Iron GGG40.3
8 Bonnet gasket Asbestos Free


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H
150 16 8x22 240 285 400 55 185
