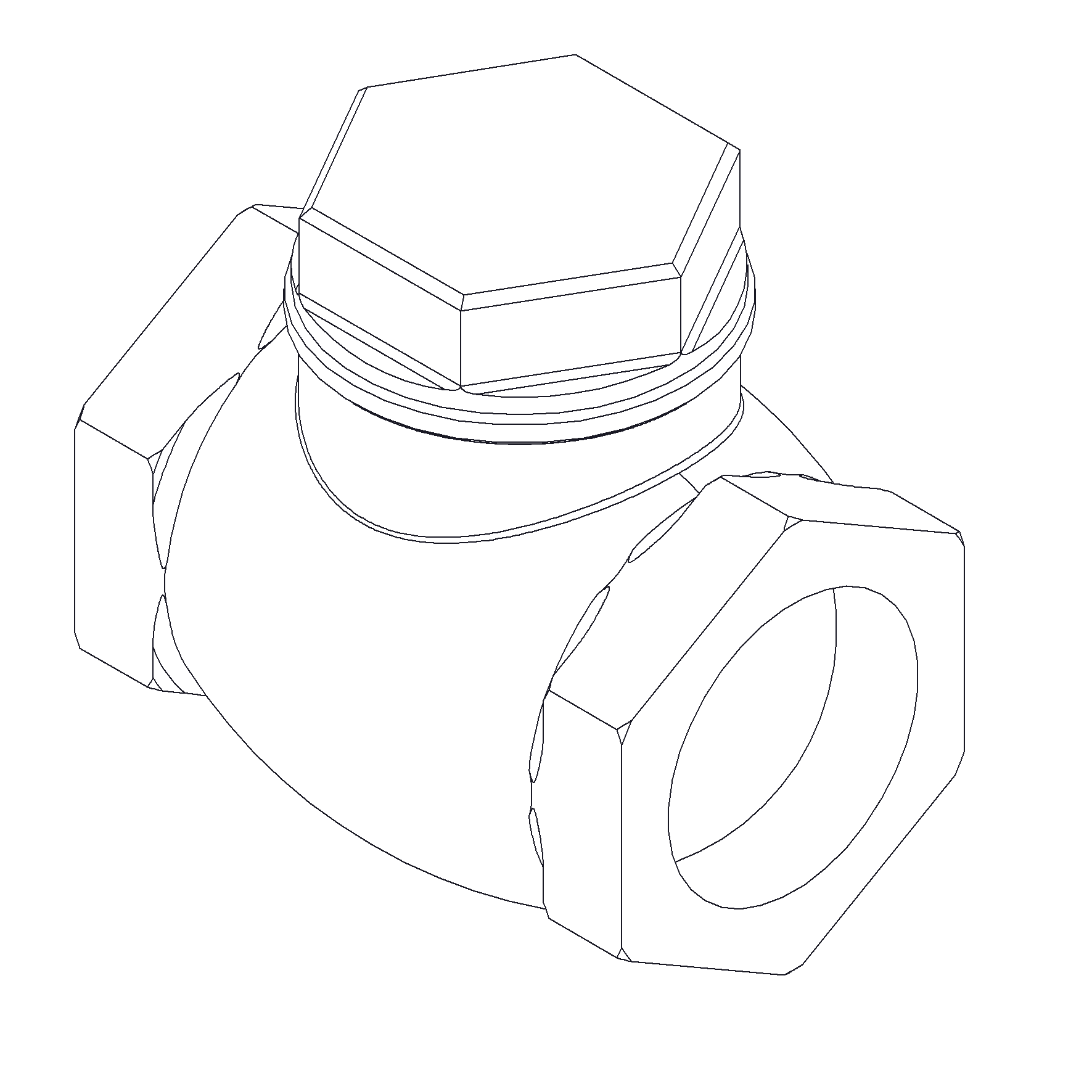

Swing Check Valve 2½" PN16
Details
RG5 body swing check valve with PTFE soft sealing. Screwed cover. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 304222 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 65 |
| Material Seat | PTFE |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | CHECK |
| Item Number | 60-00000014 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Max temperature | +180°C |

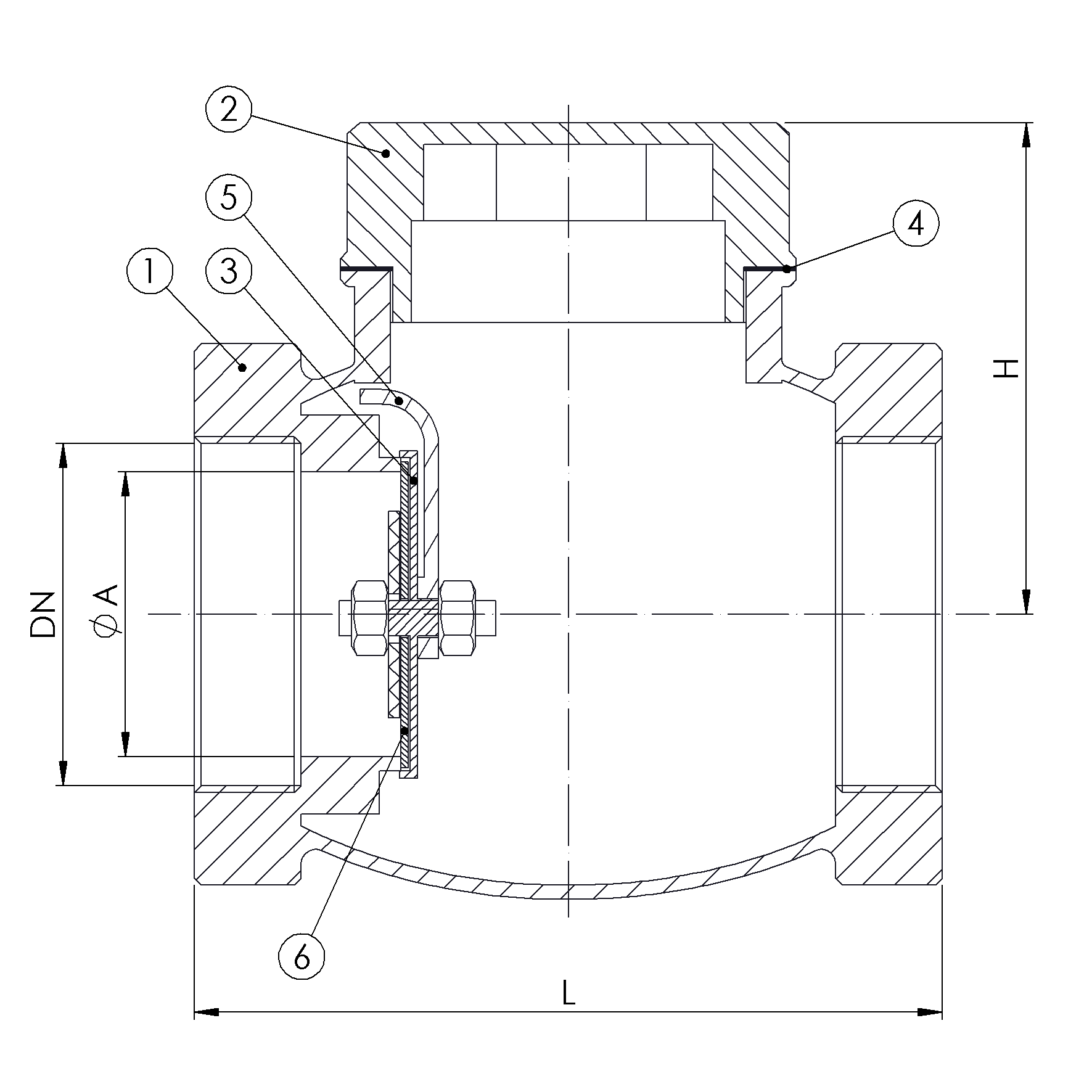

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Cap | Brass | CW 614N |
| 3 | Disc | Brass | CW 614N |
| 4 | Gasket | Asbestos Free | SIL C4400 |
| 5 | Swing | Brass | CW 614N |
| 6 | Seal | PTFE |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø A |
|---|---|---|---|---|---|---|
| 65 | 16 | 160 | 4.6 | 2-1/2" | 94 | 60 |
