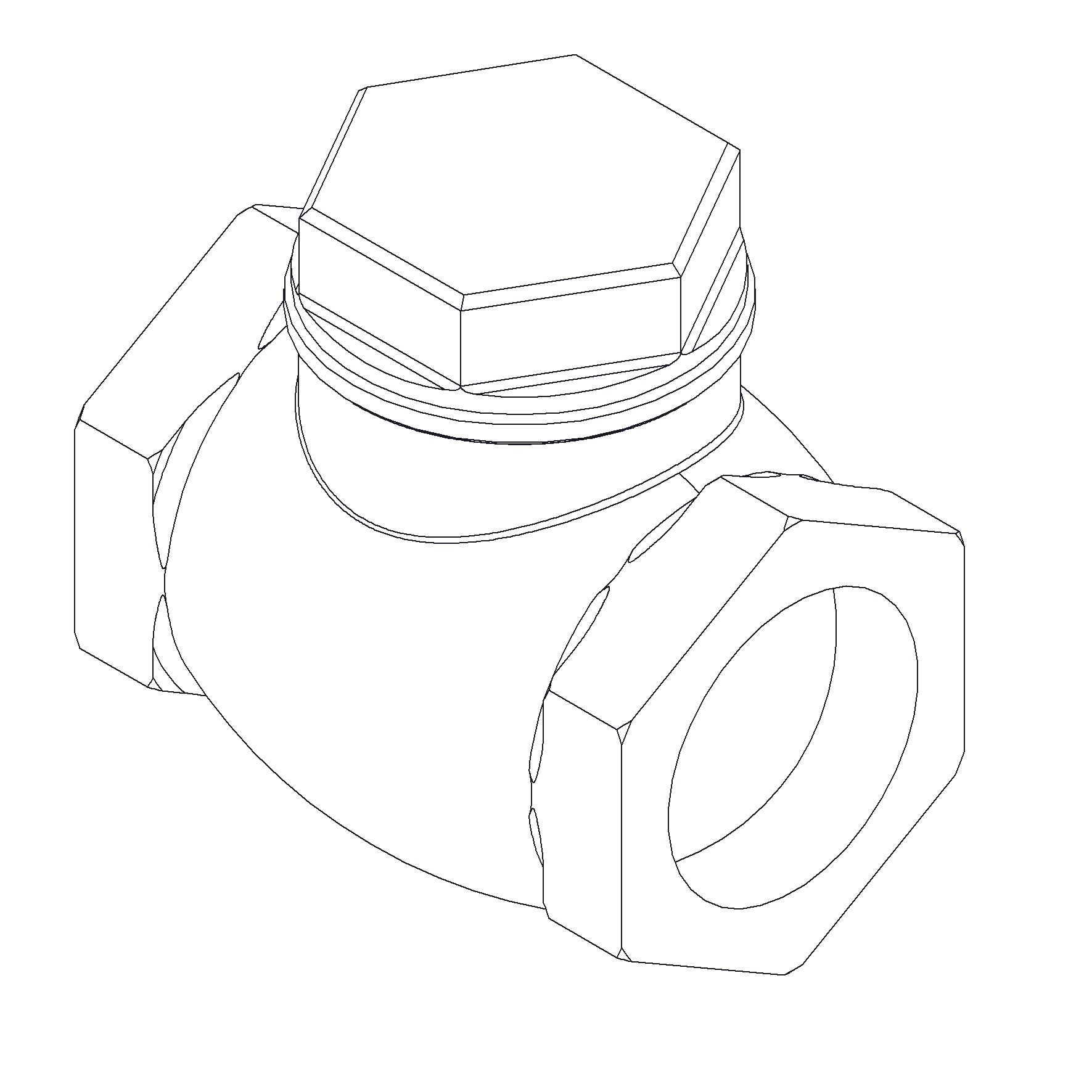

Swing Check Valve 1" PN16
Details
RG5 body swing check valve with PTFE soft sealing. Screwed cover. BSPP female threaded ends.
More Information
Price View | Price Range |
---|---|
Product Group | 304222 |
Material Body | Bronze |
Min temperature | -10°C |
Throughput Direction | Straight |
End Standard | ISO 228-1 |
Standard | DIN |
Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
Size | 25 |
Material Seat | PTFE |
Material Disc | Brass |
Pressure Rating | PN16 |
End Type | Threaded |
Sub Category | CHECK |
Item Number | 60-00000009 |
Category | Valve |
Inspection Standard | EN 12266 |
Max temperature | +180°C |

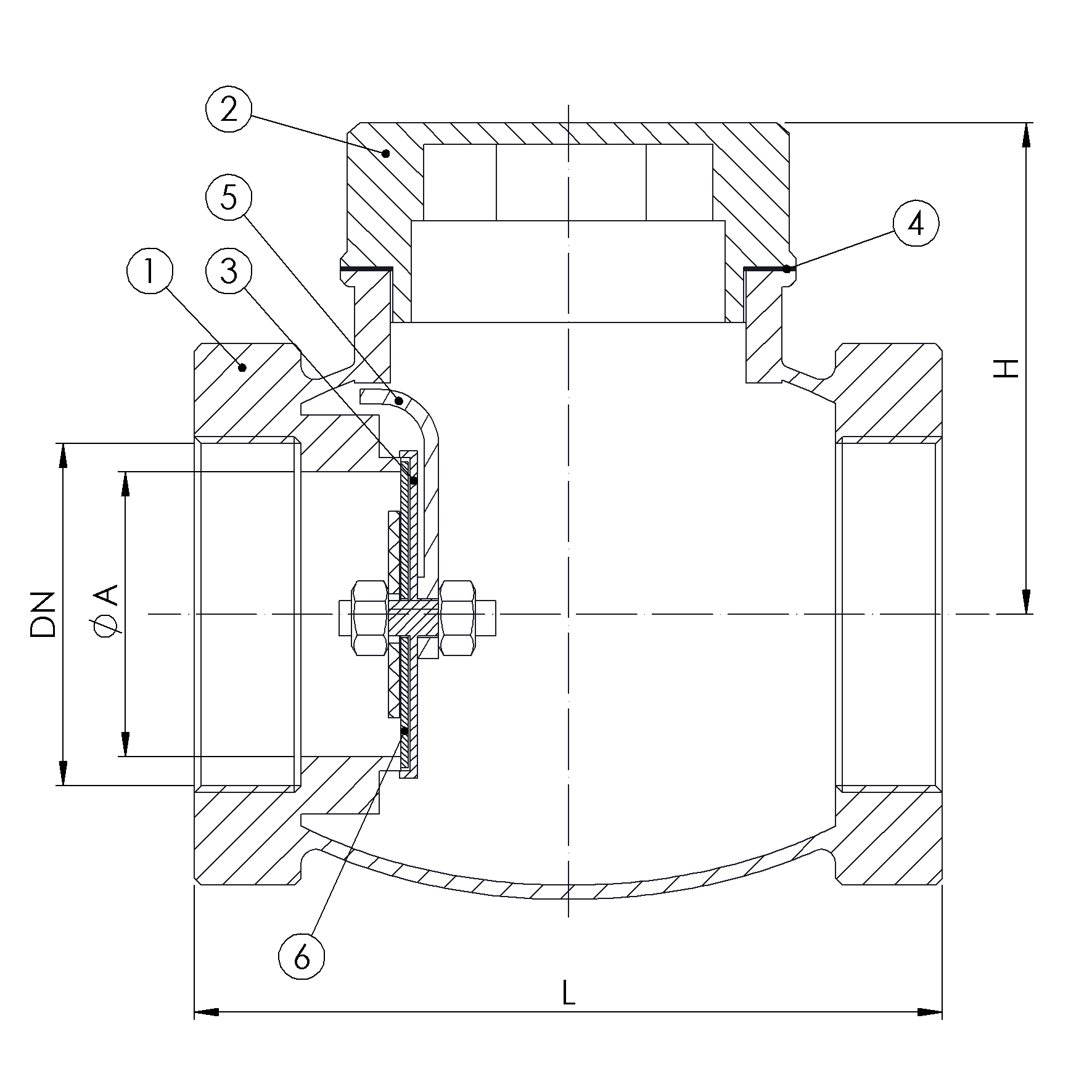

Partslist and details
PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Bronze | CC 491K |
2 | Cap | Brass | CW 614N |
3 | Disc | Brass | CW 614N |
4 | Gasket | Asbestos Free | SIL C4400 |
5 | Swing | Brass | CW 614N |
6 | Seal | PTFE |
DETAILS
DN | Pressure Rating Id | L | Kg | Inch | H | Ø A |
---|---|---|---|---|---|---|
25 | 16 | 80 | 0.8 | 1" | 55 | 22 |
