Swing Check Valve 1 ¼" 200WOG

Item No.
60-00000026
Details
Stainless Steel body swing check valve with metal sealing. Screwed cover. BSPP female threaded ends.
More Information
More Information
Price View Price Range
Product Group 304291
Material Body Stainless Steel, 316
Throughput Direction Straight
End Standard ISO 228-1
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 32
Material Disc Stainless Steel, 316
Pressure Rating 200WOG
End Type Threaded
Sub Category CHECK
Item Number 60-00000026
Category Valve
Partslist and details

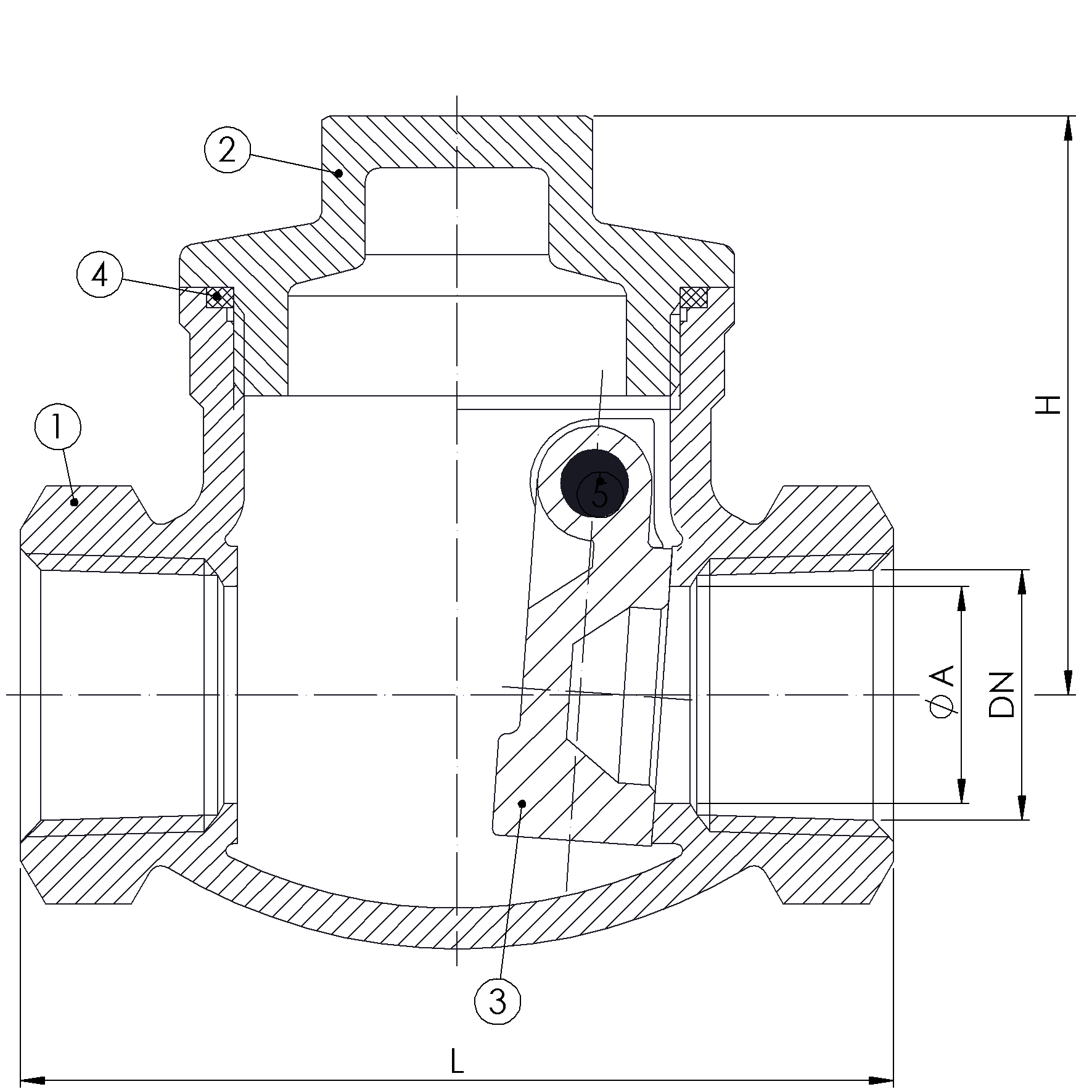

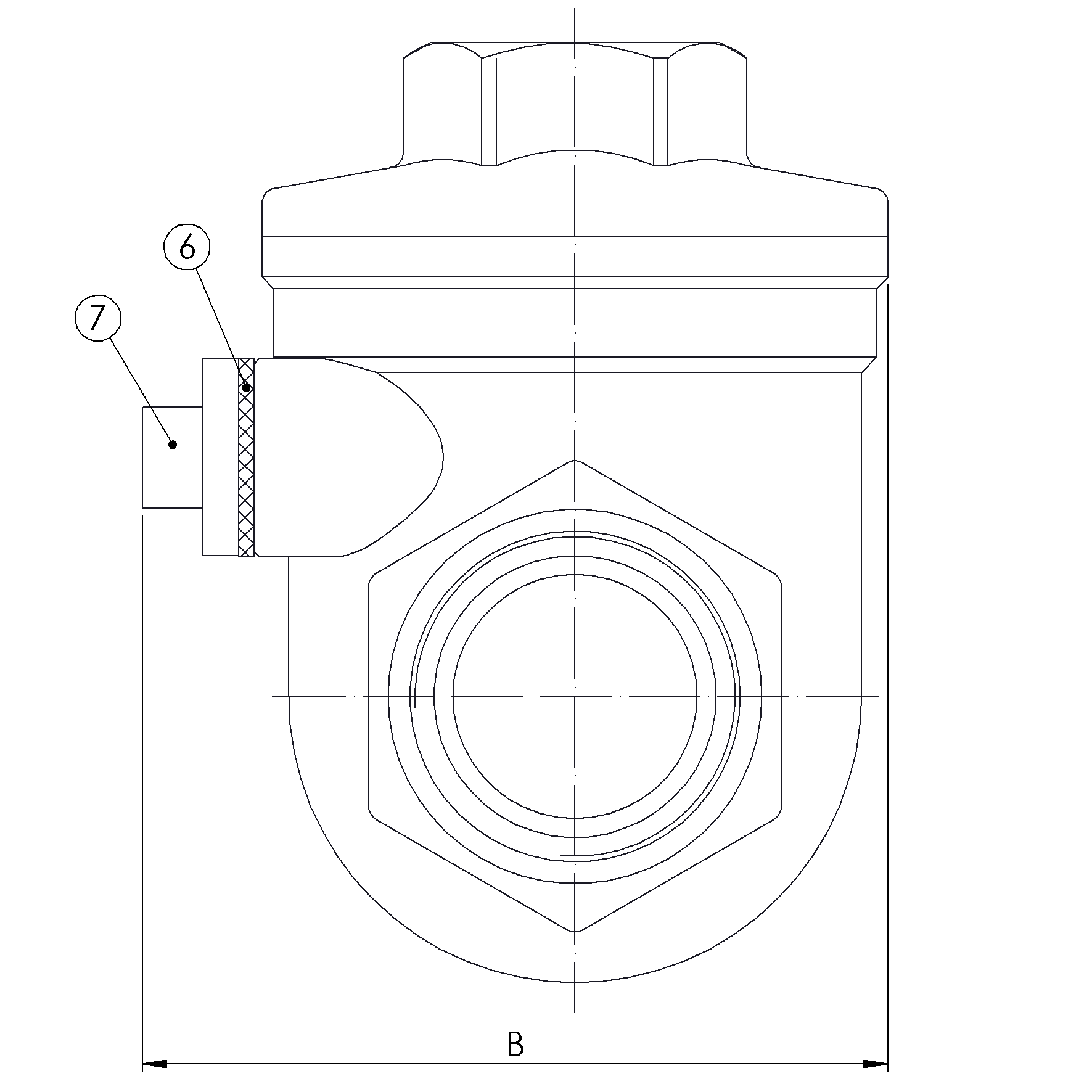

PARTSLIST
No Part Material Code
1 Body Stainless Steel CF8M
2 Cap Stainless Steel CF8M
3 Disc Stainless Steel CF8M
4 Gasket PTFE
5 Plug Stainless Steel SUS316
6 Gasket PTFE
7 Stopper Stainless Steel SUS304



DETAILS
DN Pressure Rating Id L Kg Inch H Ø A B
32 200 105 1 1 1/4" 66 32 64
