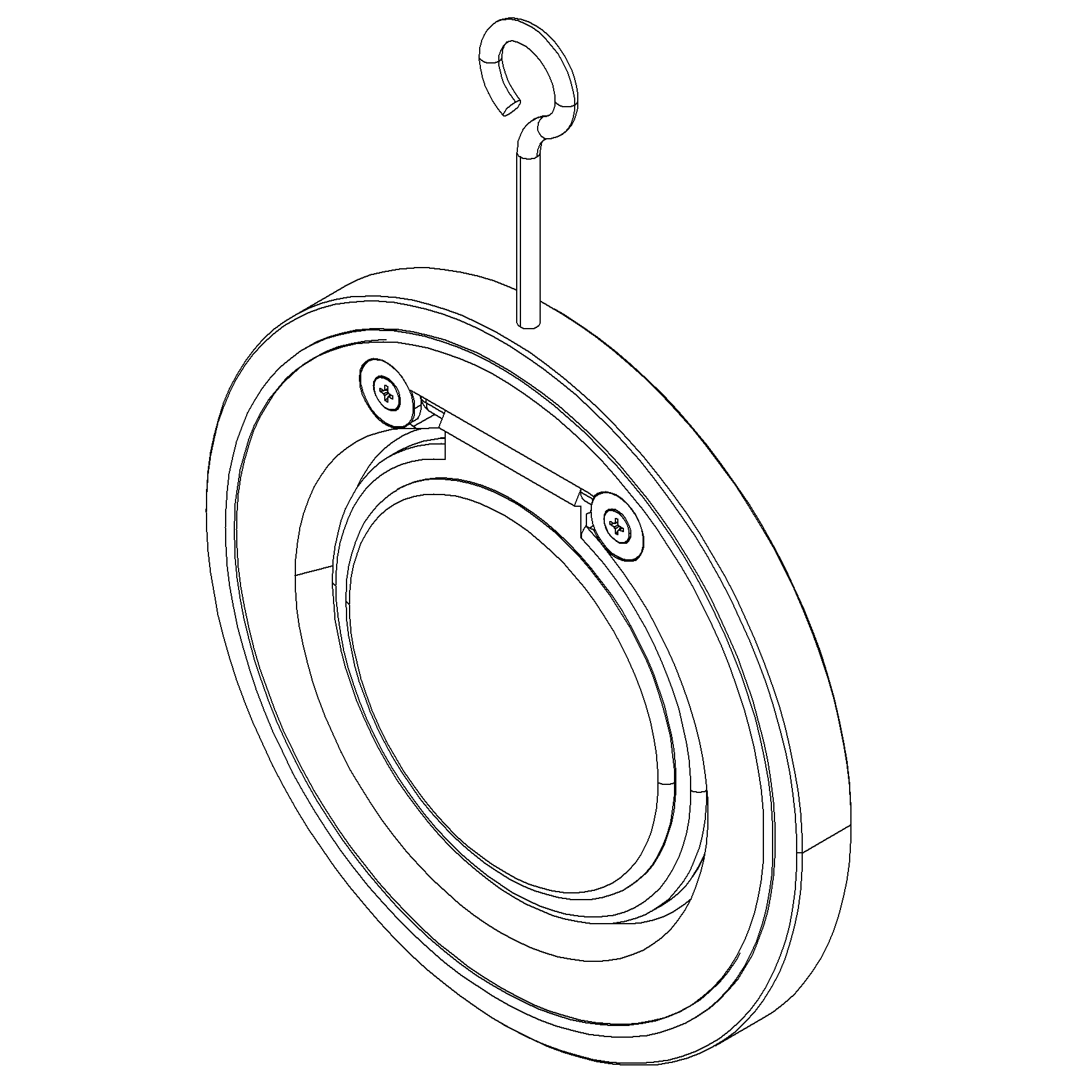

Swing check v. DN400
Details
Aluminium Bronze body, NBR sealing swing check valve with Aluminium Bronze disc.
More Information
Price View | Price Range |
---|---|
Product Group | 305071 |
Material Body | Aluminium Bronze |
Min temperature | -15° |
Remark | Connection: PN10 |
Throughput Direction | Straight |
Standard | DIN |
Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
Size | 400 |
Material Disc | Aluminium Bronze |
Pressure Rating | PN10 |
End Type | Wafer |
Sub Category | CHECK |
Item Number | 60-00001012 |
Category | Valve |
Max temperature | +80° |
Partslist and details

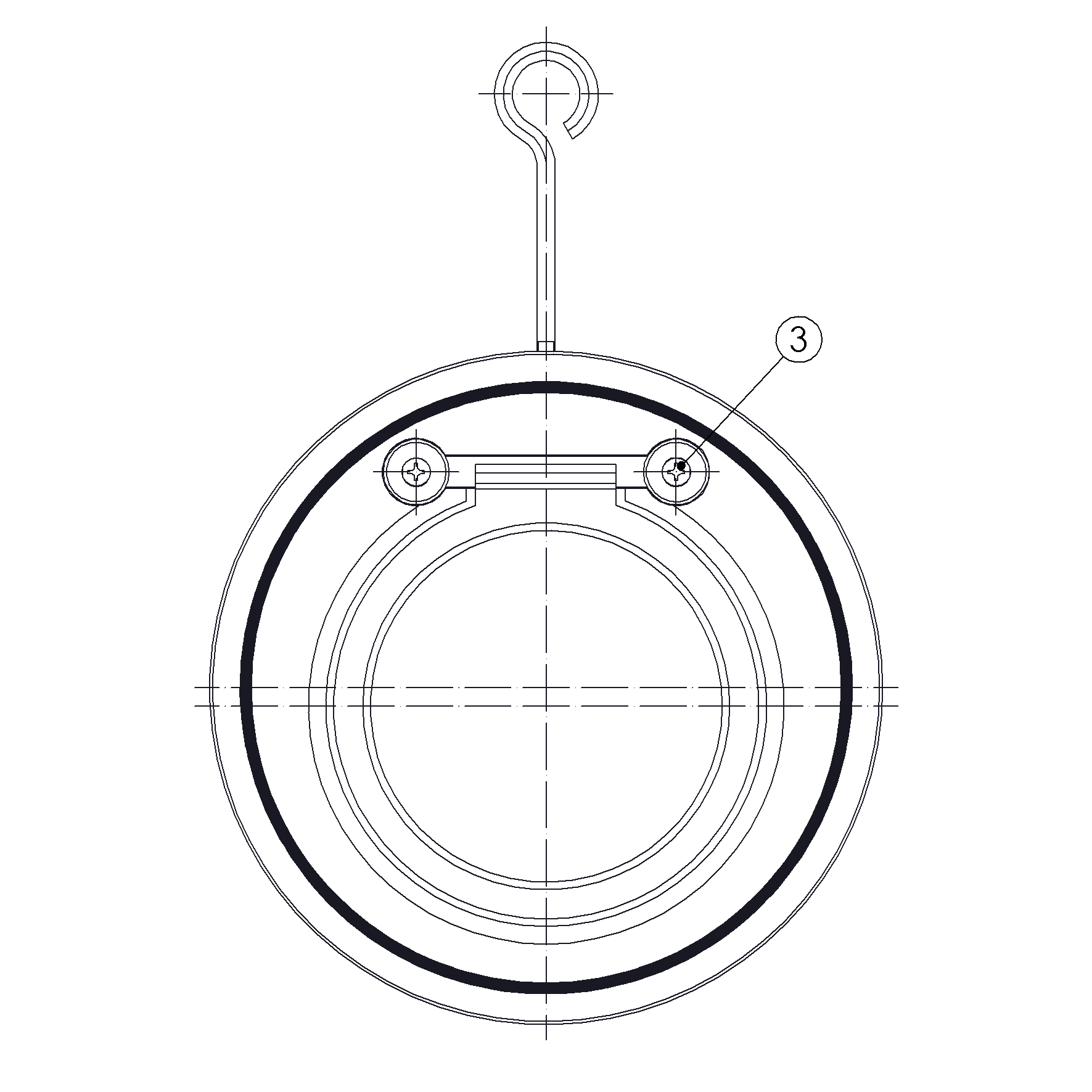

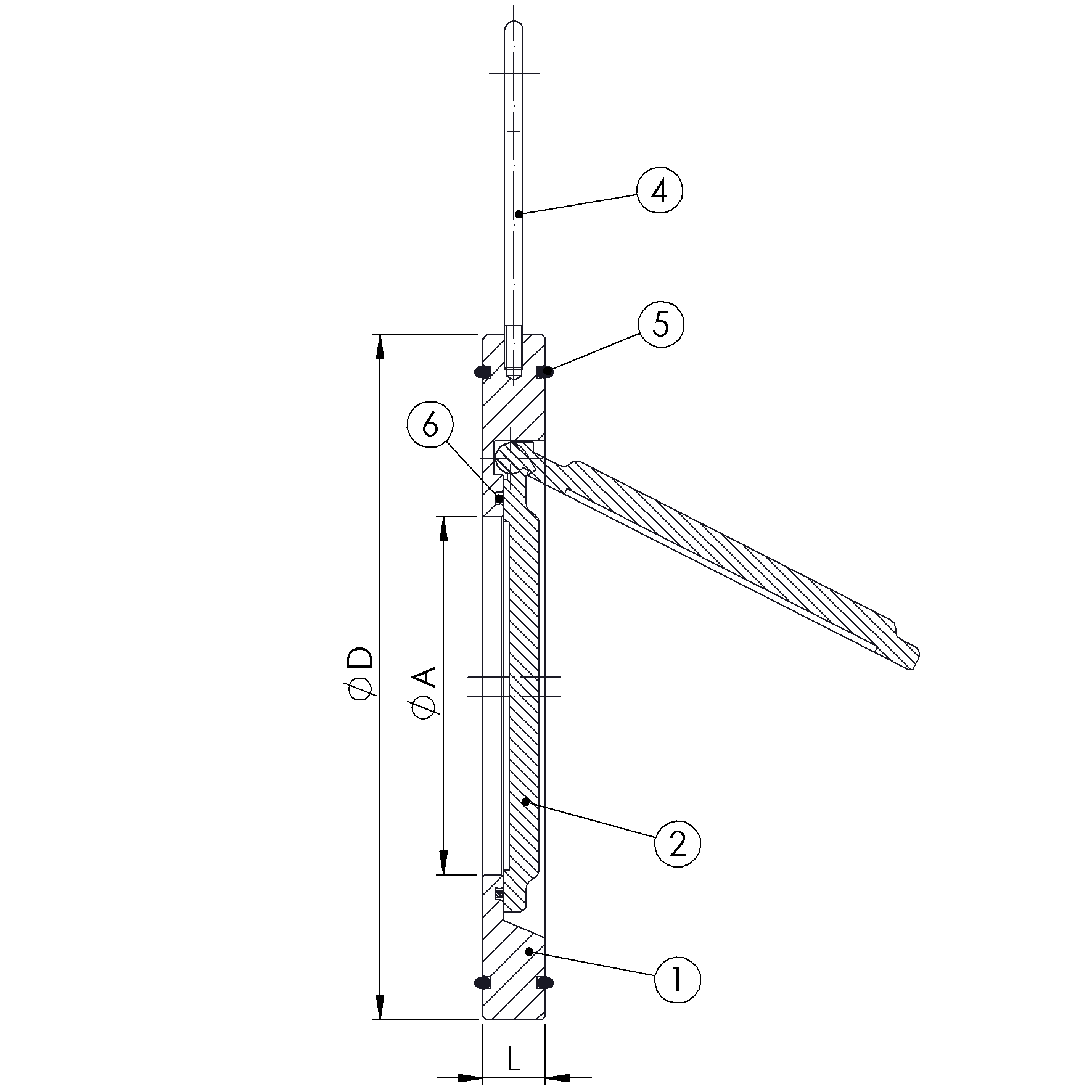

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
1 | Body | Aluminium Bronze | |
2 | Disc | Aluminium Bronze | |
3 | Bolt | Stainless Steel | SS 316 |
4 | Eye bolt | Stainless Steel | SS 316 |
5 | O-ring | NBR | |
6 | O-ring | NBR |
DETAILS
DN | Pressure Rating Id | Ø D | L | Kg | Ø A |
---|---|---|---|---|---|
400 | 10 | 493 | 44 | 46 | 311 |
