Storm Valve DN80 JIS 5K
Details

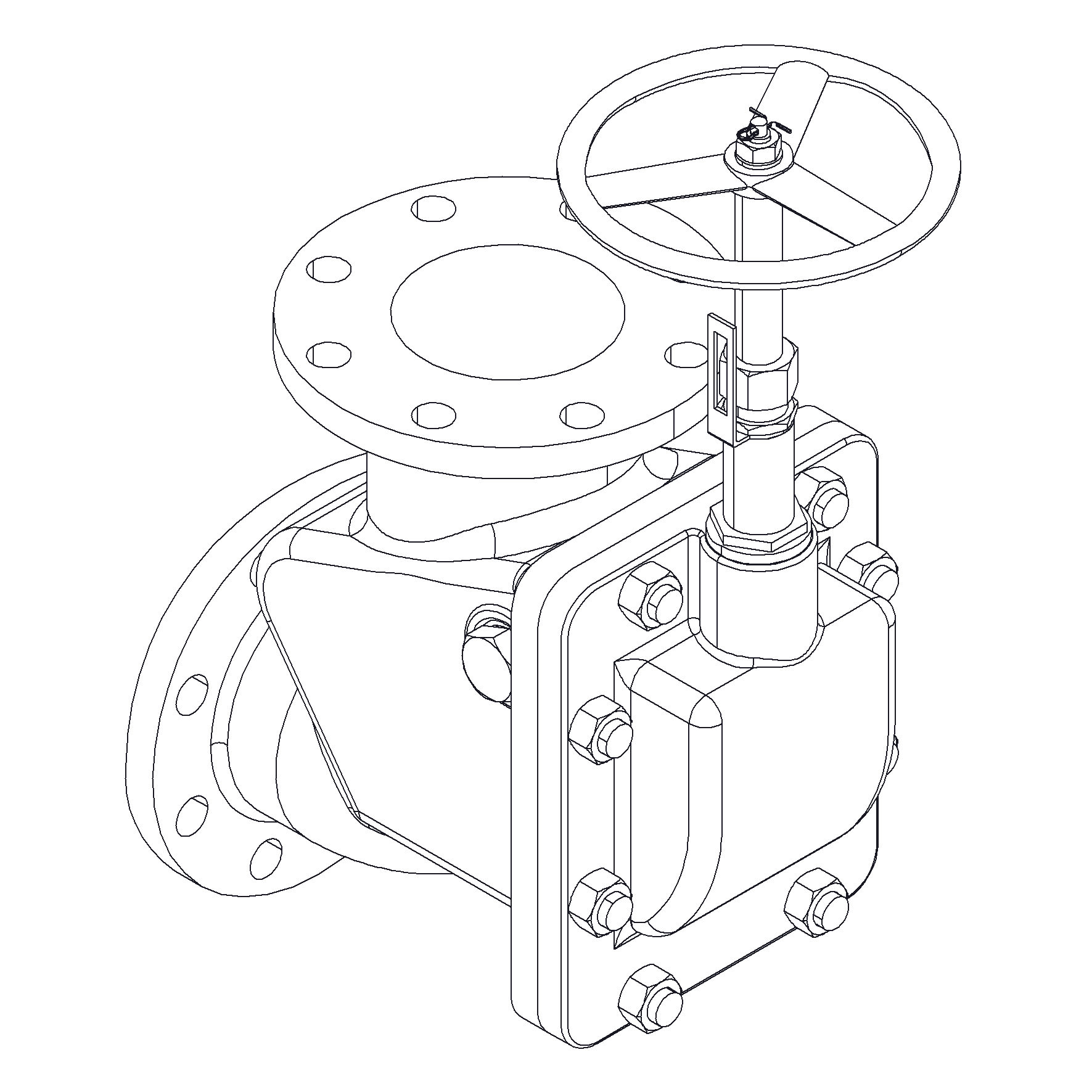

Angled type closable check valve. Cast Steel body. Soft sealing disc. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-3061 |
| Material Body | Cast Steel |
| Remark | Connection: JIS 5K |
| Throughput Direction | Angled |
| End Standard | JIS B2220 |
| Design Code | JIS F3060R |
| Standard | JIS |
| Application | Sea water, Water |
| Size | 80 |
| Material Seat | EPDM |
| Material Disc | Brass |
| Pressure Rating | JIS 5K |
| End Type | Flanged |
| Sub Category | STORM |
| Item Number | 280-00000116 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ZG230-450 |
| 2 | Bonnet | Cast Steel | ZG230-450 |
| 3 | Gland | Brass | H62 |
| 4 | Stem | Stainless Steel | 2Cr13 |
| 5 | Disc | Brass | H62 |
| 6 | Disc sealing | EPDM | |
| 7 | Disc arm | Brass | H62 |
| 8 | Counterweight | Lead | Pb |
| 9 | Stem box | Brass | H62 |
| 10 | Gland nut | Brass | H62 |
| 11 | Pin | Stainless Steel | 2Cr13 |
| 12 | Bonnet gasket | Graphite | |
| 13 | Handwheel | Cast Iron | FC 200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | Hmax | Kg | L1 | L2 | L3 |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 5 | 4x19 | 145 | 180 | 180 | 22.3 | 220 | 120 | 155 |
