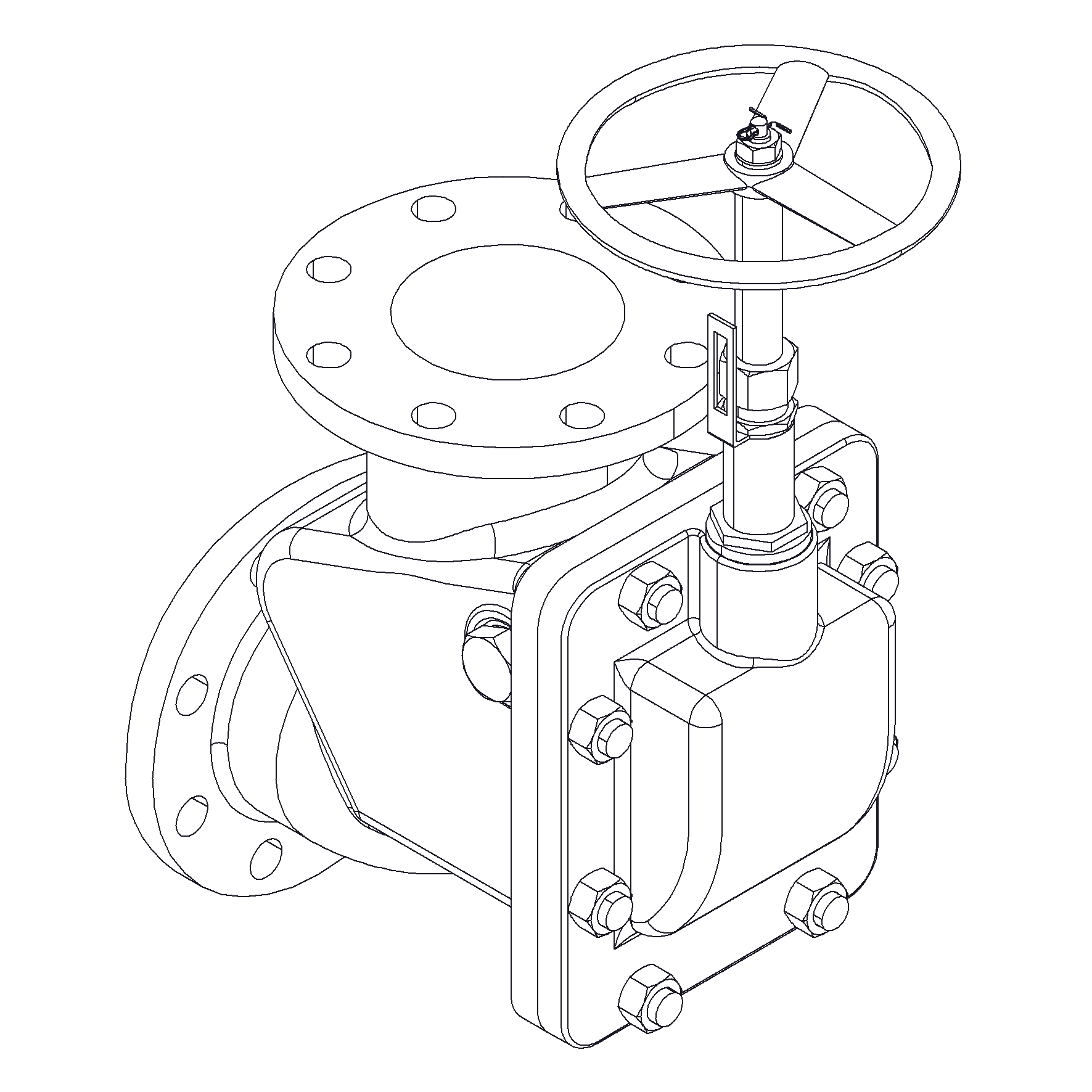

Storm Valve DN80 JIS 10K

Angled type
Item No.
280-00000117
Details
Angled type closable check valve. Cast Steel body. Soft sealing disc. Flat face flanges.
More Information
More Information
Price View Price Range
Product Group F-3061
Material Body Cast Steel
Remark Connection: JIS 10K
Throughput Direction Angled
End Standard JIS B2220
Design Code JIS F3060R
Standard JIS
Application Sea water, Water
Size 80
Material Seat EPDM
Material Disc Brass
Pressure Rating JIS 10K
End Type Flanged
Sub Category STORM
Item Number 280-00000117
Category Valve
Inspection Standard JIS F7400

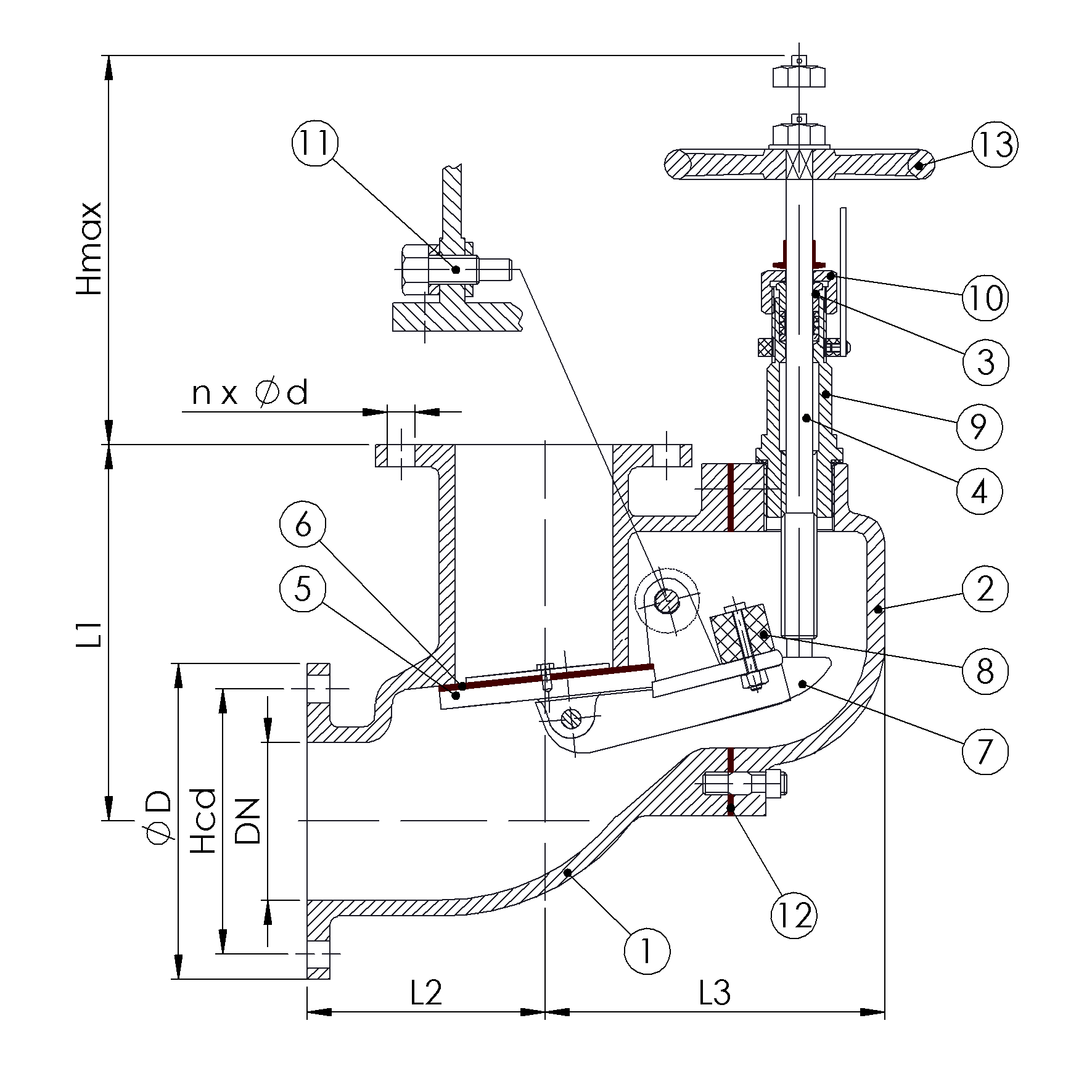

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel ZG230-450
2 Bonnet Cast Steel ZG230-450
3 Gland Brass H62
4 Stem Stainless Steel 2Cr13
5 Disc Brass H62
6 Disc sealing EPDM
7 Disc arm Brass H62
8 Counterweight Lead Pb
9 Stem box Brass H62
10 Gland nut Brass H62
11 Pin Stainless Steel 2Cr13
12 Bonnet gasket Graphite
13 Handwheel Cast Iron FC 200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D Hmax Kg L1 L2 L3
80 10 8x19 150 185 180 22.4 220 120 155
