Storm Valve DN50 PN4/PN10

Angled type
Item No.
M36501
Details
Angled type closable check valve. Nodular Cast Iron body. Soft sealing disc. Flat face flanges. Different inlet/outlet diameter.
More Information
More Information
Price View Price Range
Product Group 159301
Material Body Nodular Cast Iron, GGG40
Remark Connection: PN10
Throughput Direction Angled
Face To Face Standard DIN HNA Sr 6
End Standard EN 1092-2
Standard DIN
Application Sea water, Water
Size 50
Material Seat NBR
Material Disc Nodular Cast Iron, GGG40
Pressure Rating PN4
End Type Flanged
Sub Category STORM
Item Number M36501
Category Valve
Inspection Standard EN 12266

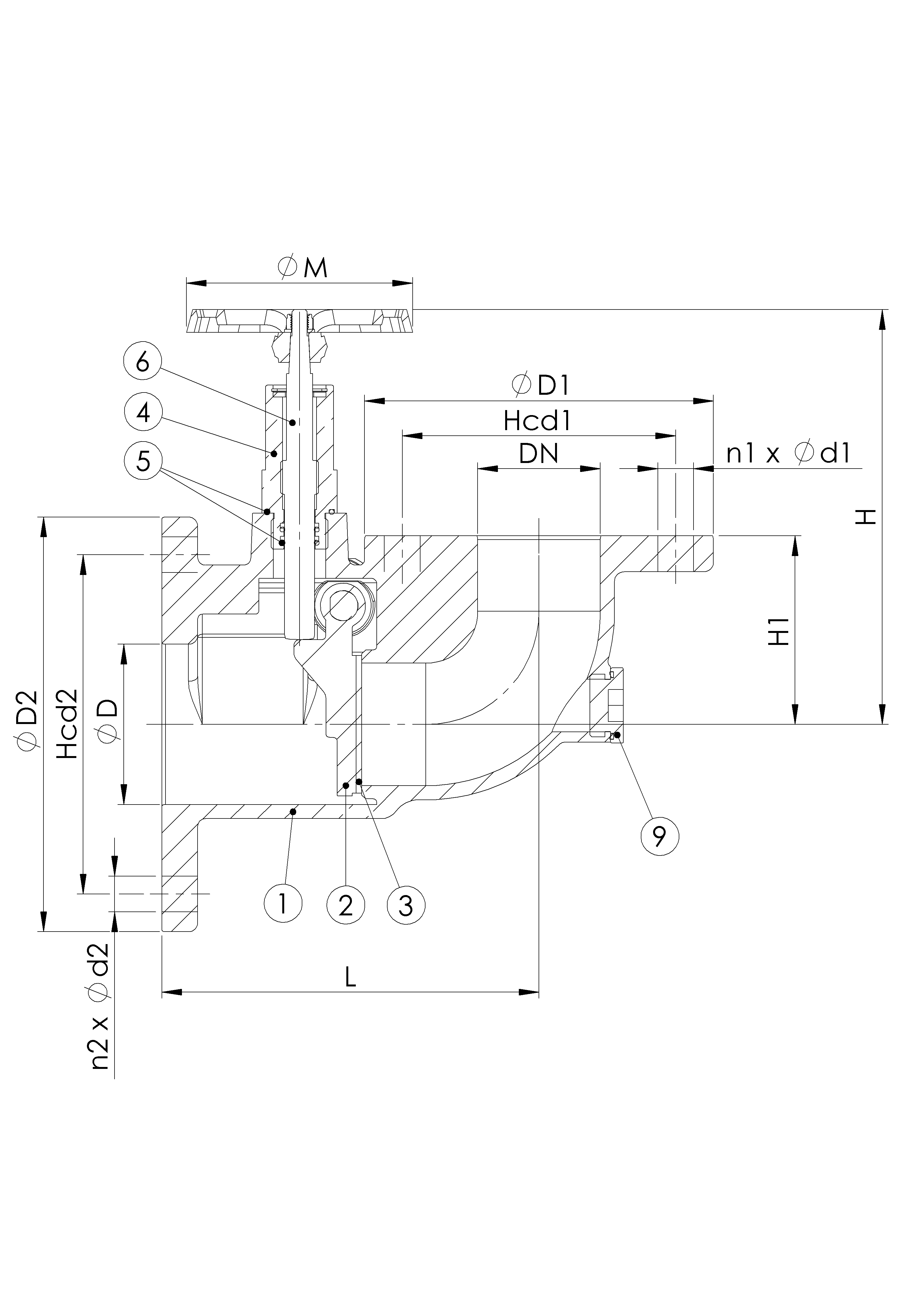

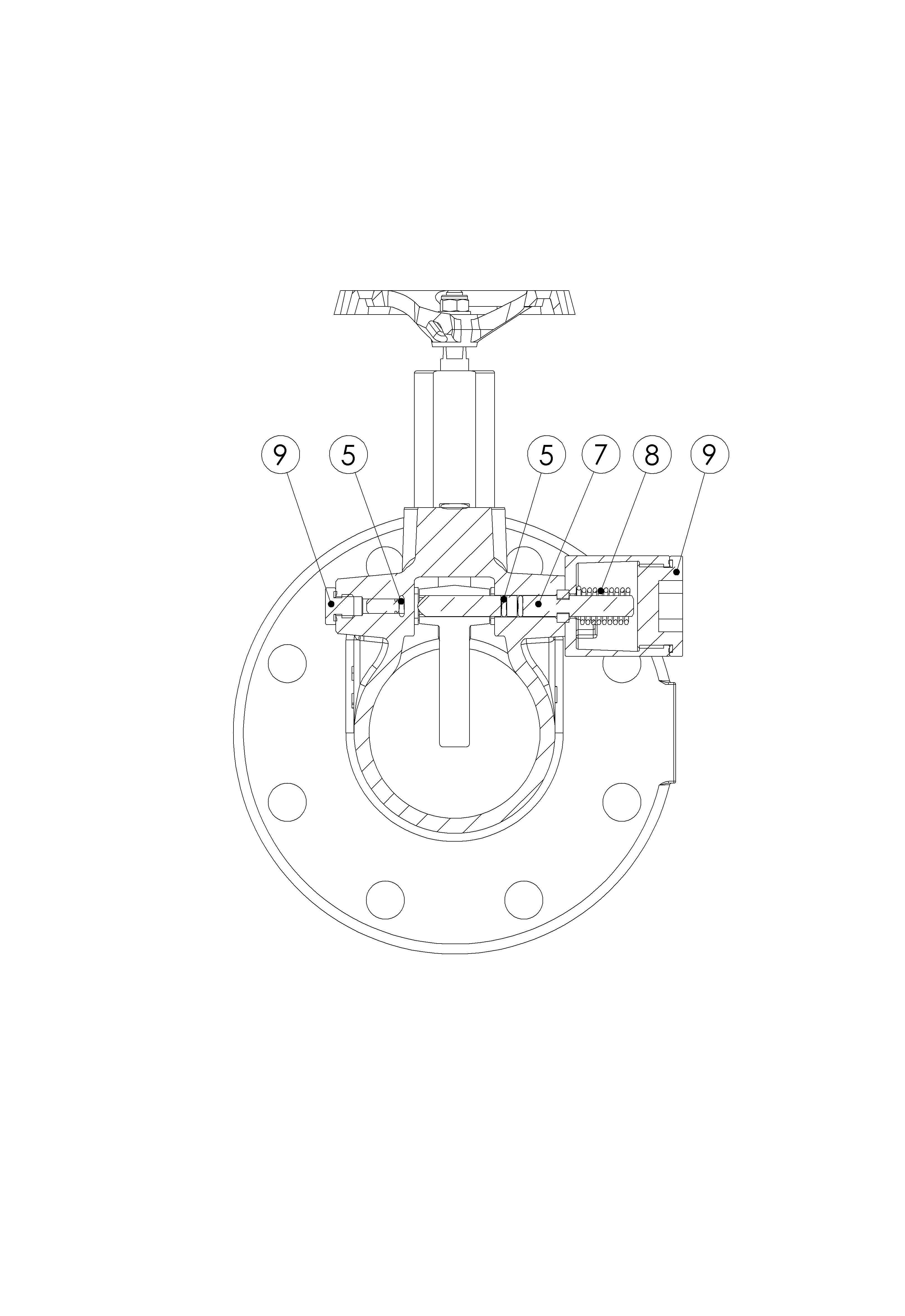

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Disc Nodular Cast Iron GGG40
3 Disc sealing NBR
4 Sleeve Brass CW 614N
5 Sealing NBR
6 Stem Brass CW 614N
7 Shaft Brass CW 614N
8 Spring Stainless Steel 1.4310
9 Plug Zinc Plated Steel



DETAILS
DN Pressure Rating Id Ø D L Kg H H1 n1xdd1 Hcd1 Ø D1 n2xdd2 Ø D2 Ø M Hcd2
50 4 68 180 11.7 247 90 4x19 125 165 8x19 200 120 160
