Storm Valve DN50 PN4/PN10

Angled type
Item No.
280-00000008
Details

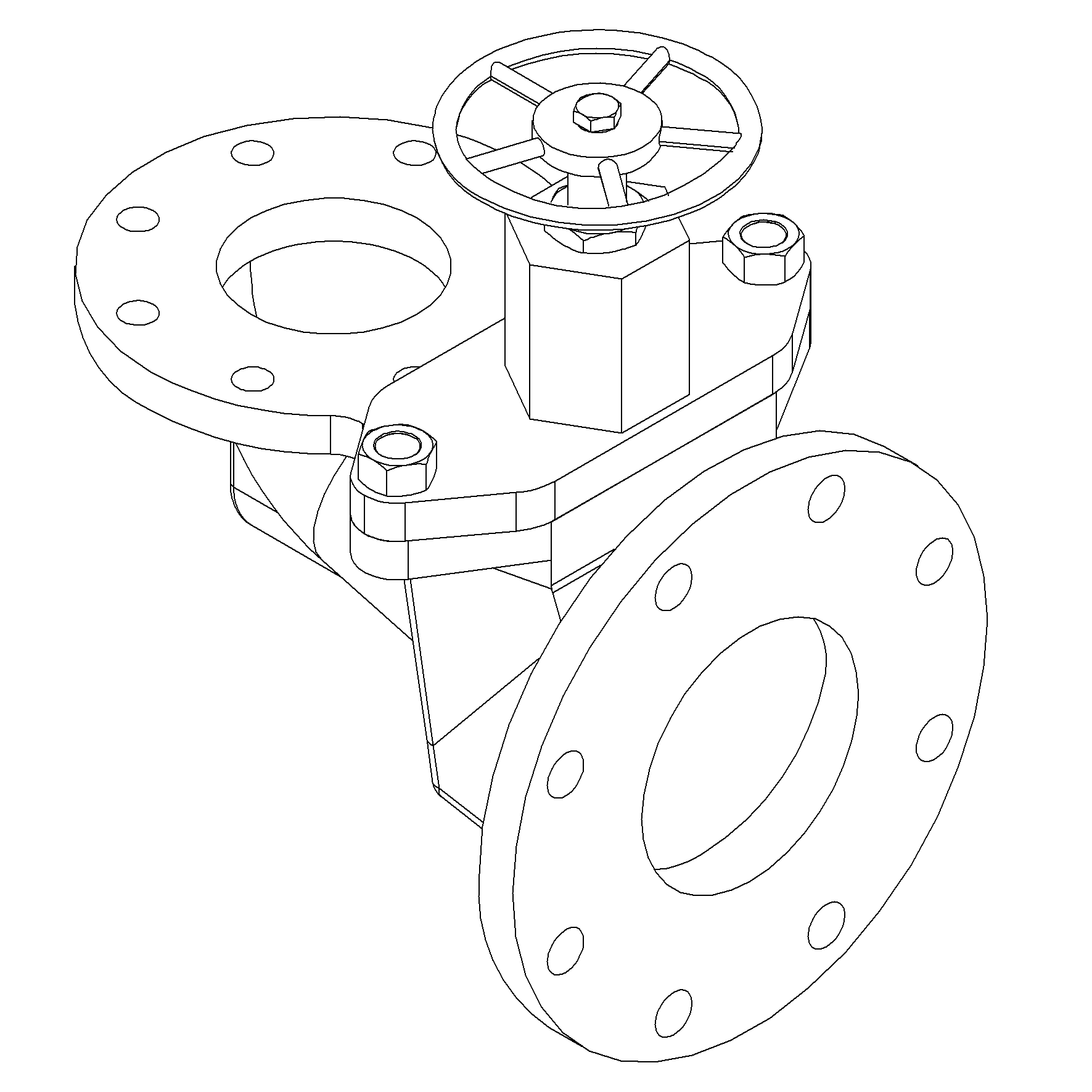

Angled type closable check valve. Bronze RG5 body. Soft sealing disc. Flat face flanges. Different inlet/outlet diameter.
More Information
More Information
Price View Price Range
Product Group 159121
Material Body Bronze
Min temperature -10°C
Remark Connection: PN10
Throughput Direction Angled
Face To Face Standard DIN HNA Sr 6
End Standard EN 1092-3
Design Code DIN HNA Sr 6 Form B
Standard DIN
Application Sea water, Water
Size 50
Material Seat NBR
Material Disc Bronze
Pressure Rating PN4
End Type Flanged
Sub Category STORM
Item Number 280-00000008
Category Valve
Max temperature +60°C

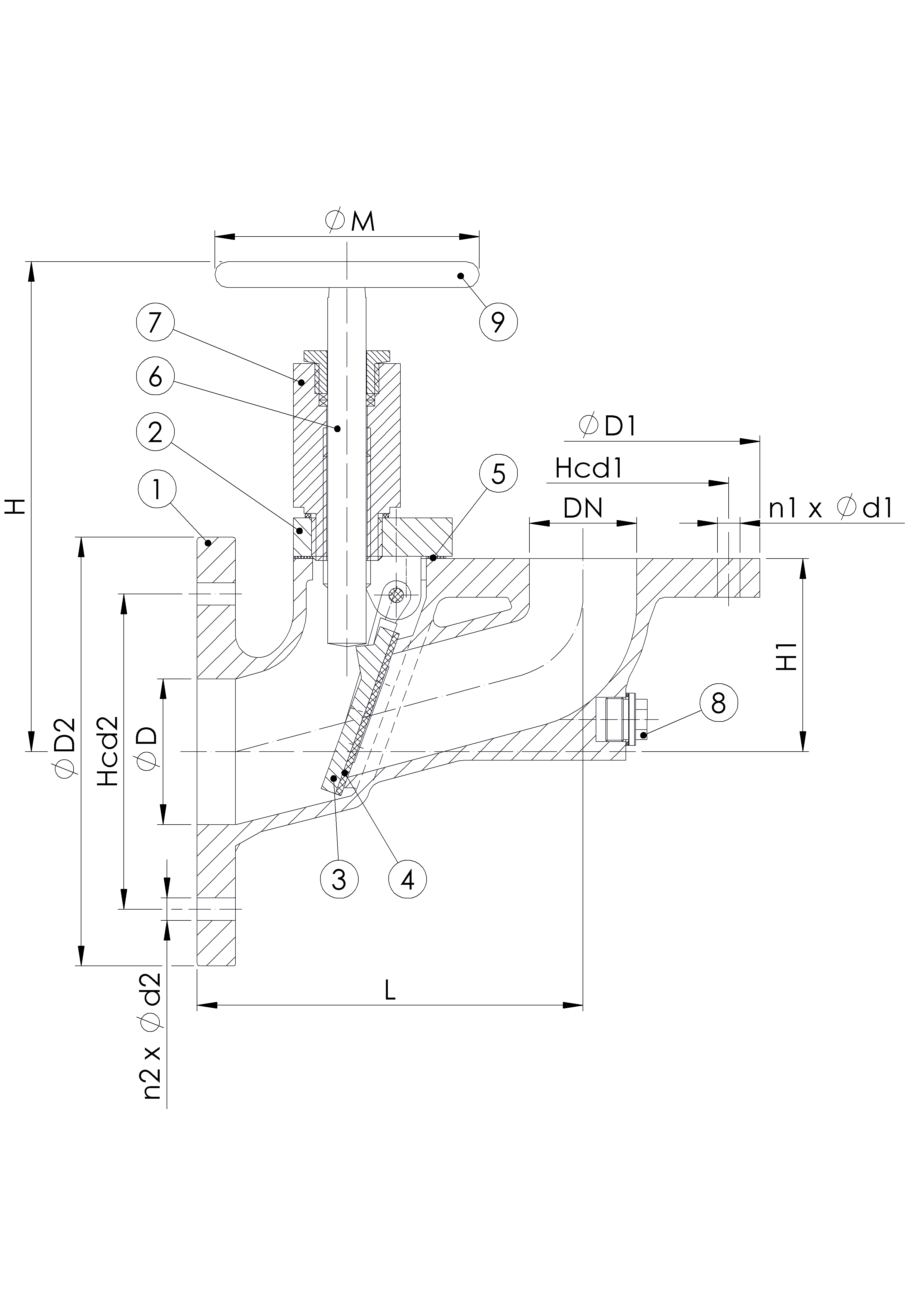

Partslist and details
PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Bronze CC 491K
3 Disc Bronze CC 491K
4 Disc sealing NBR
5 Bonnet gasket NBR
6 Stem Brass CW 614N
7 Stem nut Brass CW 614N
8 Plug Stainless Steel 1.4301
9 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id Ø D L Kg H H1 n1xdd1 Hcd1 Ø D1 n2xdd2 Ø D2 Ø M Hcd2
50 4 70 180 14 260 90 4x18 125 165 8x18 200 140 160
