Storm Valve DN125 PN4/PN10
Details
Angled type closable check valve. Nodular Cast Iron body. Soft sealing disc. Flat face flanges. Different inlet/outlet diameter.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 159301 |
| Material Body | Nodular Cast Iron, GGG40 |
| Remark | Connection: PN10 |
| Throughput Direction | Angled |
| Face To Face Standard | DIN HNA Sr 6 |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 125 |
| Material Seat | NBR |
| Material Disc | Nodular Cast Iron, GGG40 |
| Pressure Rating | PN4 |
| End Type | Flanged |
| Sub Category | STORM |
| Item Number | M36505 |
| Category | Valve |
| Inspection Standard | EN 12266 |

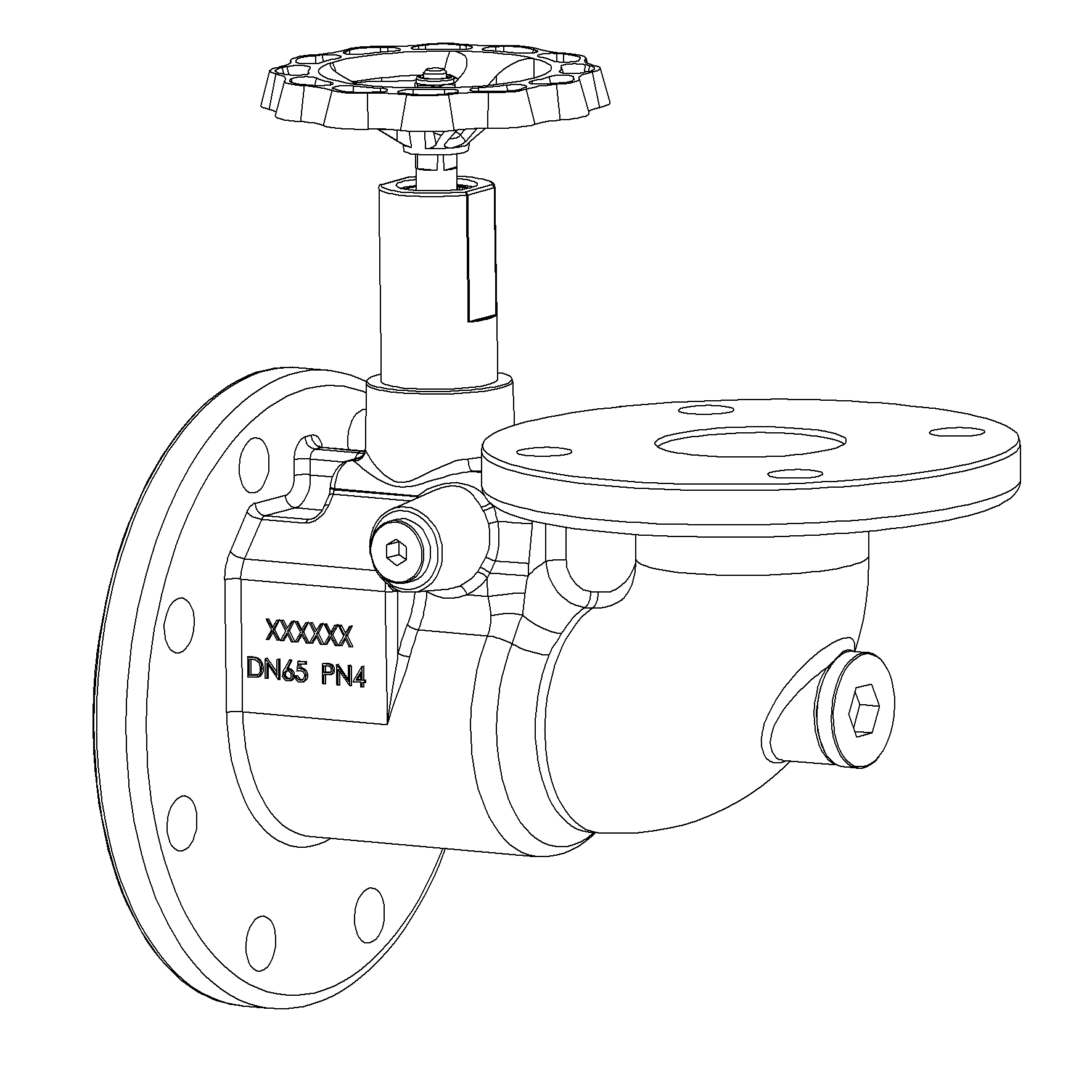

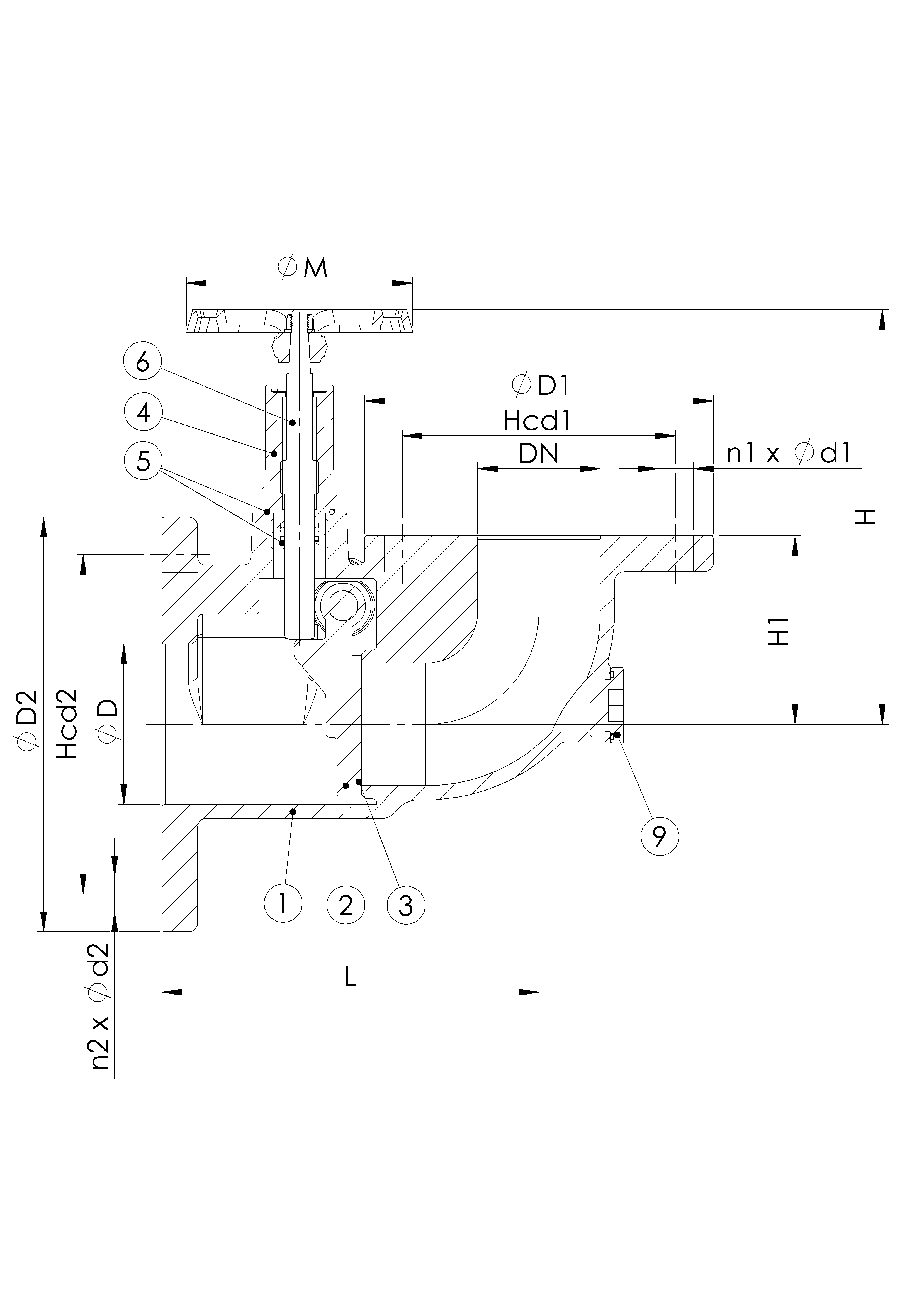

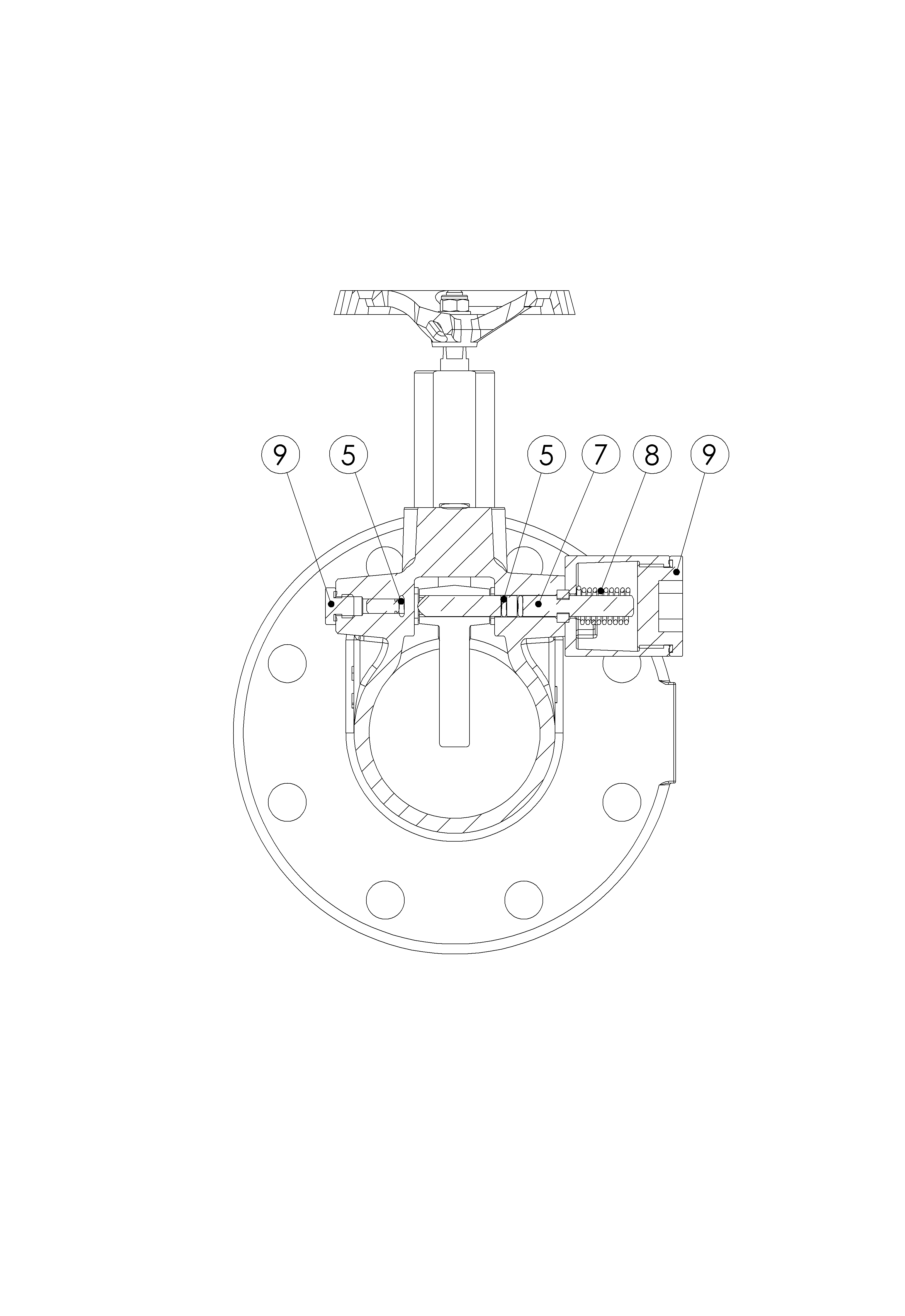

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Nodular Cast Iron | GGG40 |
| 3 | Disc sealing | NBR | |
| 4 | Sleeve | Brass | CW 614N |
| 5 | Sealing | NBR | |
| 6 | Stem | Brass | CW 614N |
| 7 | Shaft | Brass | CW 614N |
| 8 | Spring | Stainless Steel | 1.4310 |
| 9 | Plug | Zinc Plated Steel |
DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg | H | H1 | n1xdd1 | Hcd1 | Ø D1 | n2xdd2 | Ø D2 | Ø M | Hcd2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | 4 | 158 | 290 | 29.3 | 322 | 152 | 8x19 | 210 | 250 | 8x23 | 315 | 140 | 270 |
