Self Closing Valve DN40 PN16
Details

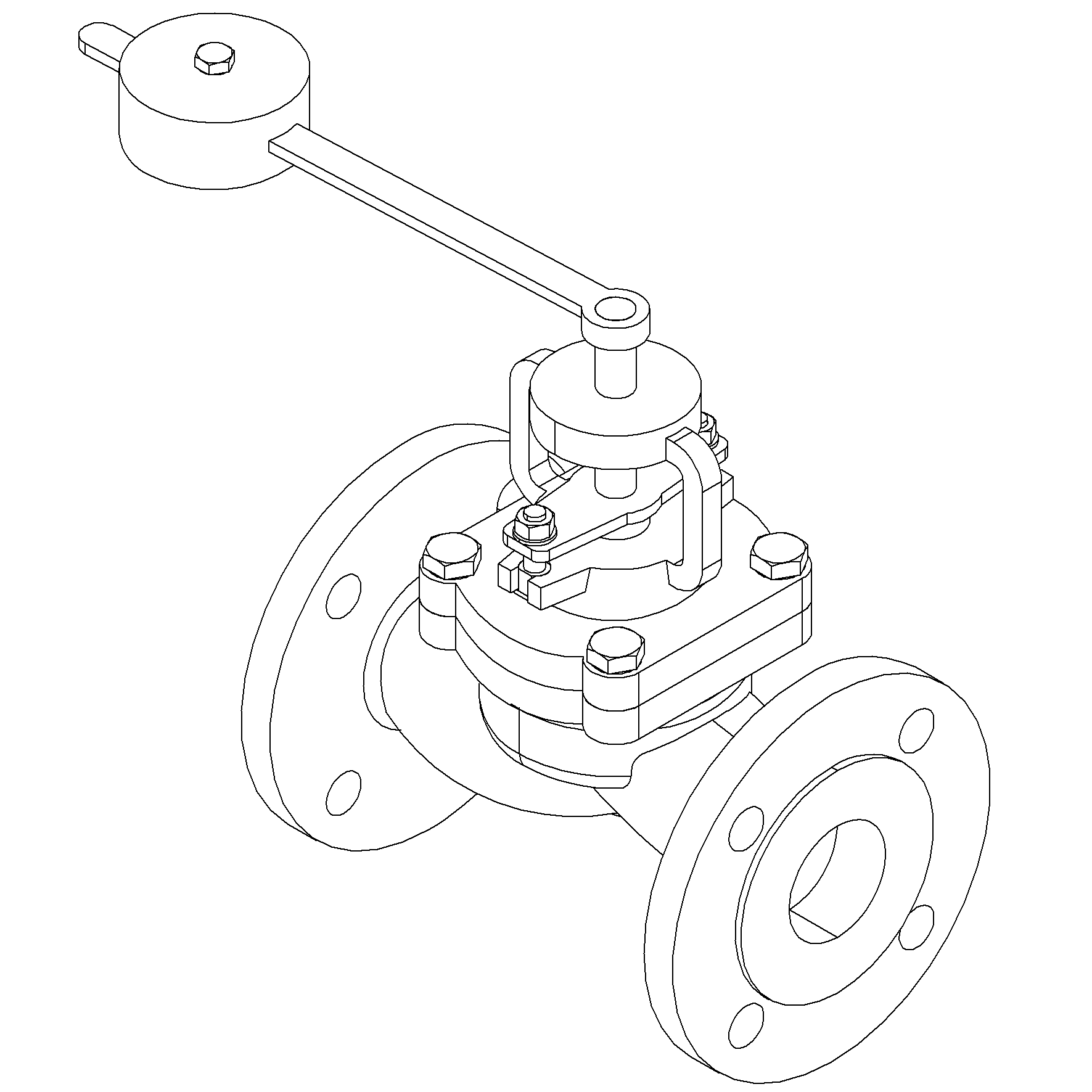

Straight type, Cast Iron, metal seated, self closing globe valve. Bolted bonnet and lever with counter weight. Raised face flanges.
More Information
Price View | Price Range |
---|---|
Product Group | 358052 |
Material Body | Cast Iron |
Min temperature | -10°C |
Remark | Connection: PN16 |
Throughput Direction | Straight |
Face To Face Standard | EN 558, series 1 |
End Standard | EN 1092-2 |
Design Code | DIN 86251 |
Standard | DIN |
Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
Size | 40 |
Material Seat | Stainless Steel, 304 |
Material Disc | Stainless Steel, 420 |
Pressure Rating | PN16 |
End Type | Flanged |
Sub Category | SELF |
Item Number | 230-00000060 |
Category | Valve |
Max temperature | +180°C |
Partslist and details

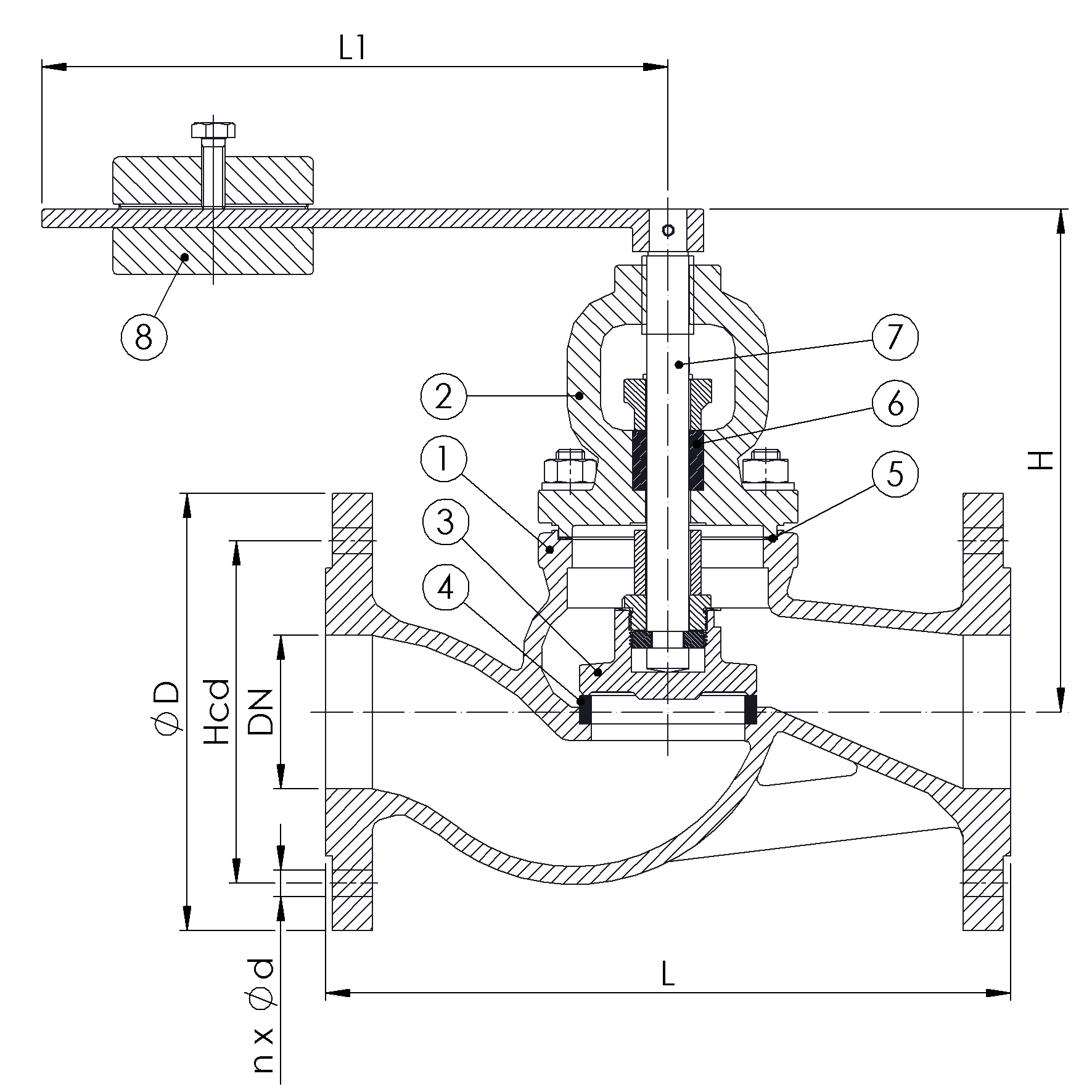

PARTSLIST
No | Part | Material | Code |
---|---|---|---|
5 | Bonnet gasket | Graphite | |
6 | Gland packing | Graphite | |
7 | Stem | Stainless Steel | 1.4021 |
8 | Lever & counter weight | Steel | St37 |
1 | Body | Cast Iron | GG25 |
2 | Bonnet | Cast Iron | GG25 |
3 | Disc | Stainless Steel | 1.4021 |
4 | Seat | Stainless Steel | 1.4301 |
DETAILS
DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H |
---|---|---|---|---|---|---|---|---|
40 | 16 | 4x18 | 110 | 150 | 200 | 13 | 295 | 210 |
