Self Closing Valve DN20 PN16
Details
Straight type, Nodular Cast Iron, metal seated, self closing globe valve. Bolted bonnet and automatic spring closing. Can be locked in closed position by the handwheel. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 921002 |
| Material Body | Nodular Cast Iron, GGG40 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | ISO 5752, series 1 |
| End Standard | ISO 7005-2 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Thermal oil, Water |
| Size | 20 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 304 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | SELF |
| Item Number | M75663 |
| Category | Valve |
| Inspection Standard | EN 12266 |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Seat ring | Stainless Steel | 1.4301 |
| 3 | Disc | Stainless Steel | 1.4301 |
| 4 | Spring | Spring Steel | 1084 ASTM A713 |
| 5 | Gasket | NBR bonded aramid | |
| 6 | Bonnet | Nodular Cast Iron | GGG40 |
| 7 | O-ring | FPM/FKM | |
| 8 | Setting nut | Brass | CW 617N |
| 9 | Stem | Stainless Steel | 1.4301 |
| 10 | Handwheel | Cast Iron | GG25 |
| 11 | Lever | Stainless Steel | 1.4301 |

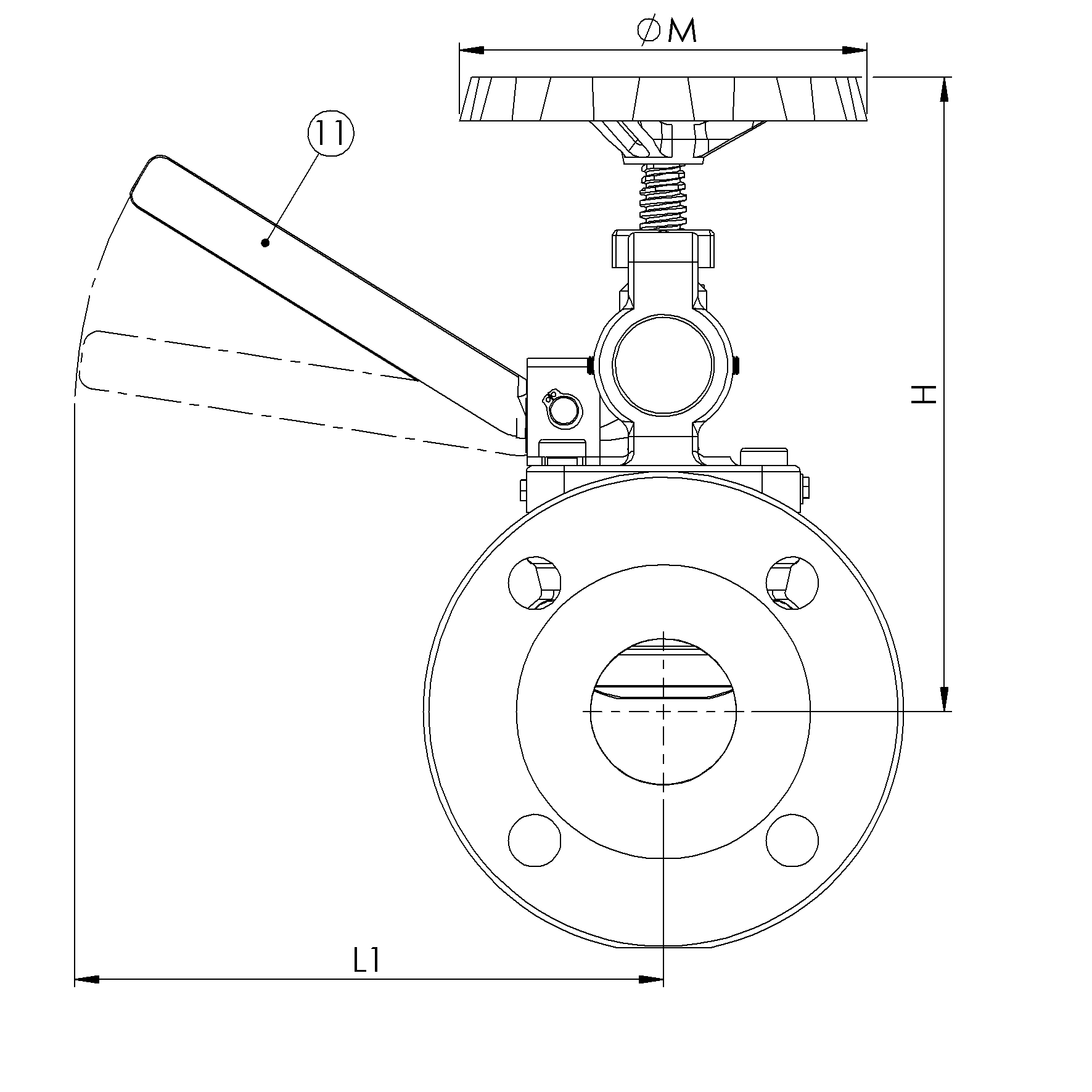

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 20 | 16 | 4x14 | 75 | 105 | 150 | 4.7 | 166 | 185 | 120 |
