Self Closing Drain Valve DN20 PN10
Details

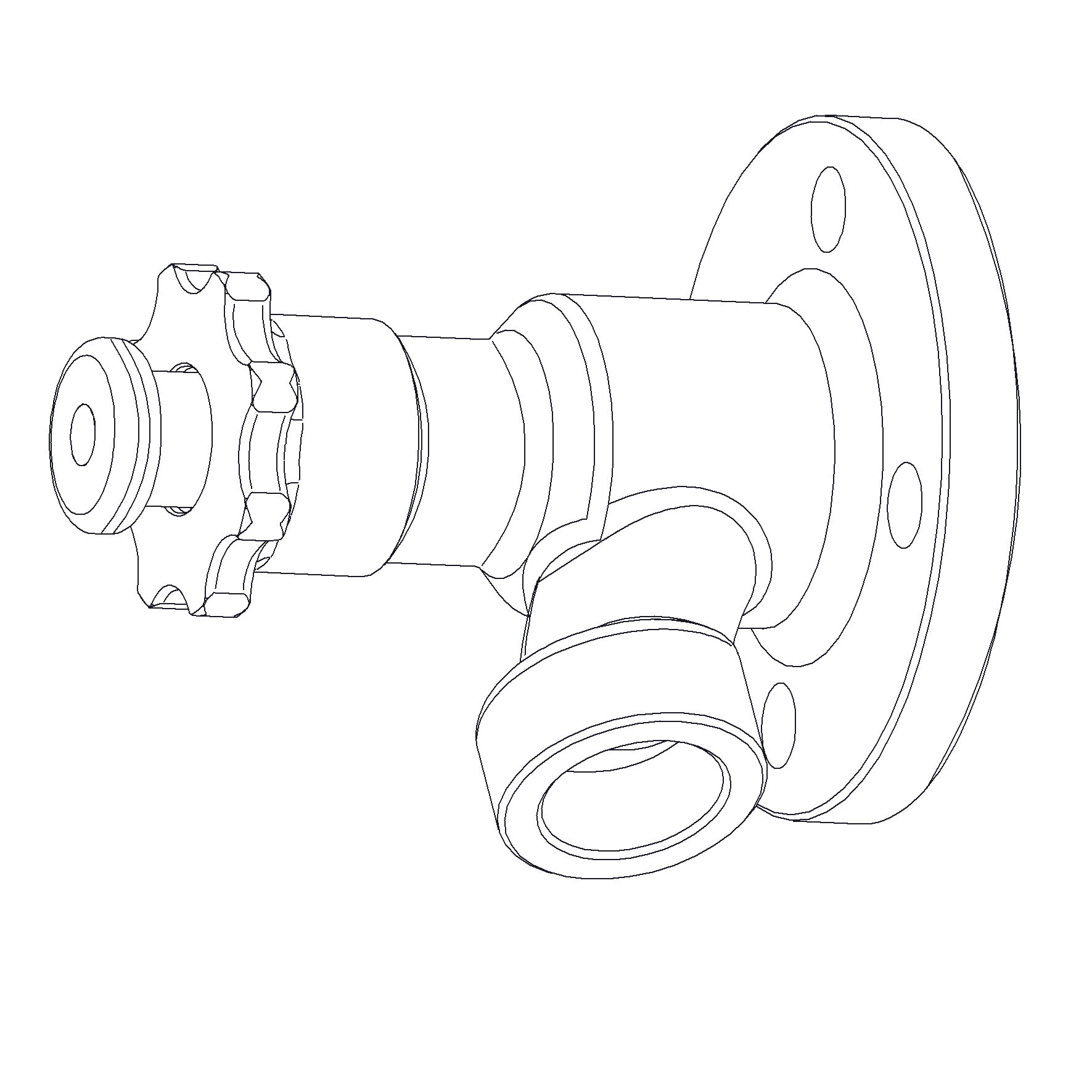

Bronze RG5 body, soft sealing self closing drain valve with push button operation. Flat face flanged inlet, BSPP female threaded outlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 357321 |
| Material Body | Bronze |
| Remark | Connection: PN10 |
| Throughput Direction | Angled |
| End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 20 |
| Material Seat | NBR |
| Material Disc | Brass |
| Pressure Rating | PN10 |
| End Type | Flanged/Threaded |
| Sub Category | SELF |
| Item Number | 230-00000016 |
| Category | Valve |

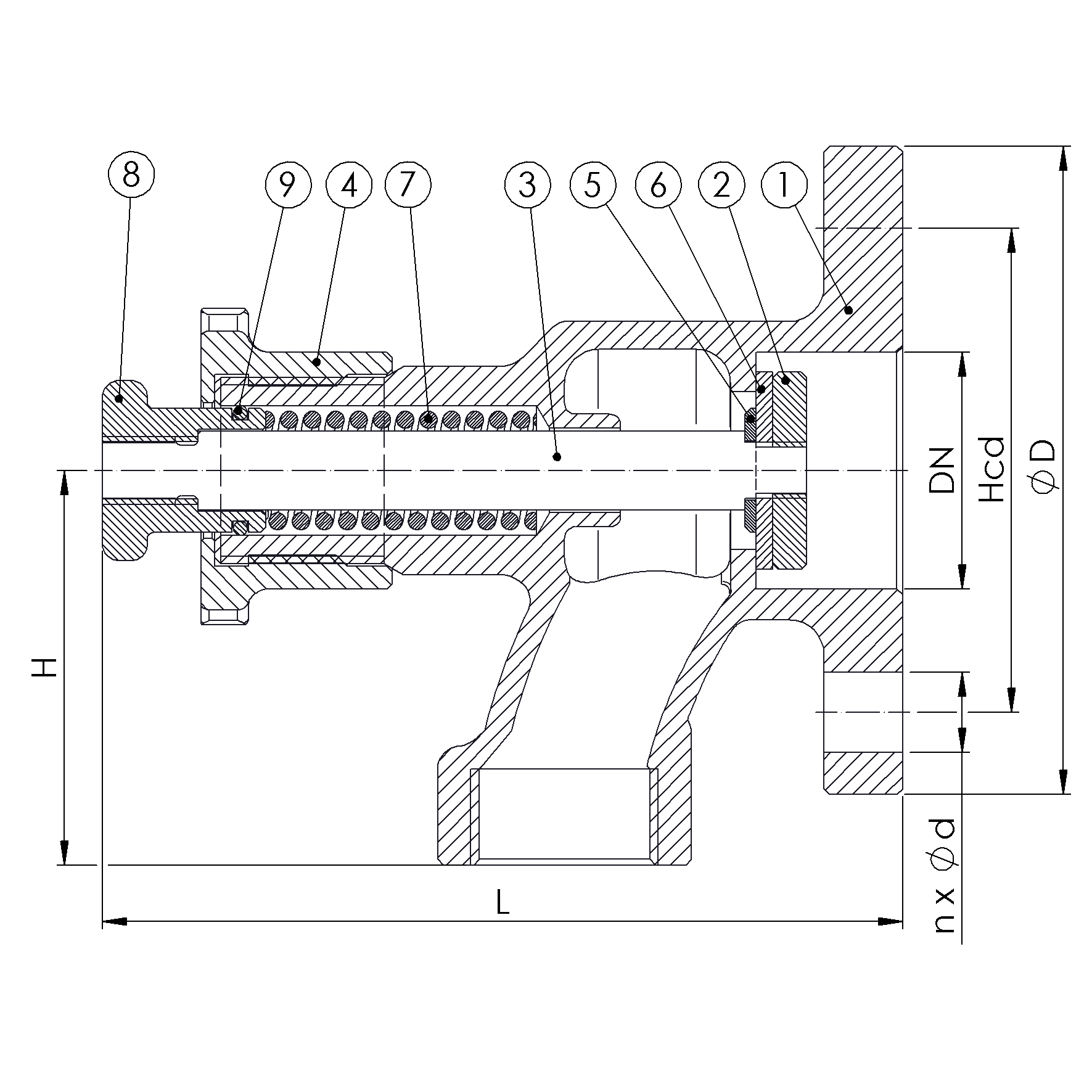

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Disc | Brass | CW 602N |
| 3 | Stem | Brass | CW 602N |
| 4 | Locking nut | Bronze | CC 491K |
| 5 | Washer | Brass | CW 602N |
| 6 | Disc sealing | NBR | |
| 7 | Spring | Stainless Steel | 1.4001 |
| 8 | Push button | Brass | CW 602N |
| 9 | O-ring | NBR |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | Inch | H |
|---|---|---|---|---|---|---|---|---|
| 20 | 10 | 4x14 | 75 | 105 | 145 | 2.3 | 1" | 70 |
