Safety Valve ½" PN25
Details

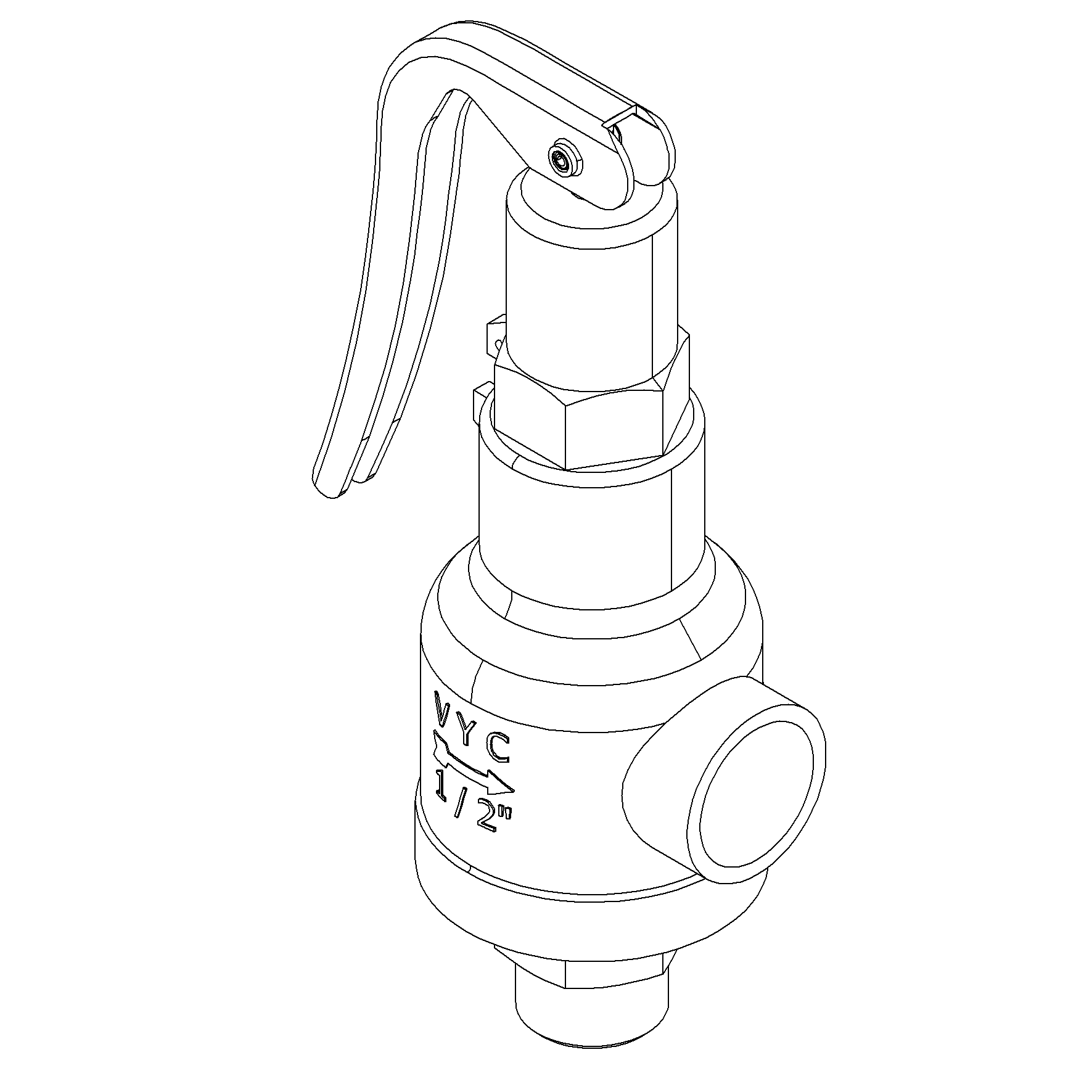

Angled type, Stainless Steel body PTFE seated proportional safety relief valve. Pressure preset and sealed. Threaded male BSPP inlet and female BSPP outlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 475693 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -60°C |
| Throughput Direction | Angled |
| End Standard | ISO 228-1 |
| Design Code | ISO 4126-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 15 |
| Material Seat | Stainless Steel, 316 |
| Material Disc | PTFE |
| Pressure Rating | PN25 |
| End Type | Threaded |
| Sub Category | SAFETY |
| Item Number | 220-00000213 |
| Category | Valve |
| Max temperature | +250°C |

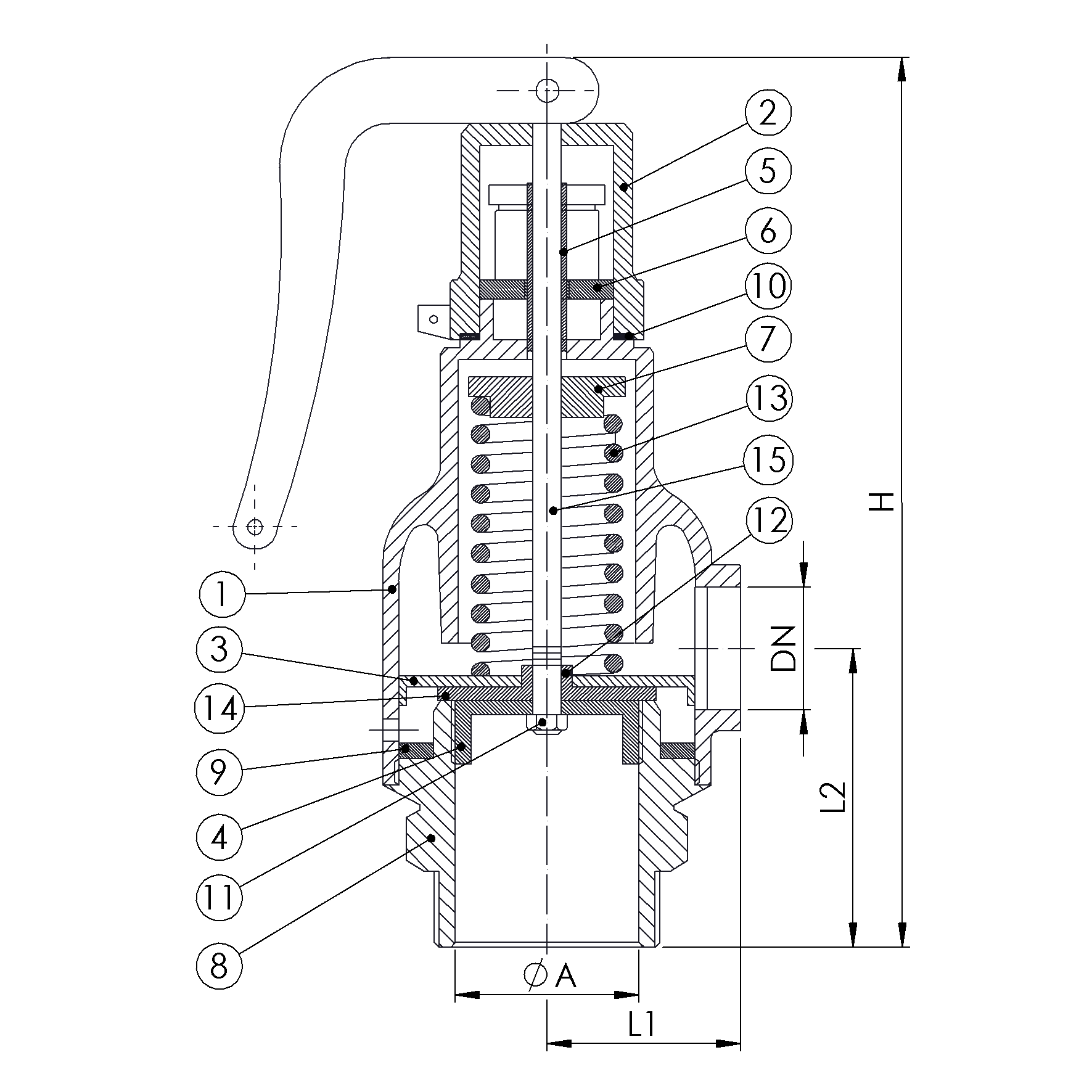

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Cap | Stainless Steel | 1.4308 |
| 3 | Coupling | Stainless Steel | 1.4401 |
| 4 | Lead | Stainless Steel | 1.4401 |
| 5 | Hollow screw | Stainless Steel | 1.4305 |
| 6 | Hollow screw nut | Stainless Steel | 1.4305 |
| 7 | Spring press | Stainless Steel | 1.4301 |
| 8 | Screwed seat | Stainless Steel | 1.4408 |
| 9 | Body coupling | PTFE | |
| 10 | Hood coupling | PTFE | |
| 11 | Nut | Stainless Steel | 1.4401 |
| 12 | Clip | Stainless Steel | 1.4310 |
| 13 | Spring | Stainless Steel | 1.4310 |
| 14 | Sealing disc | PTFE | |
| 15 | Stem | Stainless Steel | 1.4301 |
DETAILS
| DN | Pressure Rating Id | Kg | L1 | Inch | H | L2 | Ø A |
|---|---|---|---|---|---|---|---|
| 15 | 25 | 0.6 | 32 | 1/2" | 140 | 52 | 16.2 |
