Quick Closing Valve DN80 PN16

Angled type
Item No.
M75290
Details

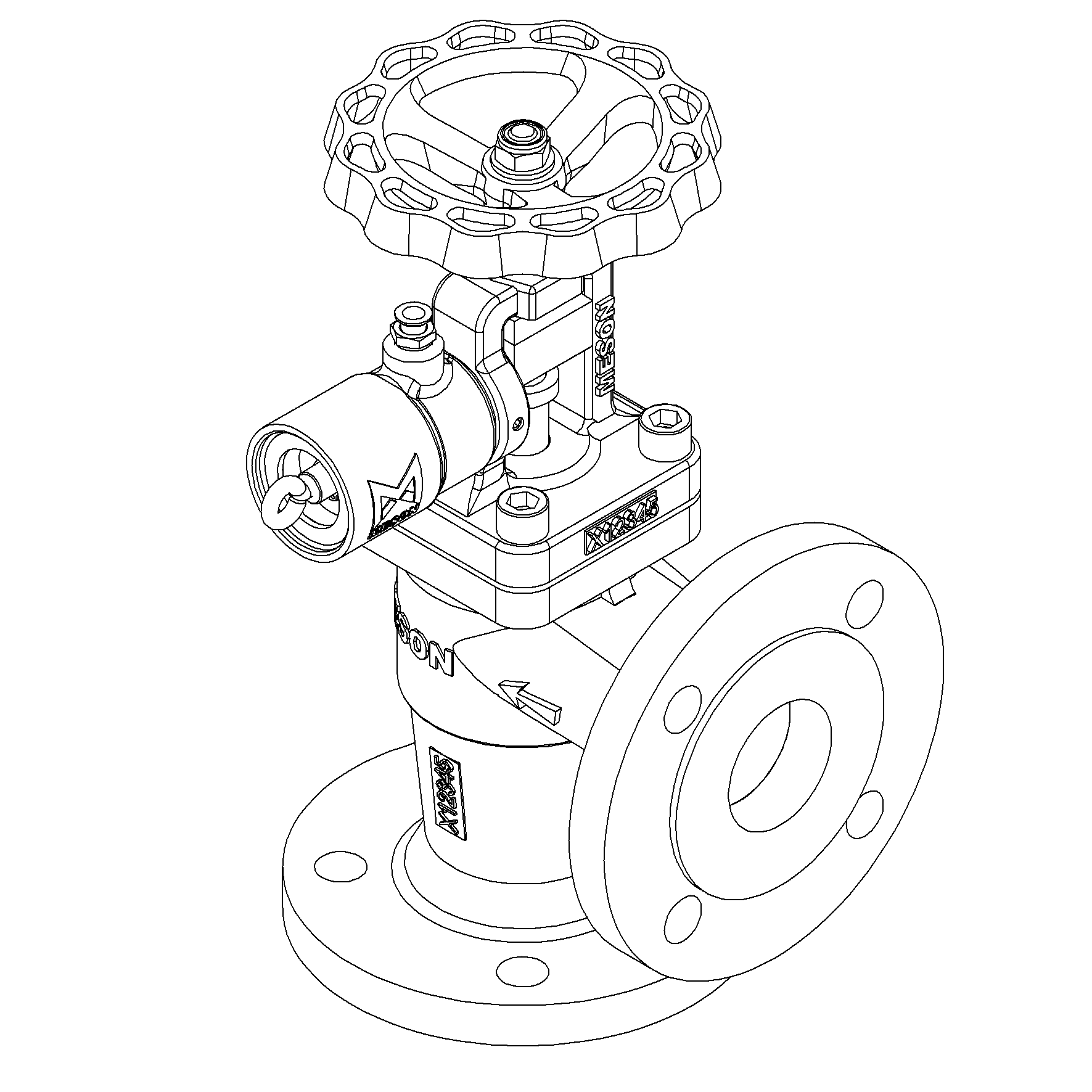

Angled type, Nodular Cast Iron body, metal seated quick closing globe valve. Universal release cylinder for mechanical, hydraulic or pneumatic closing. Integrated fire release safety. Raised face flanges.
More Information
More Information
Product Group 901102
Remark Connection: PN16
End Standard ISO 7005-2
Face To Face Standard EN 558, series 8
Inspection Standard EN 12266
Throughput Direction Angled
Material Disc Stainless Steel, 304
End Type Flanged
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 80
Material Seat Stainless Steel, 304
Material Body Nodular Cast Iron, GGG40
Sub Category QUICK
Item Number M75290
Category Valve
Pressure Rating PN16
Partslist and details

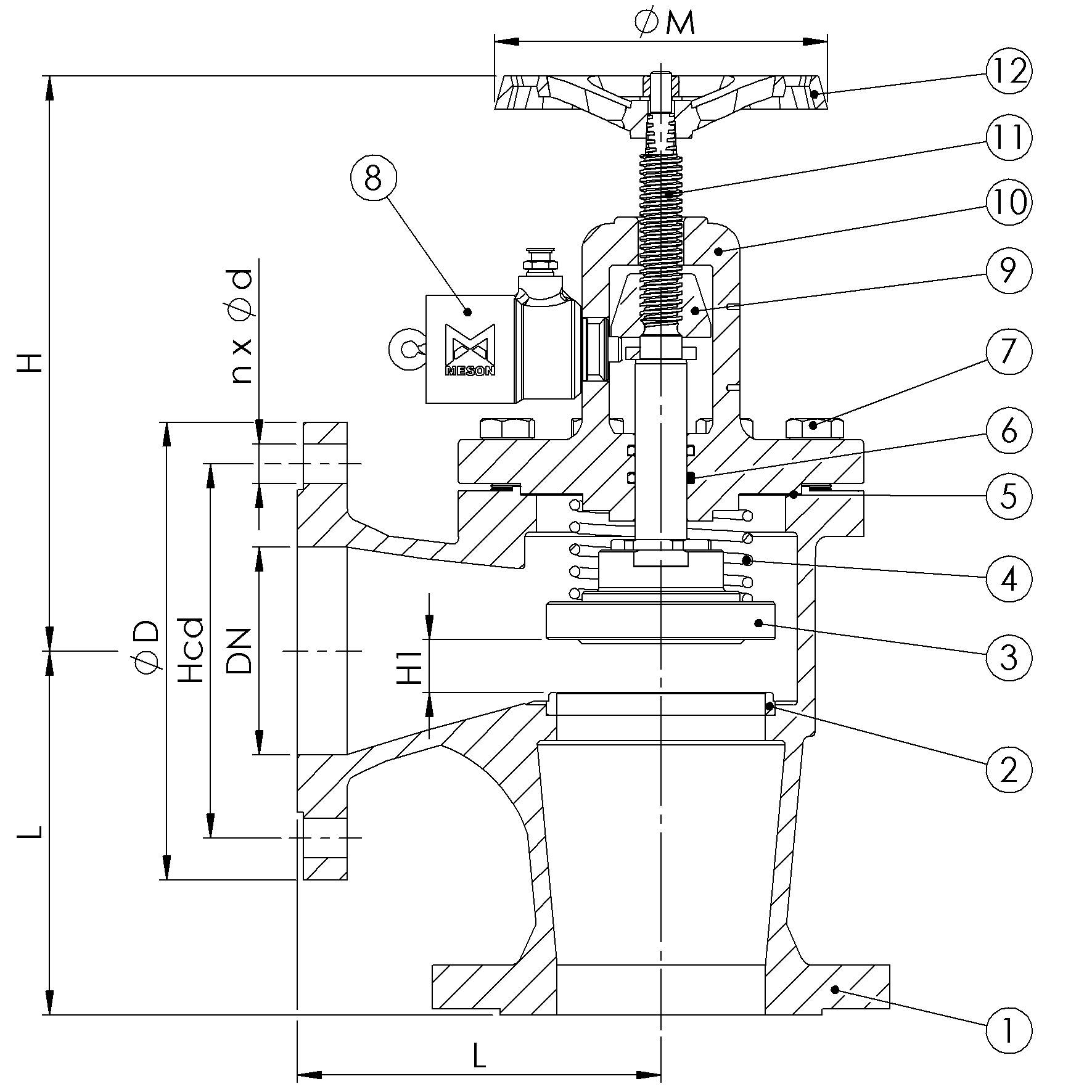

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat ring Stainless Steel 1.4301
3 Disc Stainless Steel 1.4301
4 Spring, release unit Spring Steel SH 1084 ASTM A713
5 Gasket NBR Bonded Aramid
6 O-ring FPM/FKM
7 Screw Stainless Steel A4
8 Release cylinder Brass CW 614N
9 Setting nut Brass CW 617N
10 Bonnet Nodular Cast Iron GGG40
11 Stem Stainless Steel 1.4301
12 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H H1 Ø M
80 16 8x19 160 200 155 26 252 20 160
