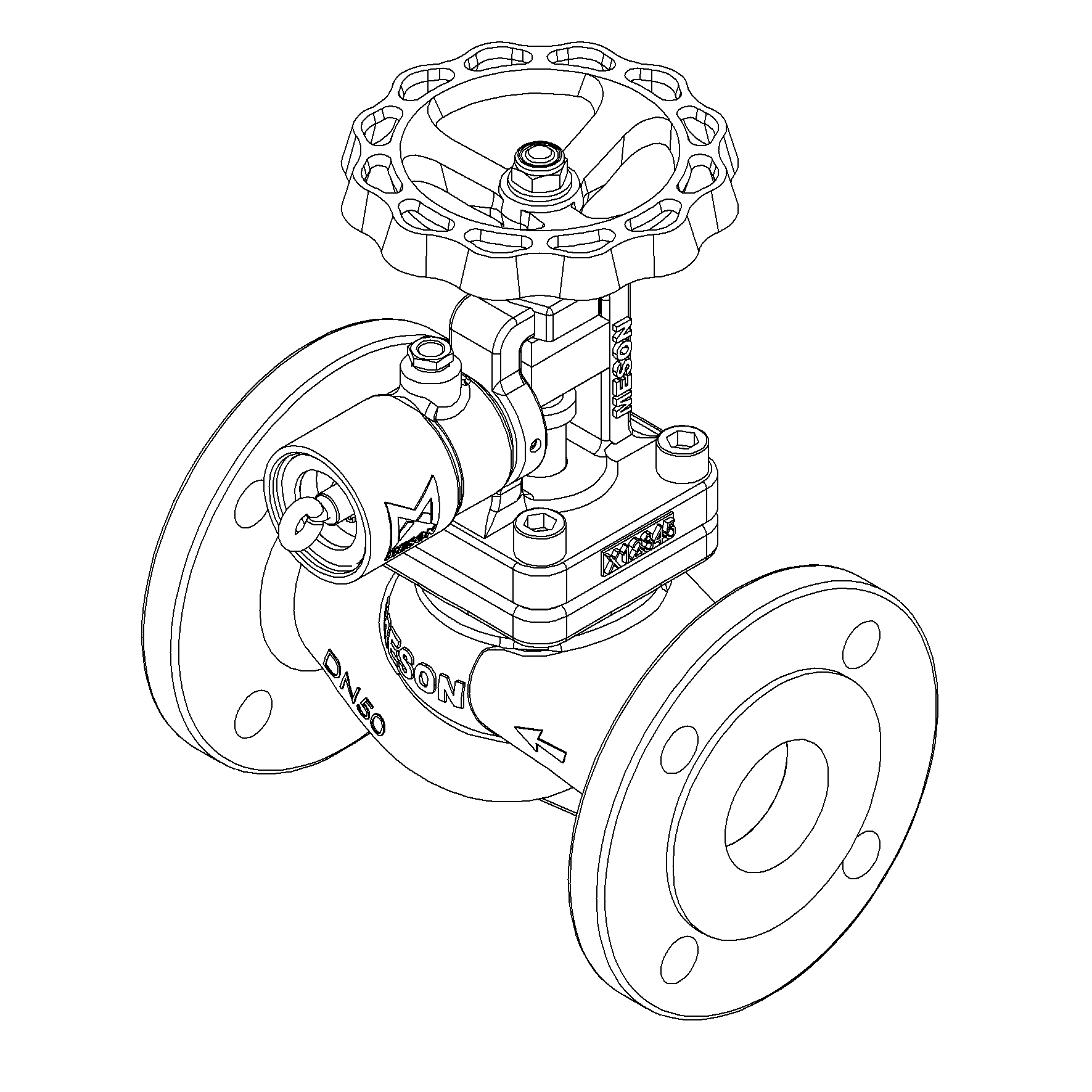

Quick Closing Valve DN80 PN16

Straight type
Item No.
M75286
Details
Straight type, Nodular Cast Iron body, metal seated quick closing globe valve. Universal release cylinder for mechanical, hydraulic or pneumatic closing. Integrated fire release safety. Raised face flanges.
More Information
More Information
Product Group 901002
Face To Face Standard EN 558, series 1
Remark Connection: PN16
Inspection Standard EN 12266
Pressure Rating PN16
Category Valve
Item Number M75286
Sub Category QUICK
End Type Flanged
Material House Nodular Cast Iron, GGG40
Material Disc Stainless Steel, 304
Material Seat Stainless Steel, 304
Size 80
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Standard DIN
End Standard ISO 7005-2
Throughput Direction Straight

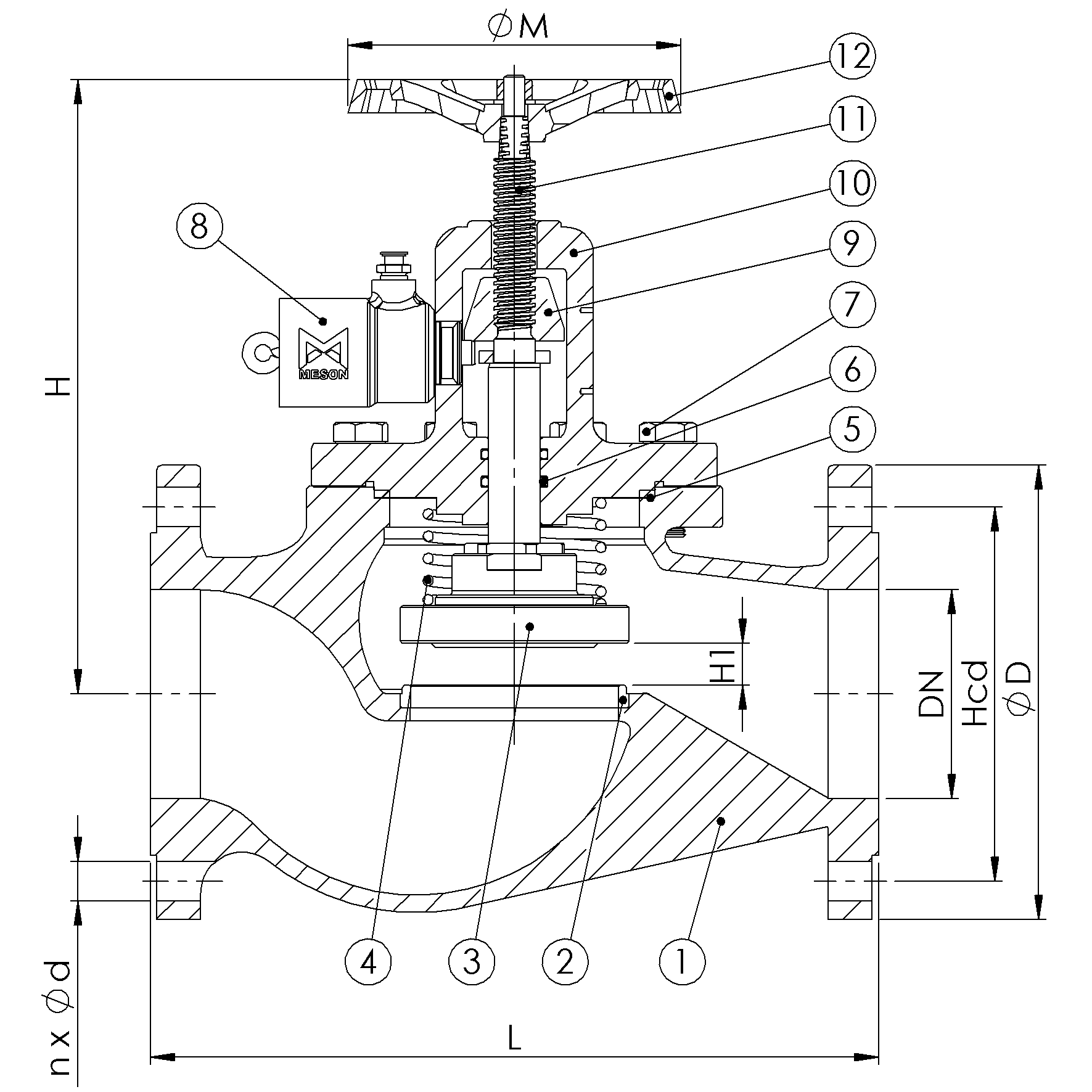

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat ring Stainless Steel 1.4301
3 Disc Stainless Steel 1.4301
4 Spring, release unit Spring Steel SH 1084 ASTM A713
5 Gasket NBR Bonded Aramid
6 O-ring FPM/FKM
7 Screw 8.8 FZB
8 Release cylinder Brass CW 614N
9 Setting nut Brass CW 617N
10 Bonnet Nodular Cast Iron GGG40
11 Stem Stainless Steel 1.4301
12 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H H1 Ø M
80 16 8x19 160 200 310 26 253 20 160
