Quick Closing Valve DN40 PN16/ANSI150

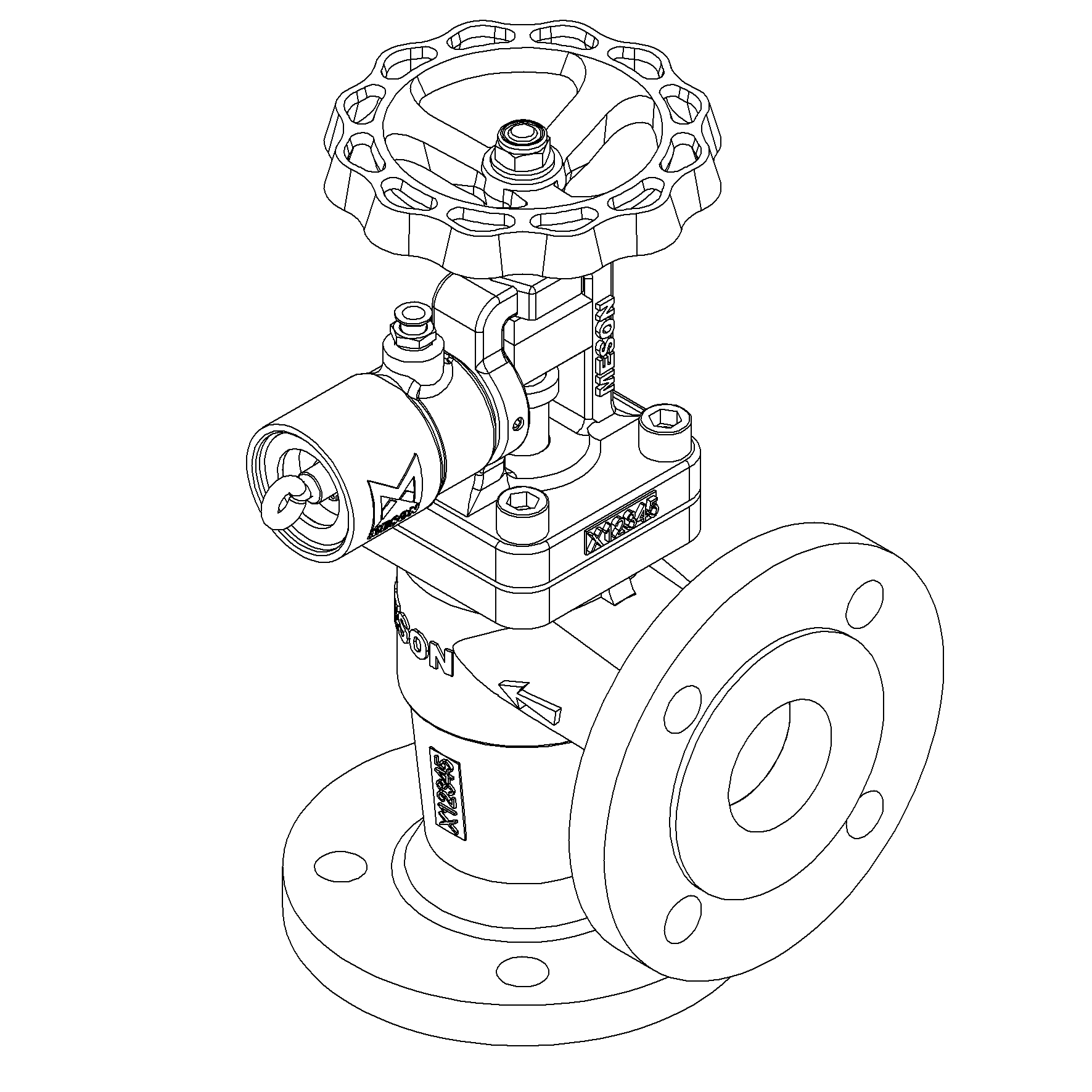

Angled type - drilled ANSI 150
Item No.
M75269
Details
Angled type, Nodular Cast Iron body, metal seated quick closing globe valve. Universal release cylinder for mechanical, hydraulic or pneumatic closing. Integrated fire release safety. Raised face flanges.
More Information
More Information
Price ViewPrice Range
Product Group901102
End StandardISO 7005-2
Face To Face StandardEN 558, series 8
Inspection StandardEN 12266
RemarkConnection: ANSI 150
Throughput DirectionAngled
Pressure RatingPN16
End TypeFlanged
StandardDIN
ApplicationBoiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size40
Material SeatStainless Steel, 304
Material DiscStainless Steel, 304
Material BodyNodular Cast Iron, GGG40
Sub CategoryQUICK
Item NumberM75269
CategoryValve
Partslist and details

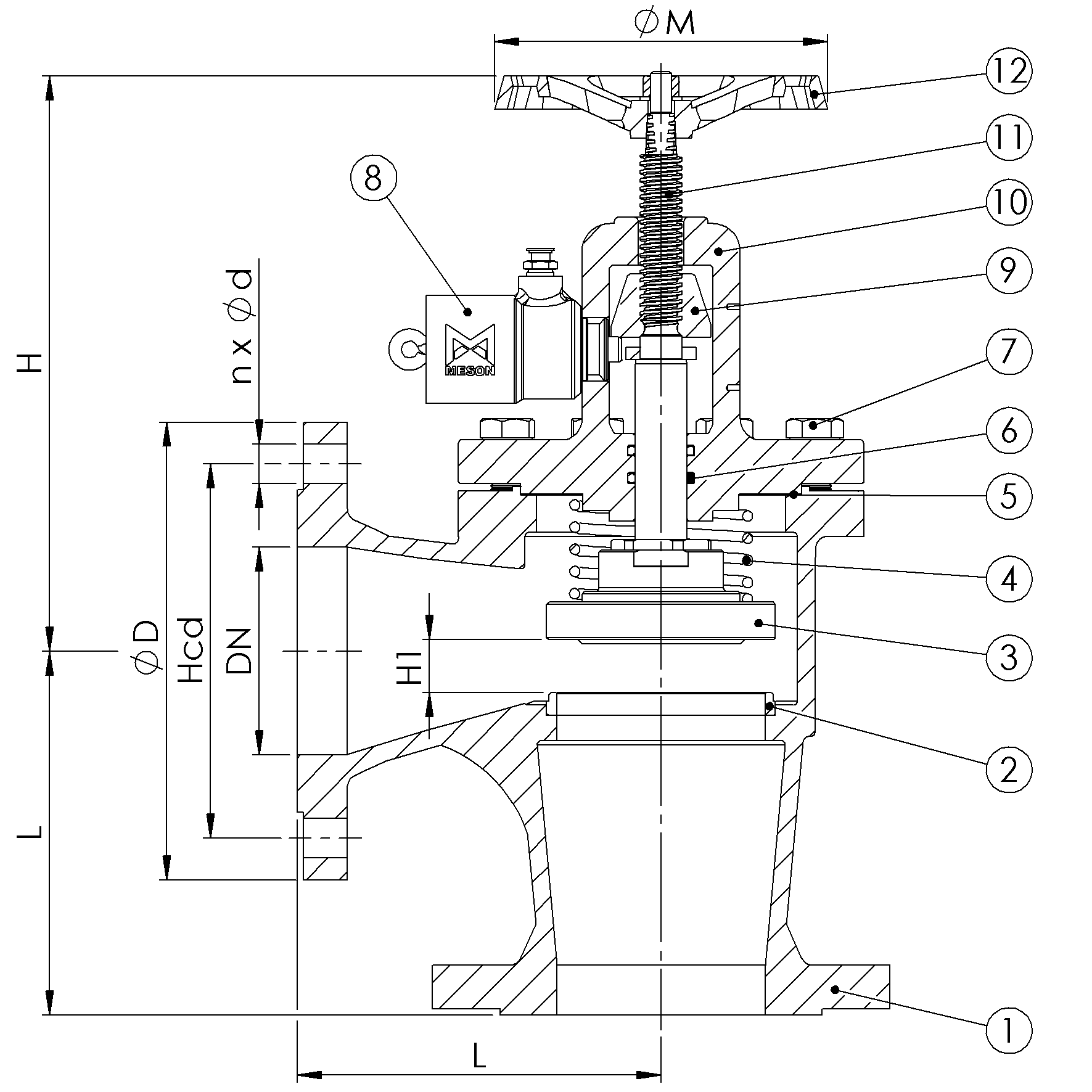

PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40
2 Seat ring Stainless Steel 1.4301
3 Disc Stainless Steel 1.4301
4 Spring, release unit Spring Steel SH 1084 ASTM A713
5 Gasket NBR Bonded Aramid
6 O-ring FPM/FKM
7 Screw 8.8 FZB
8 Release cylinder Brass CW 614N
9 Setting nut Brass CW 617N
10 Bonnet Nodular Cast Iron GGG40
11 Stem Stainless Steel 1.4301
12 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H H1 Ø M
40 16 4x19 110 150 115 9.9 205 10 140
