Piston Check Valve ¼" PN40
Details
Y-type, Stainless Steel body, spring loaded lift check valve with PTFE soft sealing. Screwed cap. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 471494 |
| Material Body | Stainless Steel, 316 |
| Min temperature | 0°C |
| Throughput Direction | Y-type |
| Face To Face Standard | EN 16722 |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 8 |
| Material Seat | PTFE |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | PN40 |
| End Type | Threaded |
| Sub Category | CHECK |
| Item Number | 60-00000604 |
| Category | Valve |
| Max temperature | +180°C |

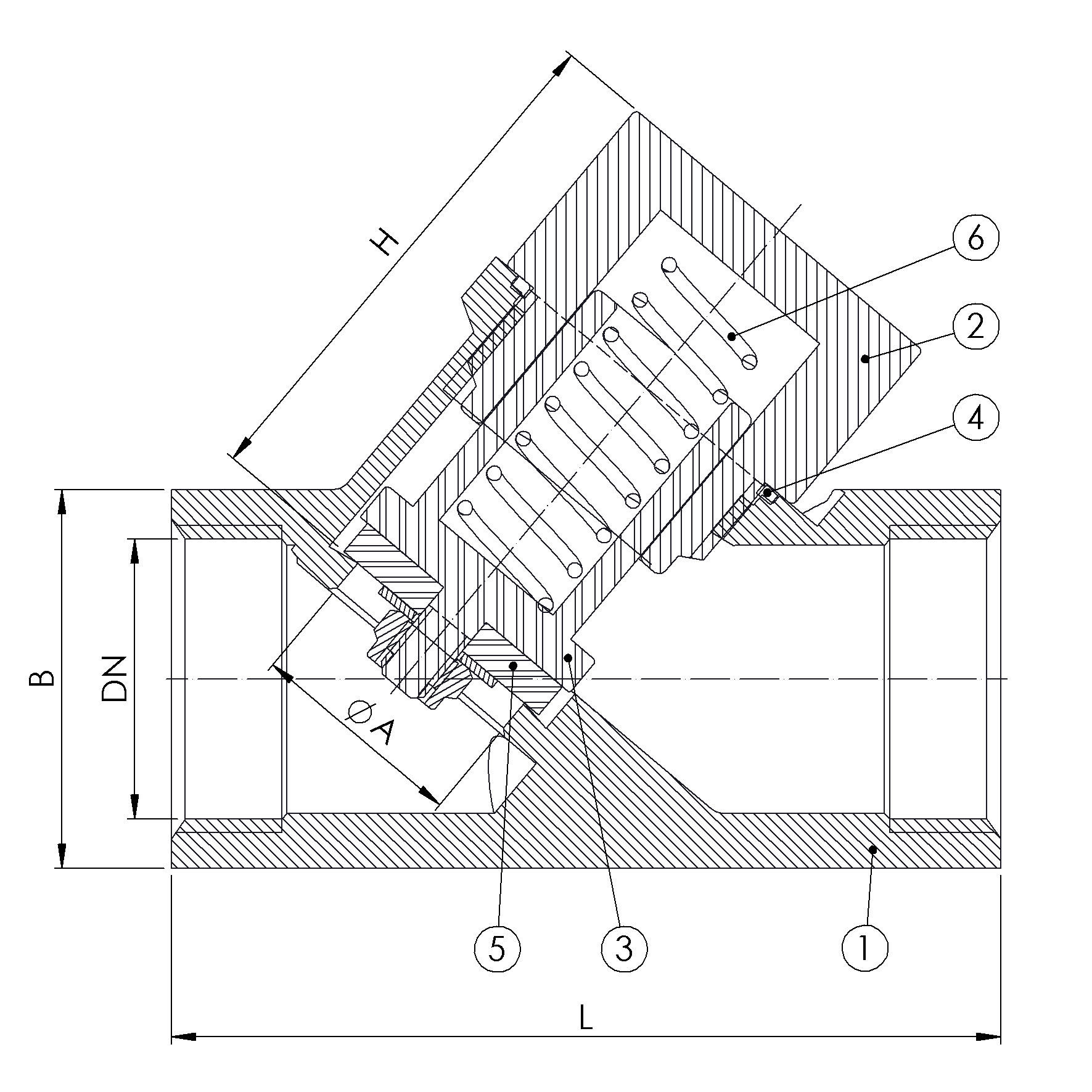

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Disc | Stainless Steel | AISI 316 |
| 4 | Gasket | PTFE | |
| 5 | Seal | PTFE | |
| 6 | Spring | Stainless Steel | AISI 316 |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø A | B |
|---|---|---|---|---|---|---|---|
| 8 | 40 | 65.8 | 0.3 | 1/4" | 37,4 | 11.6 | 27 |
