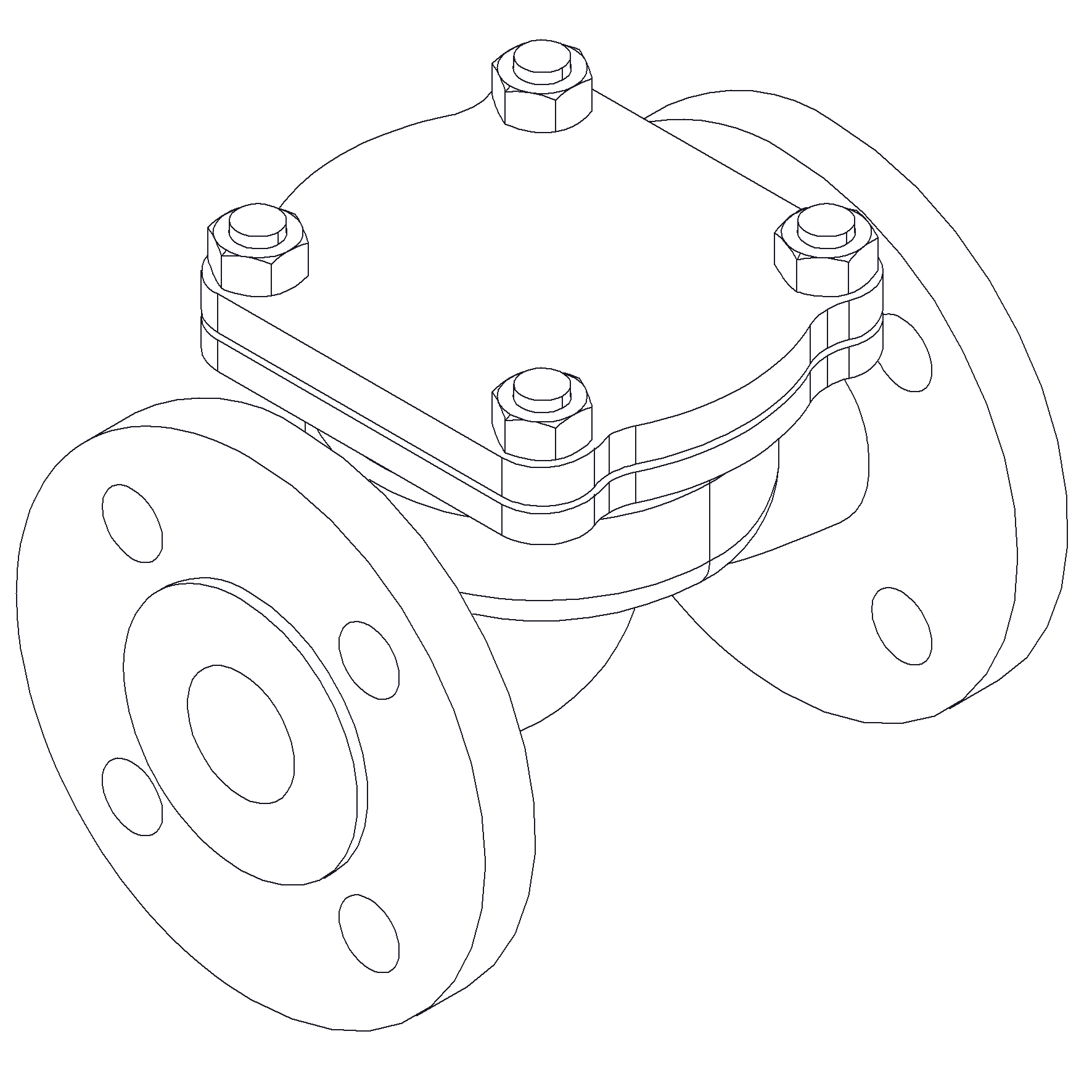

Lift Check Valve DN80 PN16

Item No.

60-00000664

Details

Cast Iron body, metal seated spring loaded lift check valve. Raised face flanges.

More Information

More Information
Price View	Price Range
Product Group	472052
Material Body	Cast Iron
Min temperature	-10°C
Remark	Connection: PN16
Throughput Direction	Straight
Face To Face Standard	EN 558, series 1
End Standard	EN 1092-2
Design Code	DIN 86252
Standard	DIN
Application	Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size	80
Material Seat	Bronze
Material Disc	Nodular Cast Iron, GGG40.3
Pressure Rating	PN16
End Type	Flanged
Sub Category	CHECK
Item Number	60-00000664
Category	Valve
Max temperature	+180°C

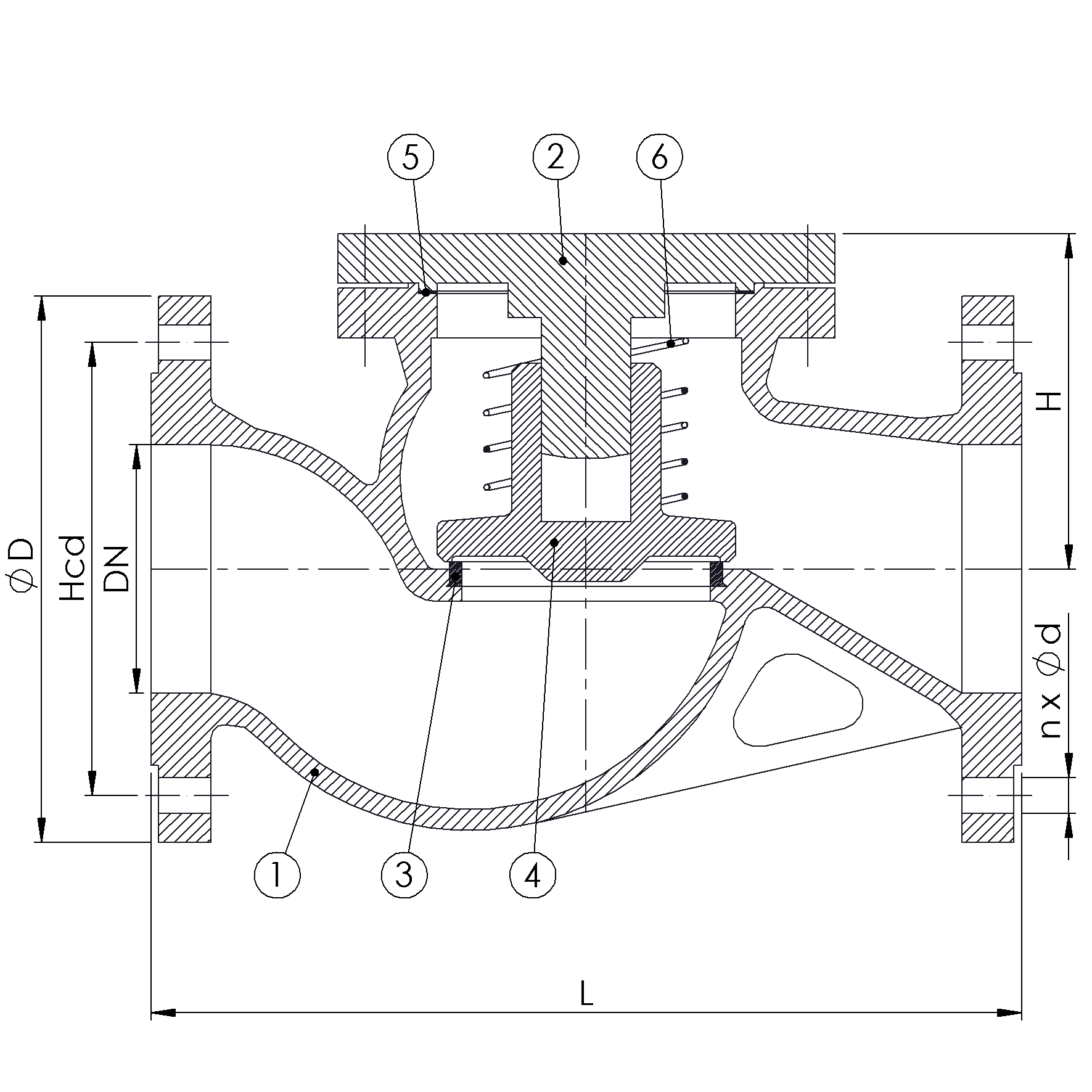

No	Part	Material	Code
1	Body	Cast Iron	GG25
2	Bonnet	Cast Iron	GG25
3	Seat	Bronze	CC 491K
4	Disc	Nodular Cast Iron	GGG40.3
5	Bonnet Gasket	Graphite
6	Spring	Spring Steel	1.4310

DN	Pressure Rating Id	nxdd	Hcd	Ø D	L	Kg	H
80	16	8x18	160	200	310	22	115
