Lift Check Valve DN40 PN40
Details
Cast Steel body, metal seated spring loaded lift check valve. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 472064 |
| Material Body | Cast Steel |
| Remark | Connection: PN40 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | EN 1092-1 |
| Design Code | EN 13709 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water |
| Size | 40 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Stainless Steel, 420 |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Sub Category | CHECK |
| Item Number | 60-00000676 |
| Category | Valve |
| Inspection Standard | EN 12266 |
Partslist and details

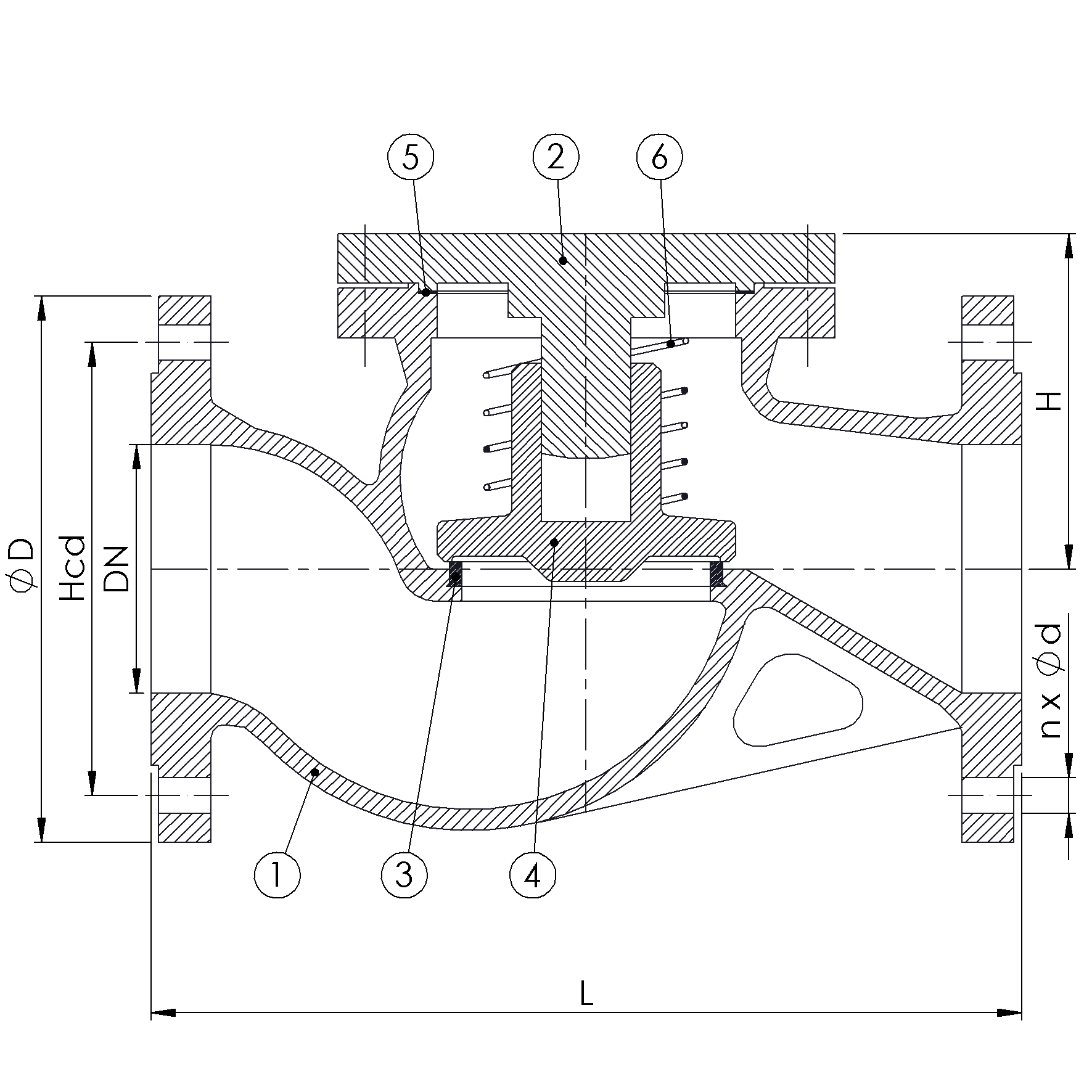

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A105 |
| 2 | Bonnet | Cast Steel | ASTM A105 |
| 3 | Seat | Stainless Steel | Deposited 13Cr |
| 4 | Disc | Stainless Steel | ASTM A276-420 |
| 5 | Bonnet Gasket | Flexible Graphite/304 | |
| 6 | Spring | Stainless Steel | 304 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H |
|---|---|---|---|---|---|---|---|
| 40 | 40 | 4x18 | 110 | 150 | 200 | 14 | 135 |
