Lift Check Valve DN40 PN16

Item No.
60-00000661
Details

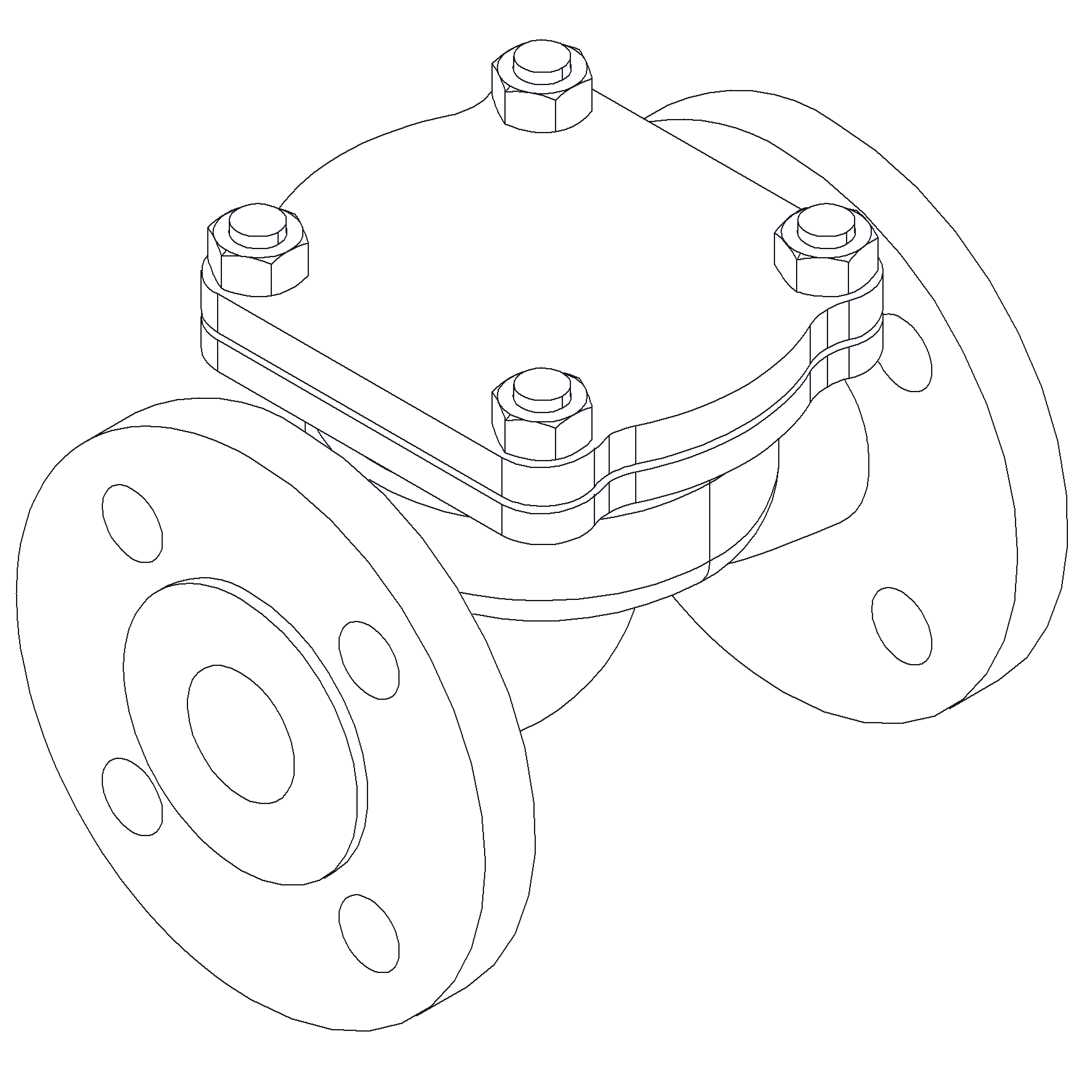

Cast Iron body, metal seated spring loaded lift check valve. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 472052
Material Body Cast Iron
Min temperature -10°C
Remark Connection: PN16
Throughput Direction Straight
Face To Face Standard EN 558, series 1
End Standard EN 1092-2
Design Code DIN 86252
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size 40
Material Seat Bronze
Material Disc Bronze
Pressure Rating PN16
End Type Flanged
Sub Category CHECK
Item Number 60-00000661
Category Valve
Max temperature +180°C
Partslist and details

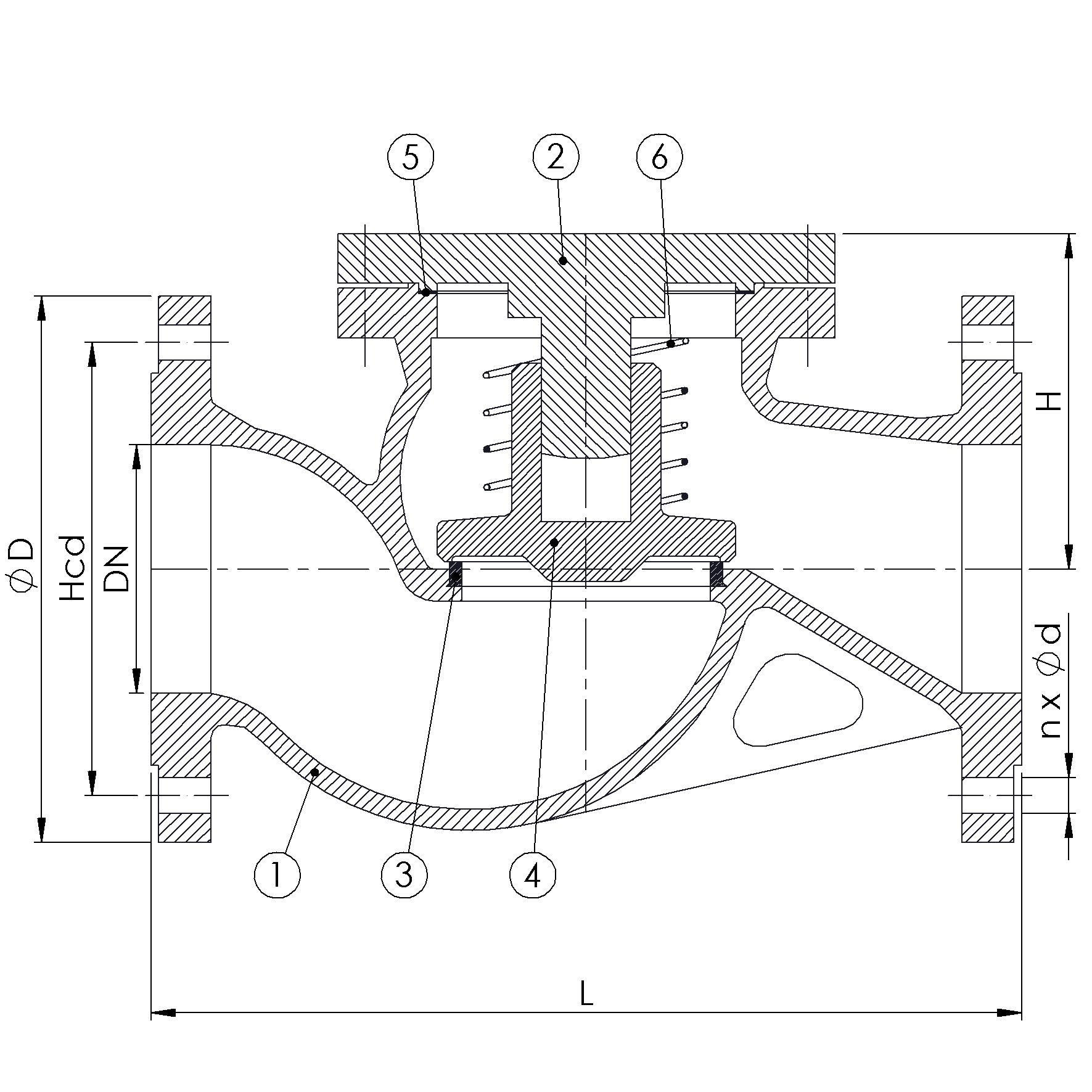

PARTSLIST
No Part Material Code
1 Body Cast Iron GG25
2 Bonnet Cast Iron GG25
3 Seat Bronze CC 491K
4 Disc Bronze CC 491K
5 Bonnet Gasket Graphite
6 Spring Spring Steel 1.4310


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H
40 16 4x18 110 150 200 8 80
