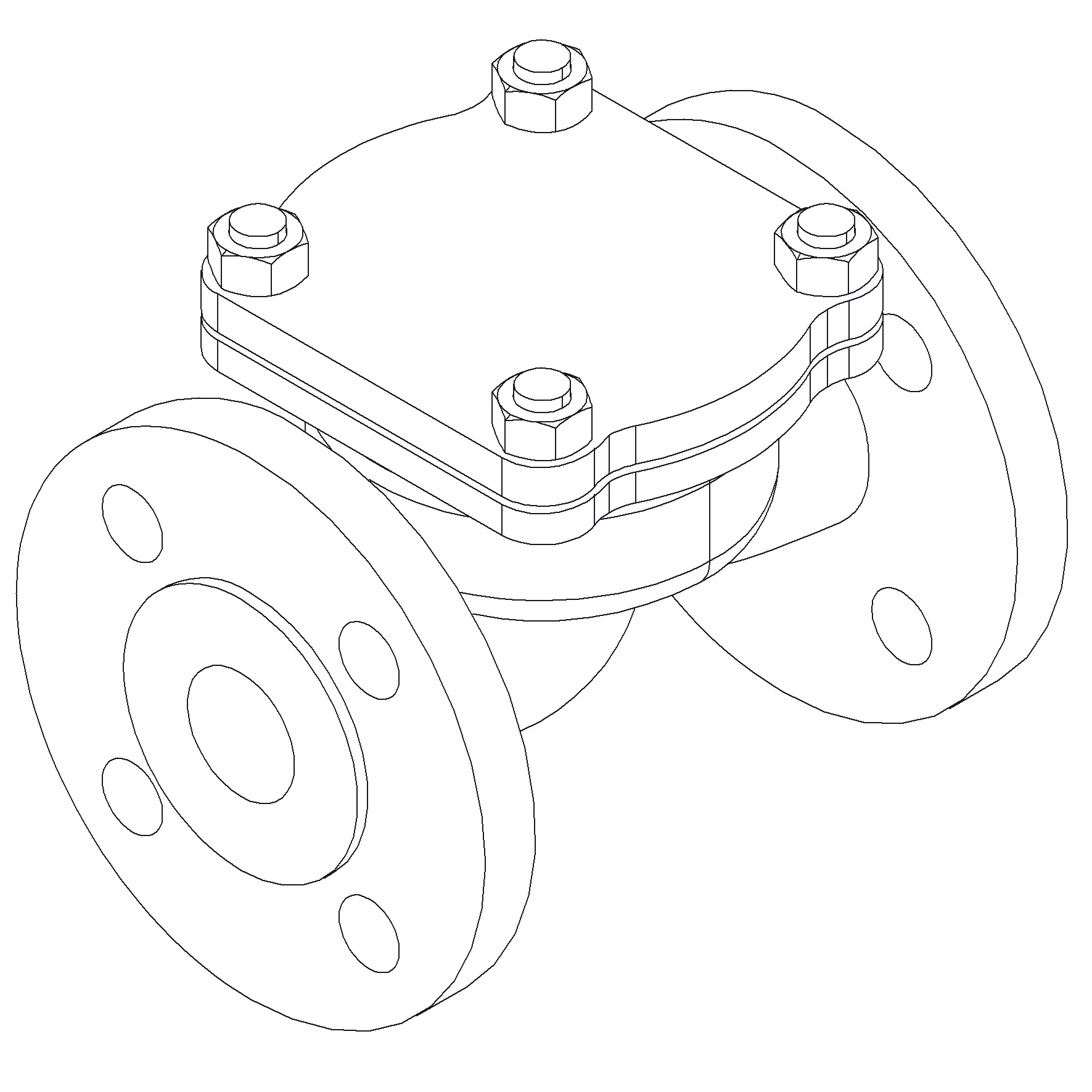

Lift Check Valve DN25 PN16

Item No.
60-00000614
Details
Nodular Cast Iron body, metal seated spring loaded lift check valve. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 472002
Material Body Nodular Cast Iron, GGG40.3
Min temperature -10°C
Remark Connection: PN16
Throughput Direction Straight
Face To Face Standard EN 558, series 1
End Standard EN 1092-2
Design Code DIN 86252
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size 25
Material Seat Bronze
Material Disc Nodular Cast Iron, GGG40.3
Pressure Rating PN16
End Type Flanged
Sub Category CHECK
Item Number 60-00000614
Category Valve
Max temperature +180°C

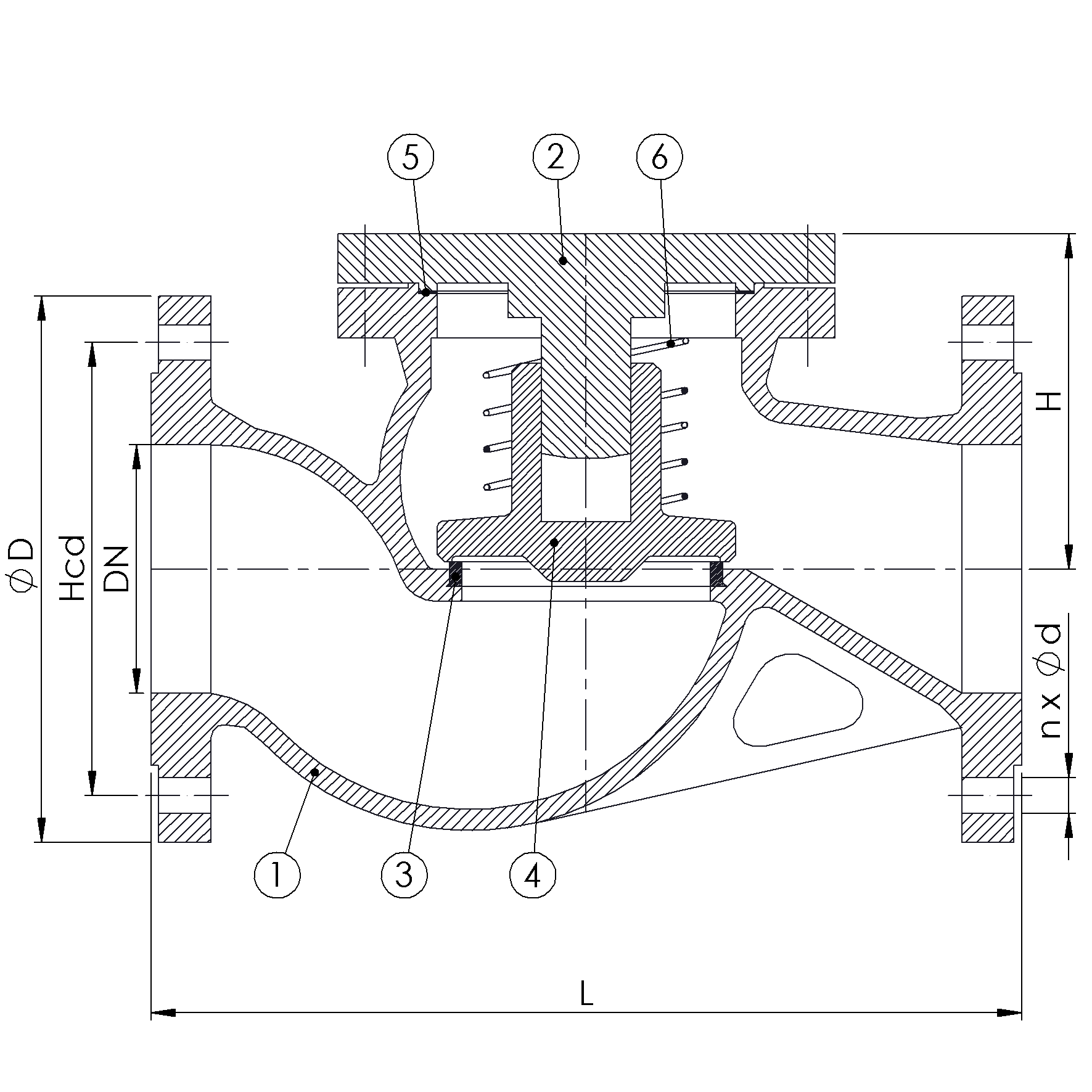

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Bonnet Nodular Cast Iron GGG40.3
3 Seat Bronze CC 491K
4 Disc Nodular Cast Iron GGG40.3
5 Bonnet Gasket Graphite
6 Spring Spring Steel 1.4310


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H
25 16 4x14 85 115 160 4 65
