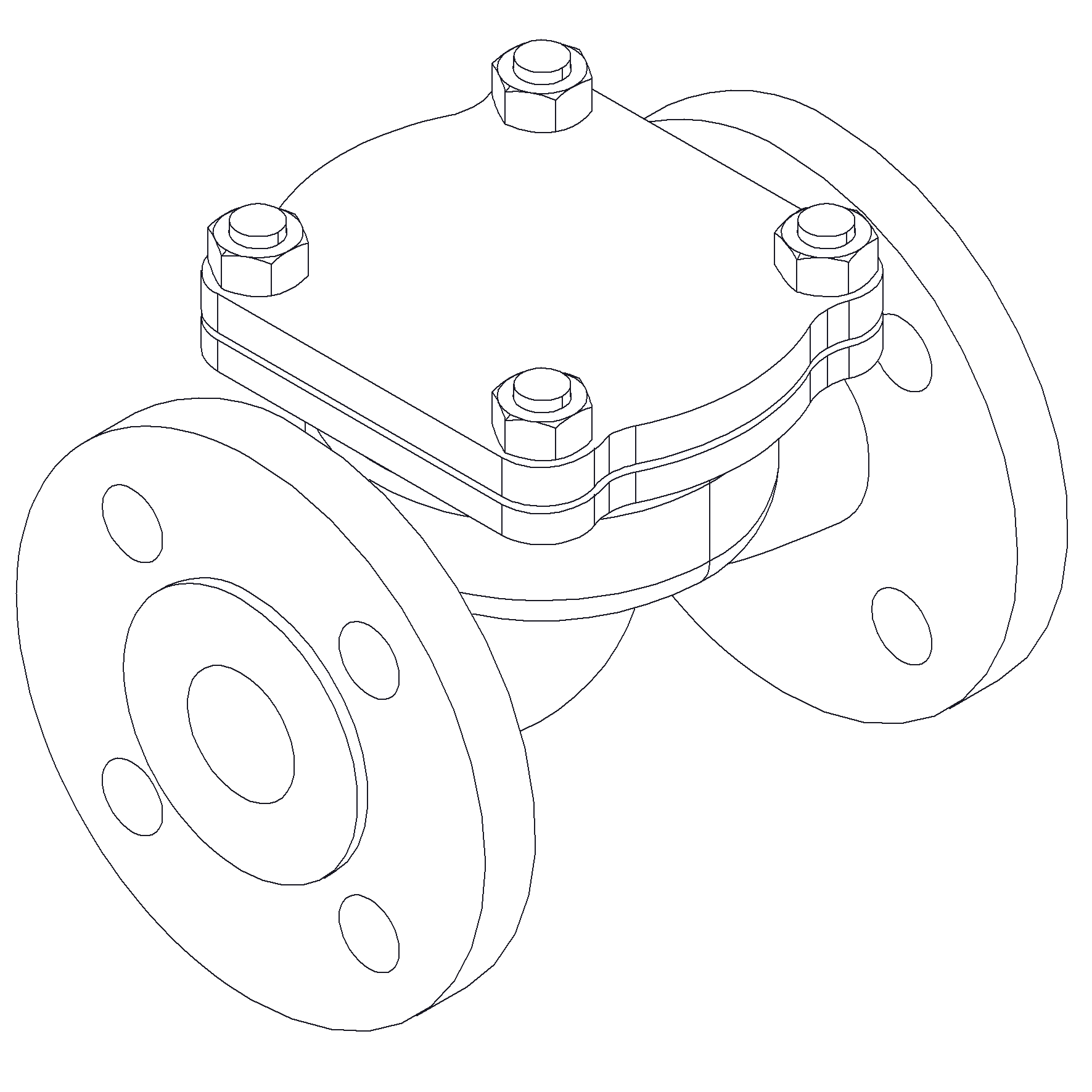

Lift Check Valve DN200 PN16

Item No.

60-00000623

Details

Nodular Cast Iron body, metal seated spring loaded lift check valve. Raised face flanges.

More Information

More Information
Price View	Price Range
Product Group	472002
Material Body	Nodular Cast Iron, GGG40.3
Min temperature	-10°C
Remark	Connection: PN16
Throughput Direction	Straight
Face To Face Standard	EN 558, series 1
End Standard	EN 1092-2
Design Code	DIN 86252
Standard	DIN
Application	Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water
Size	200
Material Seat	Bronze
Material Disc	Nodular Cast Iron, GGG40.3
Pressure Rating	PN16
End Type	Flanged
Sub Category	CHECK
Item Number	60-00000623
Category	Valve
Max temperature	+180°C

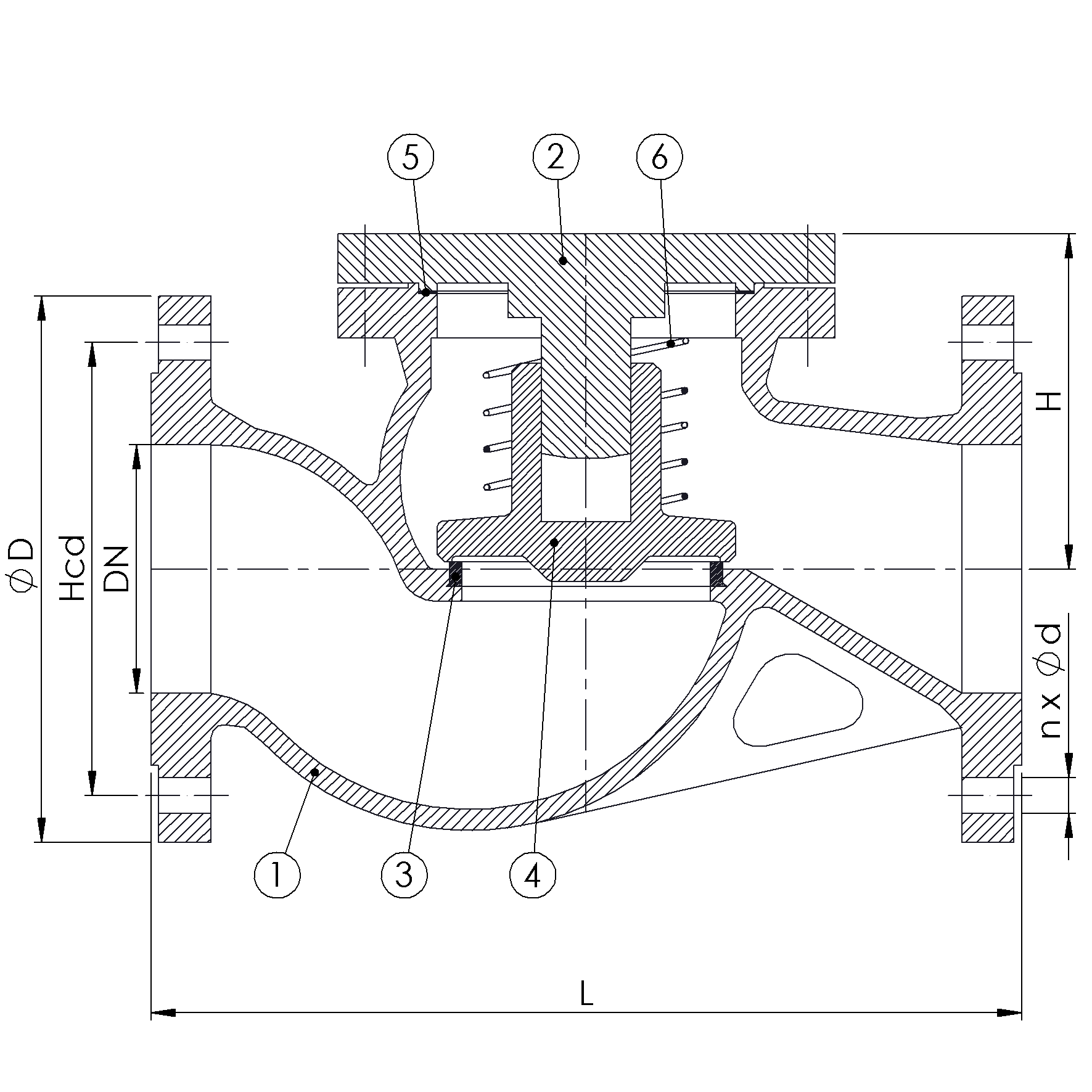

No	Part	Material	Code
1	Body	Nodular Cast Iron	GGG40.3
2	Bonnet	Nodular Cast Iron	GGG40.3
3	Seat	Bronze	CC 491K
4	Disc	Nodular Cast Iron	GGG40.3
5	Bonnet Gasket	Graphite
6	Spring	Spring Steel	1.4310

DN	Pressure Rating Id	Hcd	Ø D	L	Kg	H
200	16	295	340	600	115	245
