Globe Valve ¼" PN40
Details

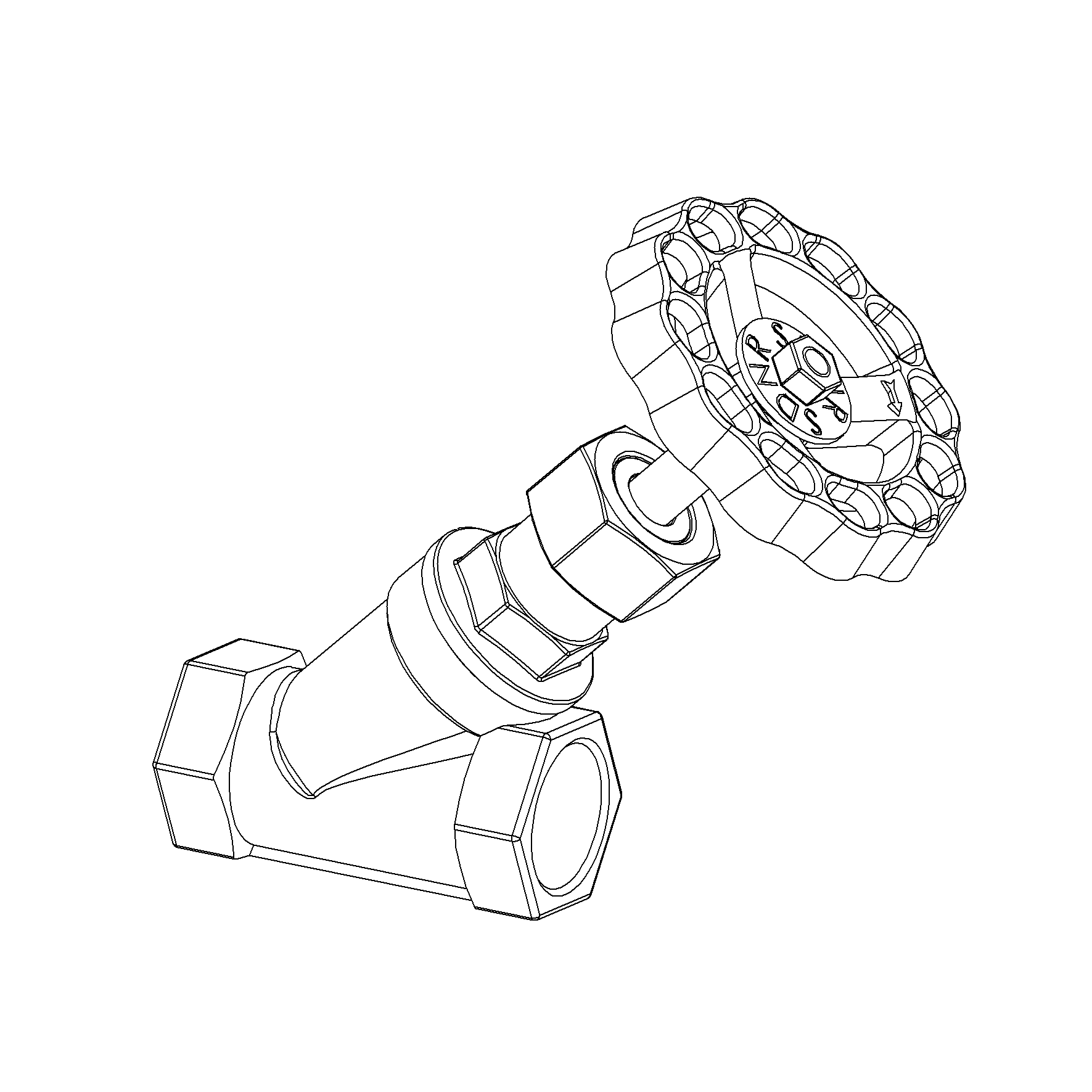

Y-type, Stainless Steel body, soft seated globe valve with rising stem and screwed and secured bonnet. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 466794 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -20°C |
| Throughput Direction | Y-type |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Cargo oil, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Sea water, Steam, Thermal oil, Water |
| Size | 8 |
| Material Seat | PTFE |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | PN40 |
| End Type | Threaded |
| Sub Category | GLOBE |
| Item Number | M82488 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | SDNR with spring |
| Max temperature | +200°C |
Partslist and details

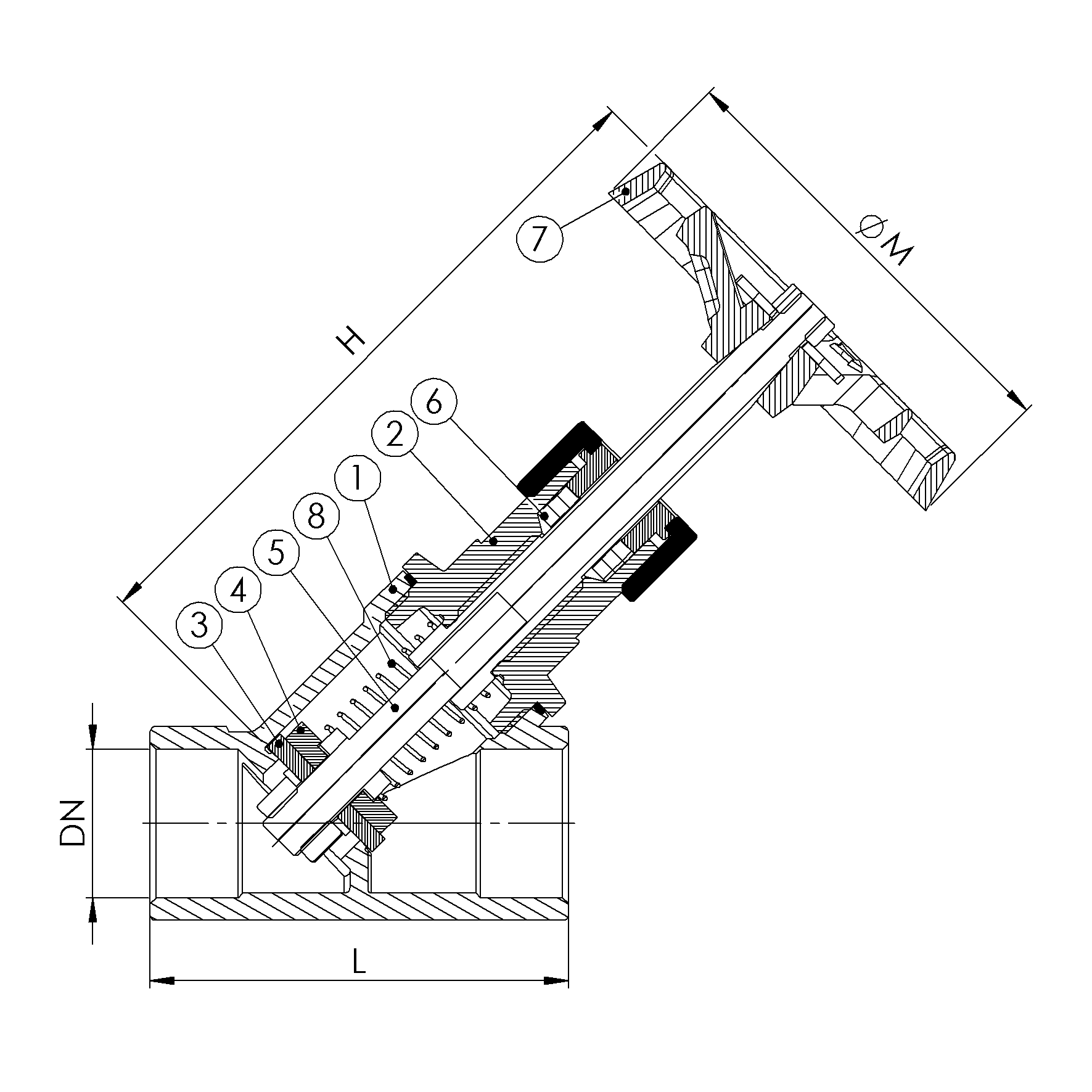

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 8 | Spring | Stainless Steel | AISI 316 |
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Bonnet | Stainless Steel | 1.4408 |
| 3 | Seat | PTFE | |
| 4 | Disc | Stainless Steel | 1.4401 |
| 5 | Stem | Stainless Steel | 1.4401 |
| 6 | Packing | PTFE | |
| 7 | Handwheel | Ductile Iron |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø M |
|---|---|---|---|---|---|---|
| 8 | 40 | 57 | 0.4 | 1/4" | 99 | 62 |
