Globe Valve ⅜" PN16
Details

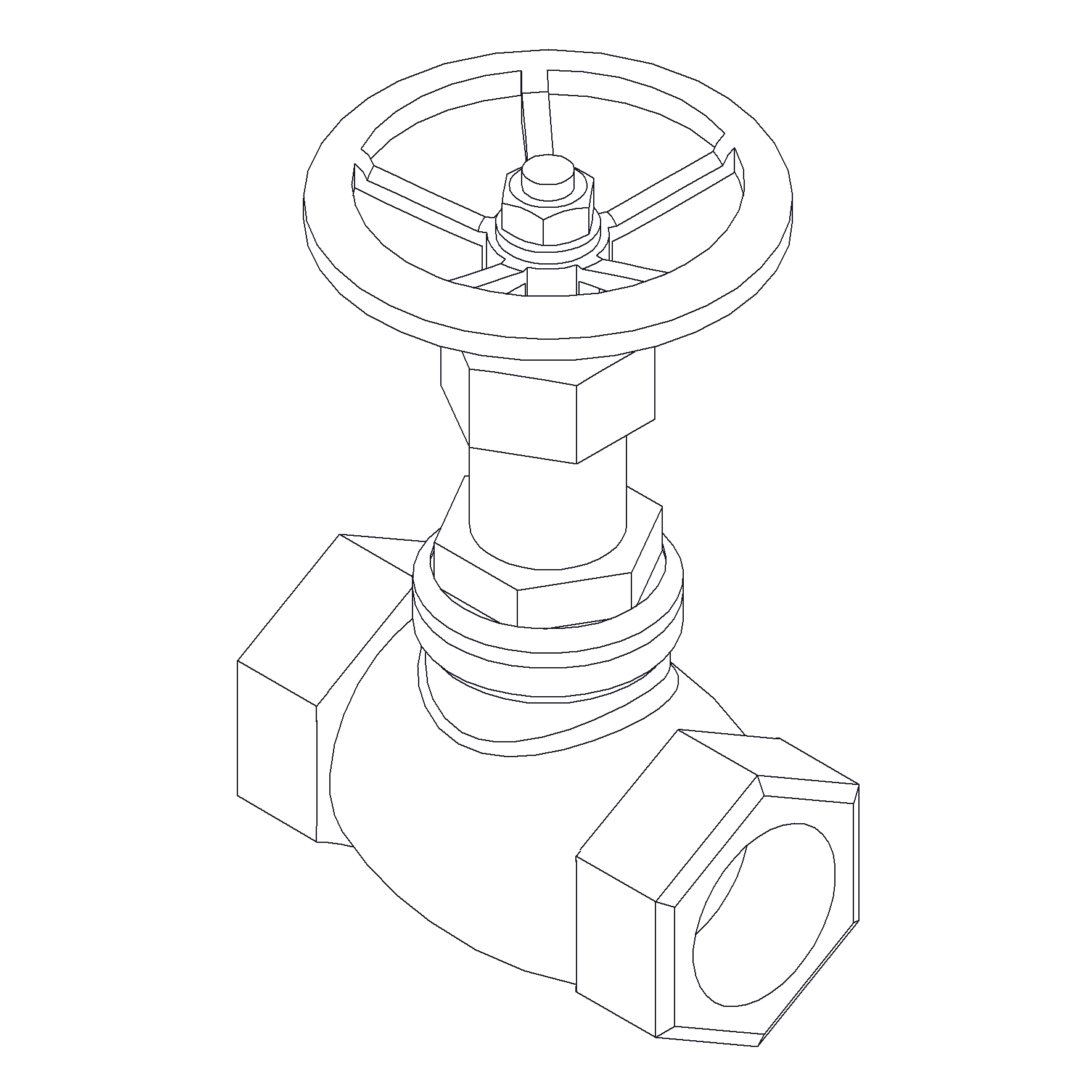

Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 456022 |
| Material Body | Bronze |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Design Code | DIN 3844 |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water |
| Size | 10 |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | GLOBE |
| Item Number | 150-00000108 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | SDNR |
Partslist and details

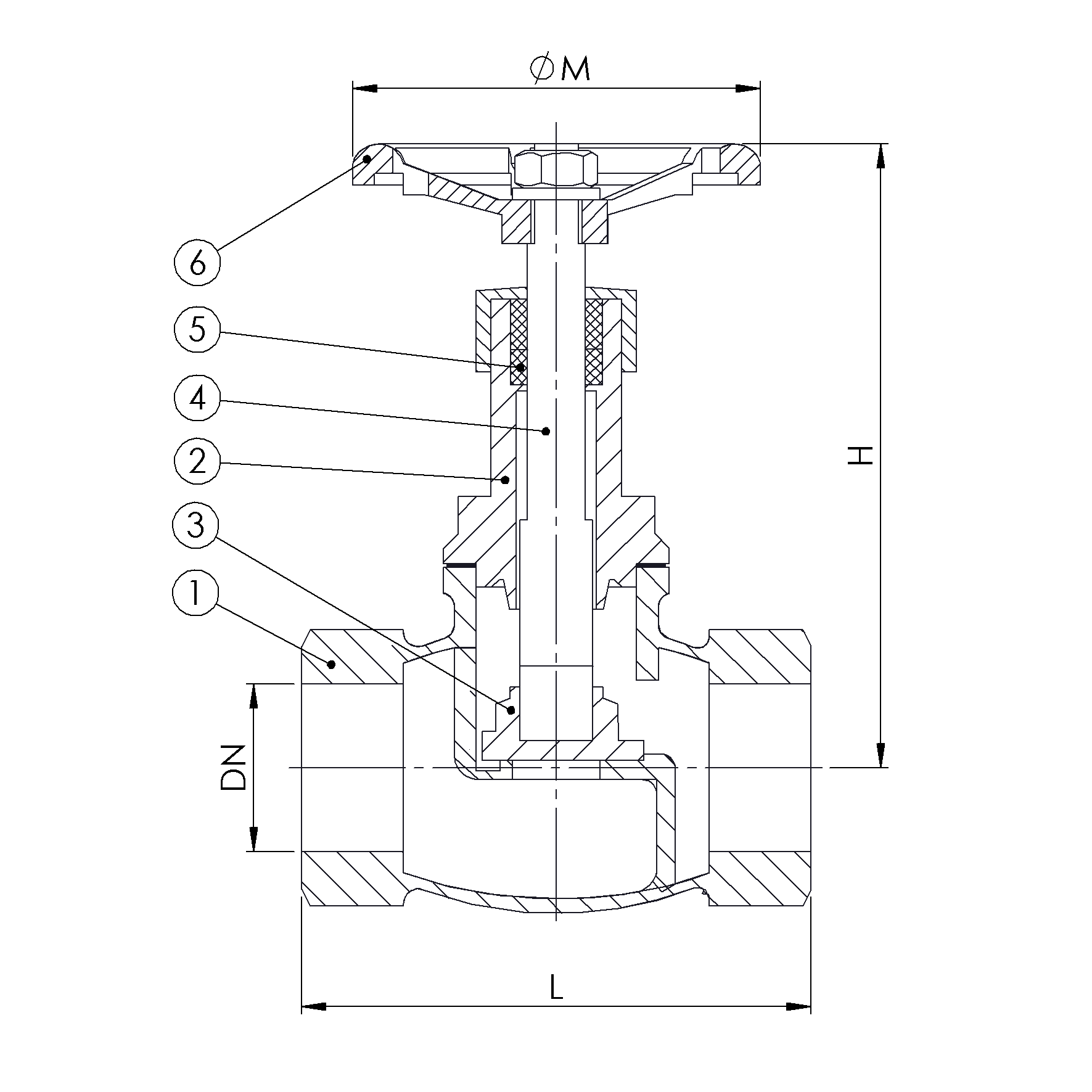

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 6 | Handwheel | Aluminium | - |
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Brass | Ms58 |
| 3 | Disc | Brass | Ms58 |
| 4 | Stem | Brass | Ms58 |
| 5 | Packing | Graphite | - |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø M |
|---|---|---|---|---|---|---|
| 10 | 16 | 50 | 0.2 | 3/8" | 70 | 50 |
