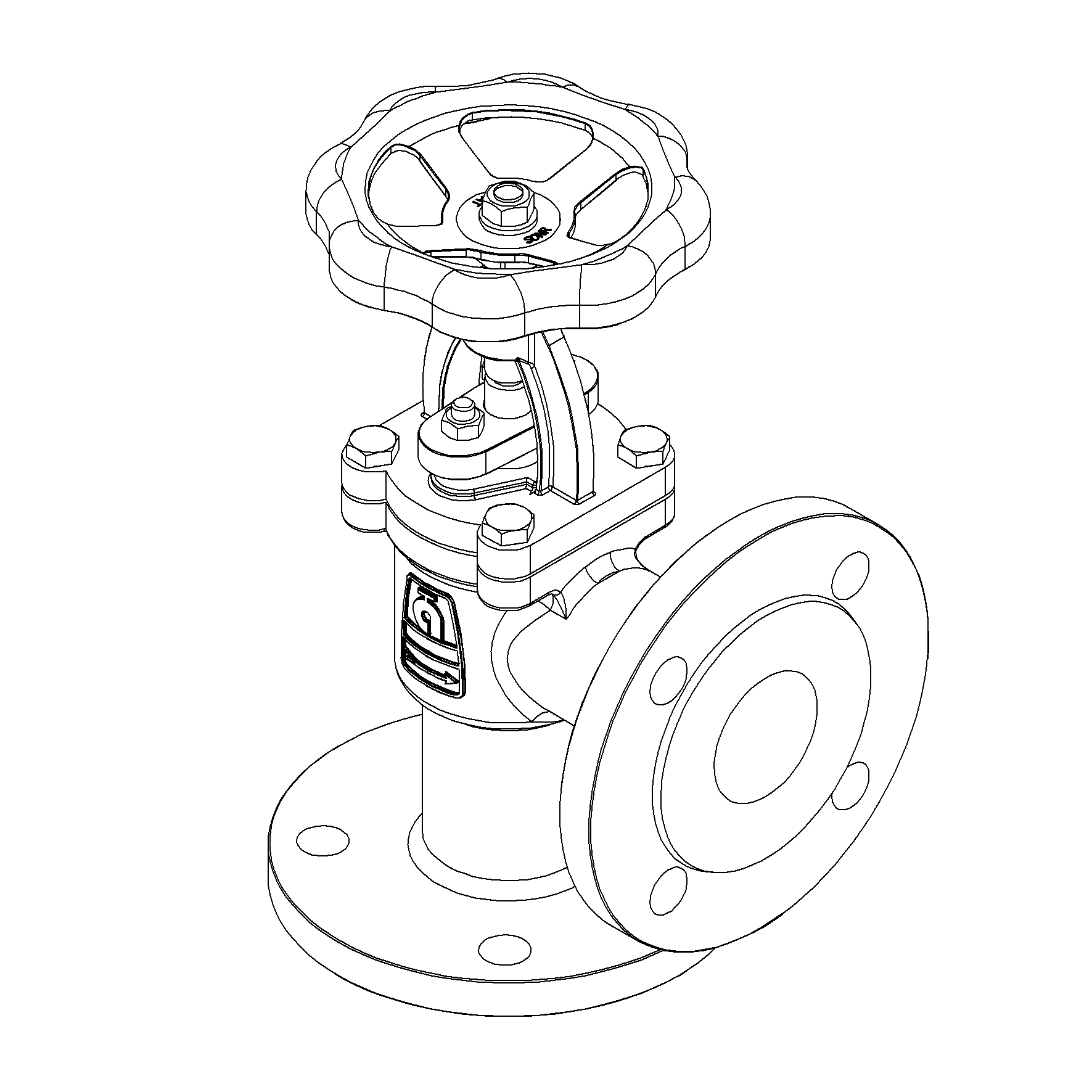

Globe Valve DN50 PN16

Angled type - SDNR
Item No.
150-00001990
Details
Angled type, RG5 body, metal seated globe valve with rising stem. Bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 458922
Remark Connection: PN16
End Standard EN 1092-3
Face To Face Standard EN 558, series 8
Throughput Direction Angled
Variant SDNR
Material Disc Bronze
End Type Flanged
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 50
Material Body Bronze
Sub Category GLOBE
Item Number 150-00001990
Category Valve
Pressure Rating PN16

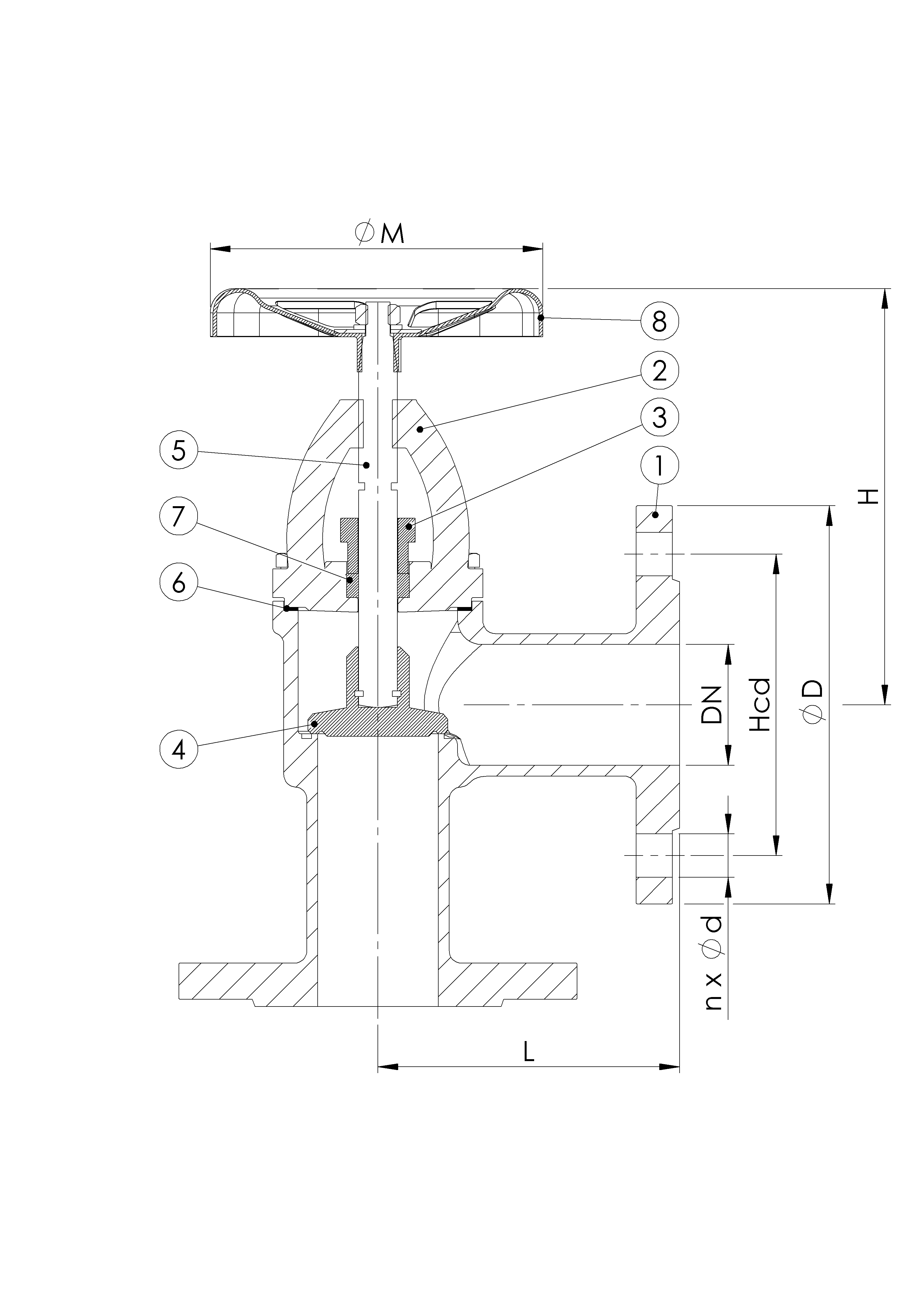

Partslist and details
PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Bronze CC 491K
3 Gland Bronze CC 491K
4 Disc Bronze CC 491K
5 Stem Brass CW 602N
6 Gasket Dixo 4000
7 Packing Graphite
8 Handwheel Nodular Cast Iron GGG40
- - - -


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
50 16 4x18 125 165 125 9.3 185 140
