Globe Valve DN50 PN16

Angled type - SDSL
Item No.
150-00001358
Details

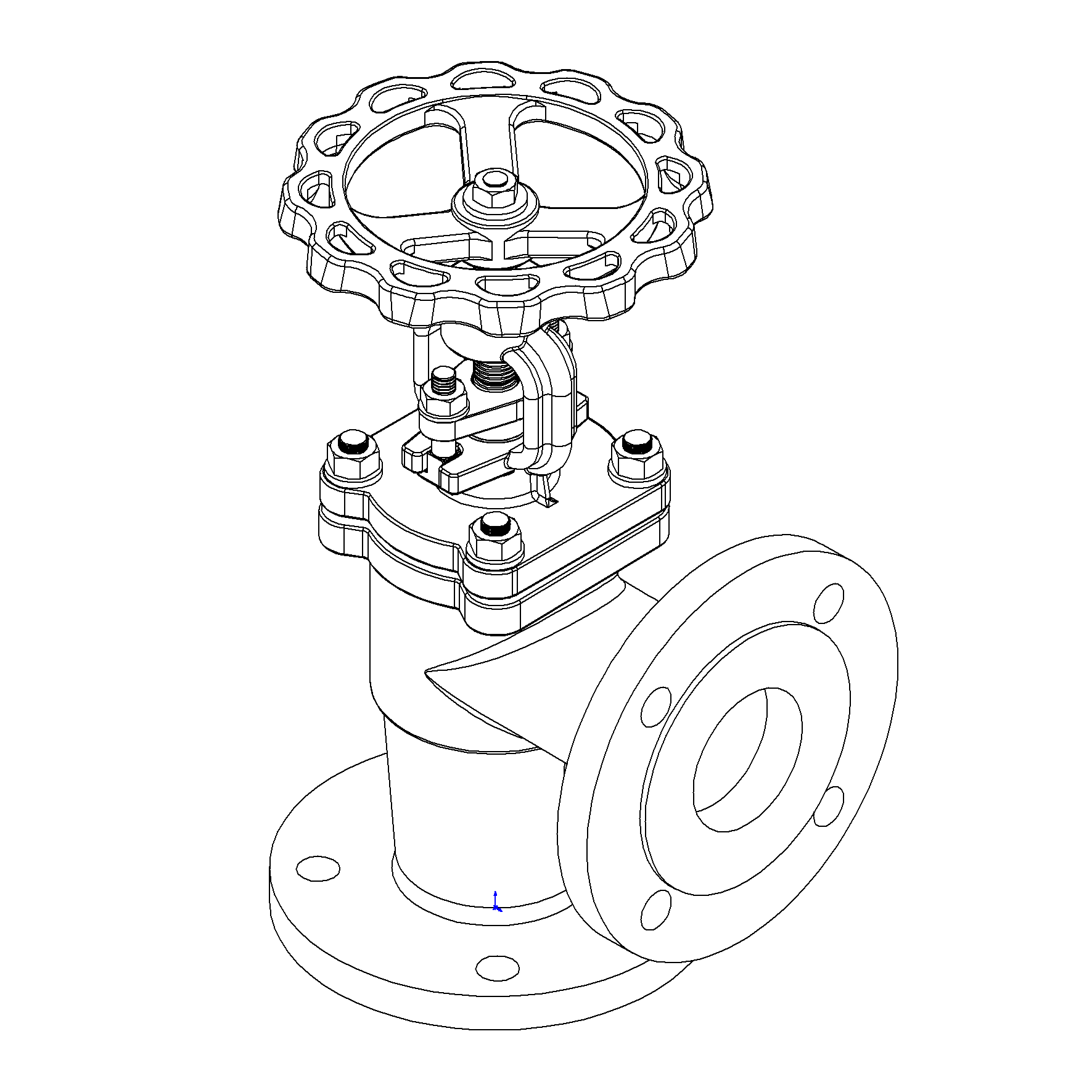

Angled type, Nodular Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 467102
Material Body Nodular Cast Iron, GGG40.3
Remark Connection: PN16
Throughput Direction Angled
Face To Face Standard EN 558, series 8
End Standard EN 1092-2
Design Code DIN 86251
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water
Size 50
Material Seat Stainless Steel, 304
Material Disc Stainless Steel, 420
Pressure Rating PN16
End Type Flanged
Sub Category GLOBE
Item Number 150-00001358
Category Valve
Variant SDSL

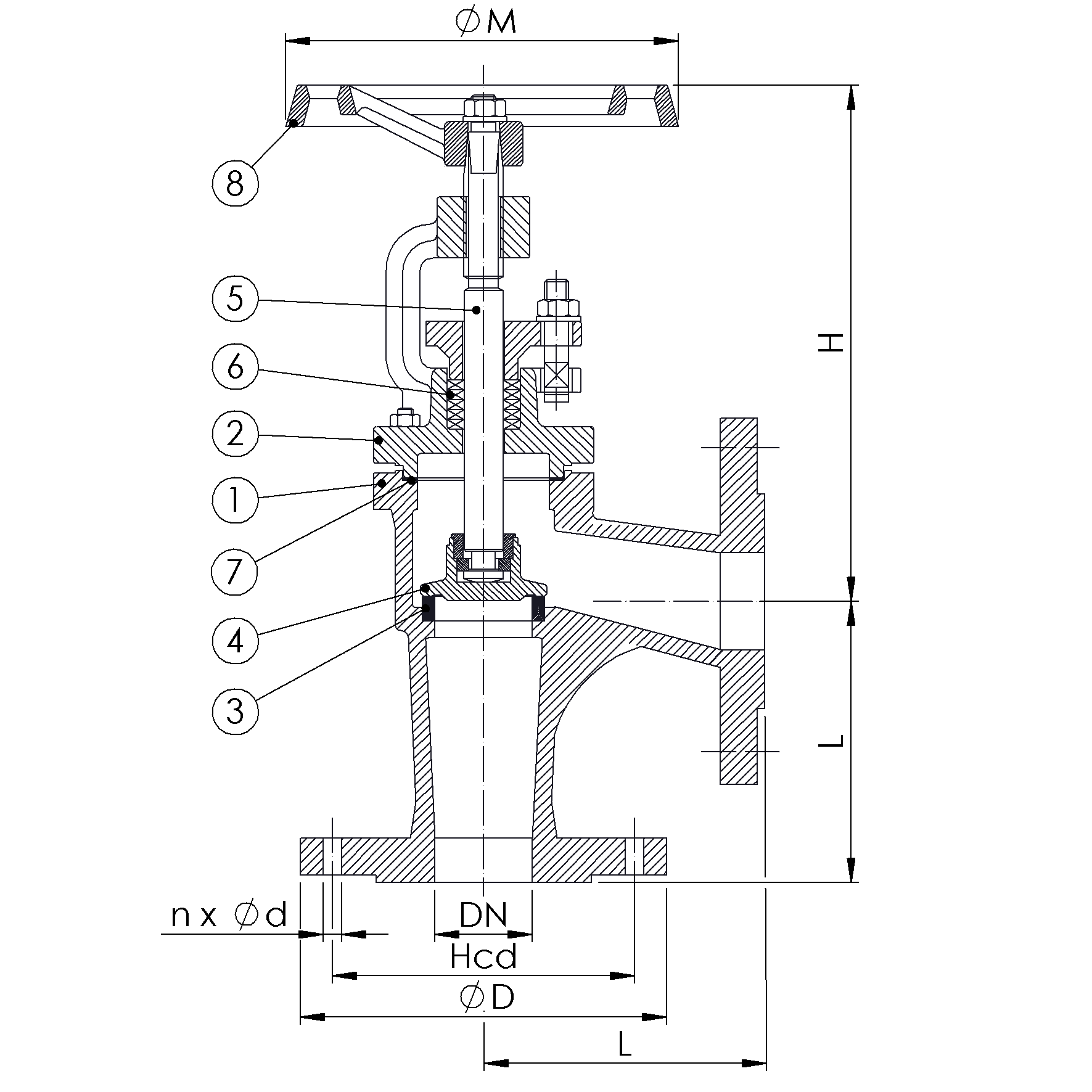

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Bonnet Nodular Cast Iron GGG40.3
3 Seat Stainless Steel 1.4301
4 Disc Stainless Steel 1.4021
5 Stem Stainless Steel 1.4021
6 Gland packing Graphite
7 Gasket Graphite
8 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
50 16 4x19 125 165 125 13 230 140
