Globe Valve DN50 PN16

Angled type - SDSL
Item No.
150-00000430
Details
Angled type, RG5 body, metal seated globe valve with rising stem. Bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 458922
Material Body Bronze
Remark Connection: PN16
Throughput Direction Angled
Face To Face Standard EN 558, series 8
End Standard EN 1092-3
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 50
Material Disc Bronze
Pressure Rating PN16
End Type Flanged
Sub Category GLOBE
Item Number 150-00000430
Category Valve
Variant SDSL

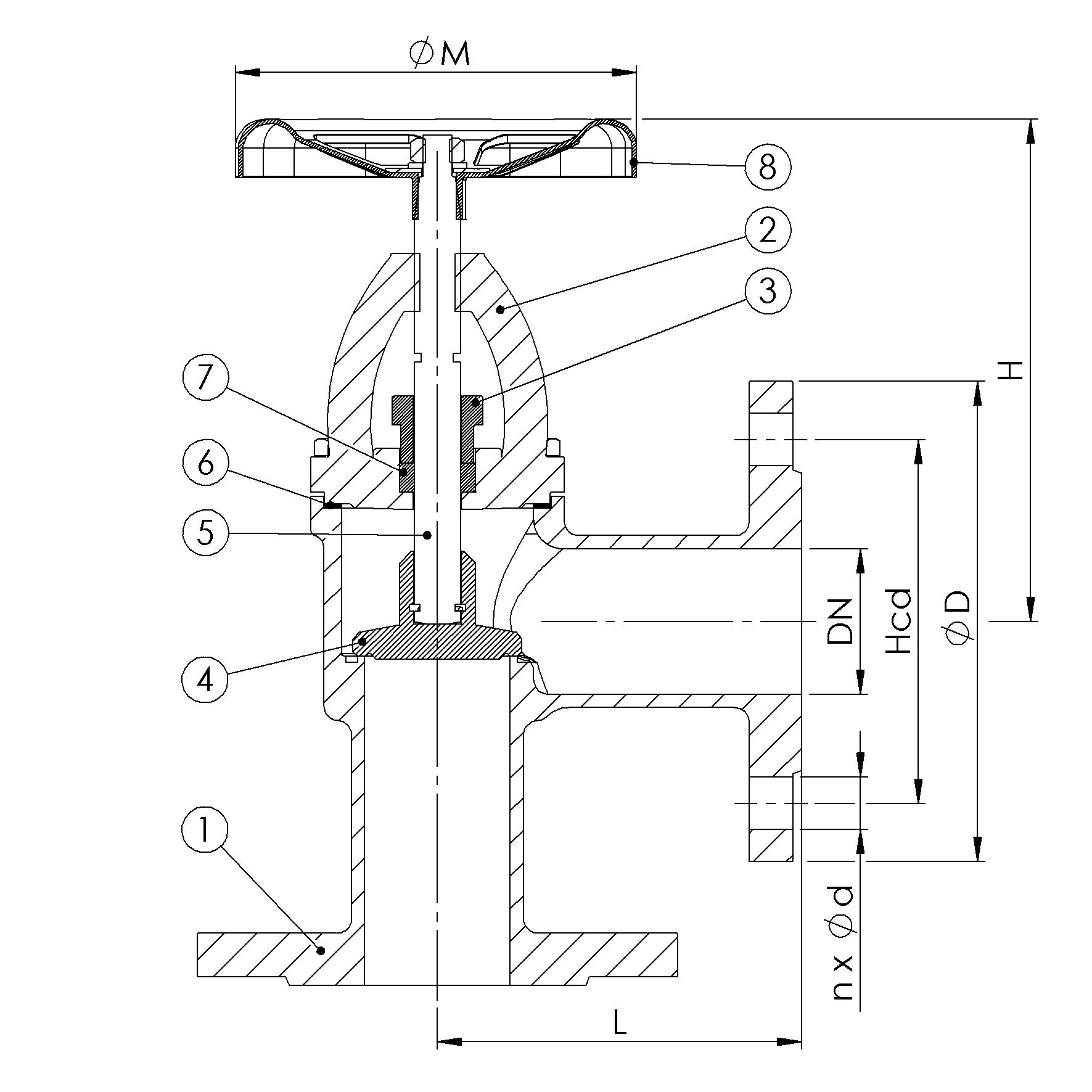

Partslist and details
PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Bronze CC 491K
3 Gland Bronze CC 491K
4 Disc Bronze CC 491K
5 Stem Brass CW 602N
6 Gasket Dixo 4000
7 Packing Graphite
8 Handwheel Nodular Cast Iron GGG40


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
50 16 4x18 125 165 125 9.3 185 140
