Globe Valve DN50 PN16

Straight type - SDSL
Item No.
150-00000327
Details

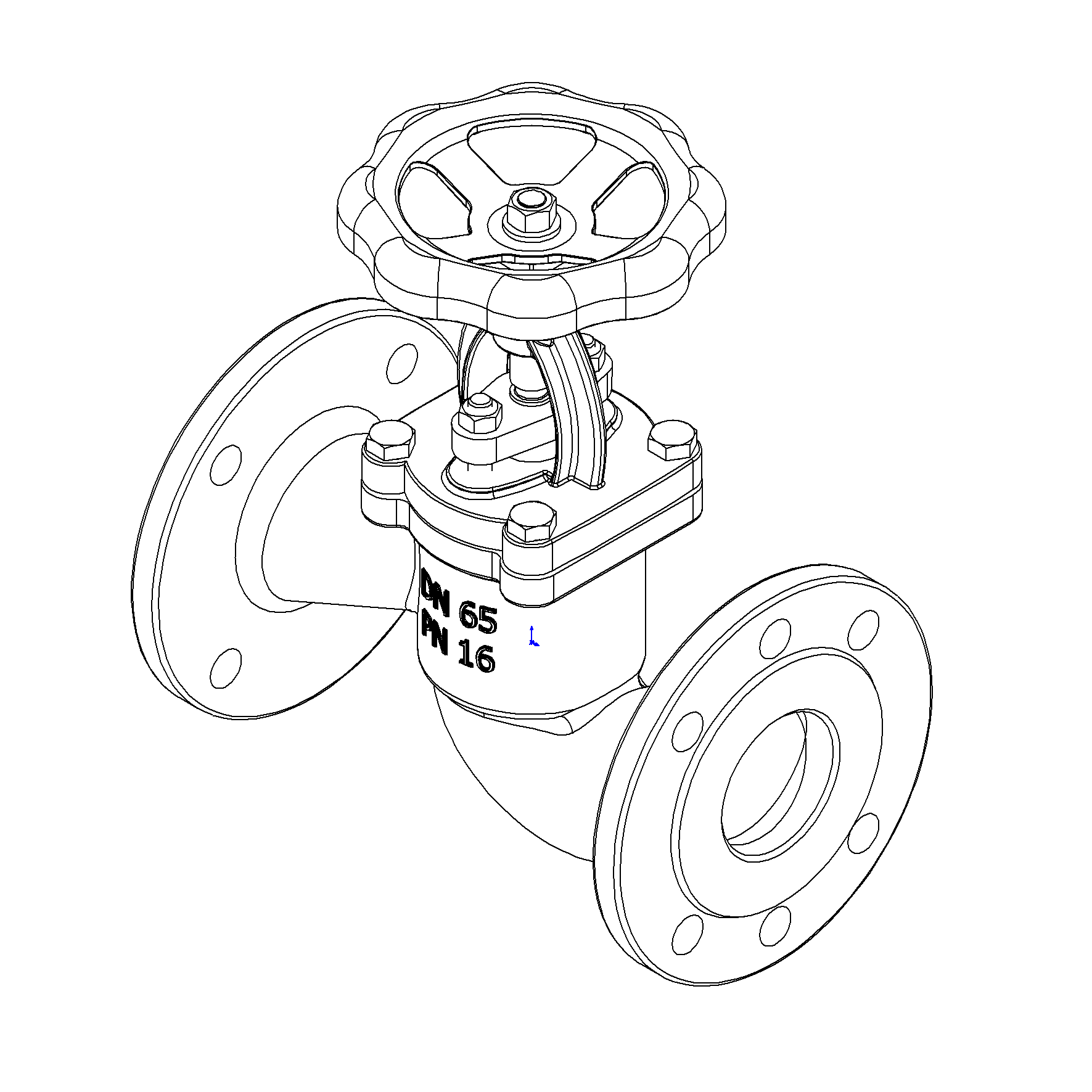

Straight type, RG5 body, metal seated globe valve with rising stem. Bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 458822
Remark Connection: PN16
End Standard EN 1092-3
Face To Face Standard EN 558, series 1
Throughput Direction Straight
Variant SDSL
Material Disc Bronze
End Type Flanged
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 50
Sub Category GLOBE
Item Number 150-00000327
Category Valve
Pressure Rating PN16
Partslist and details

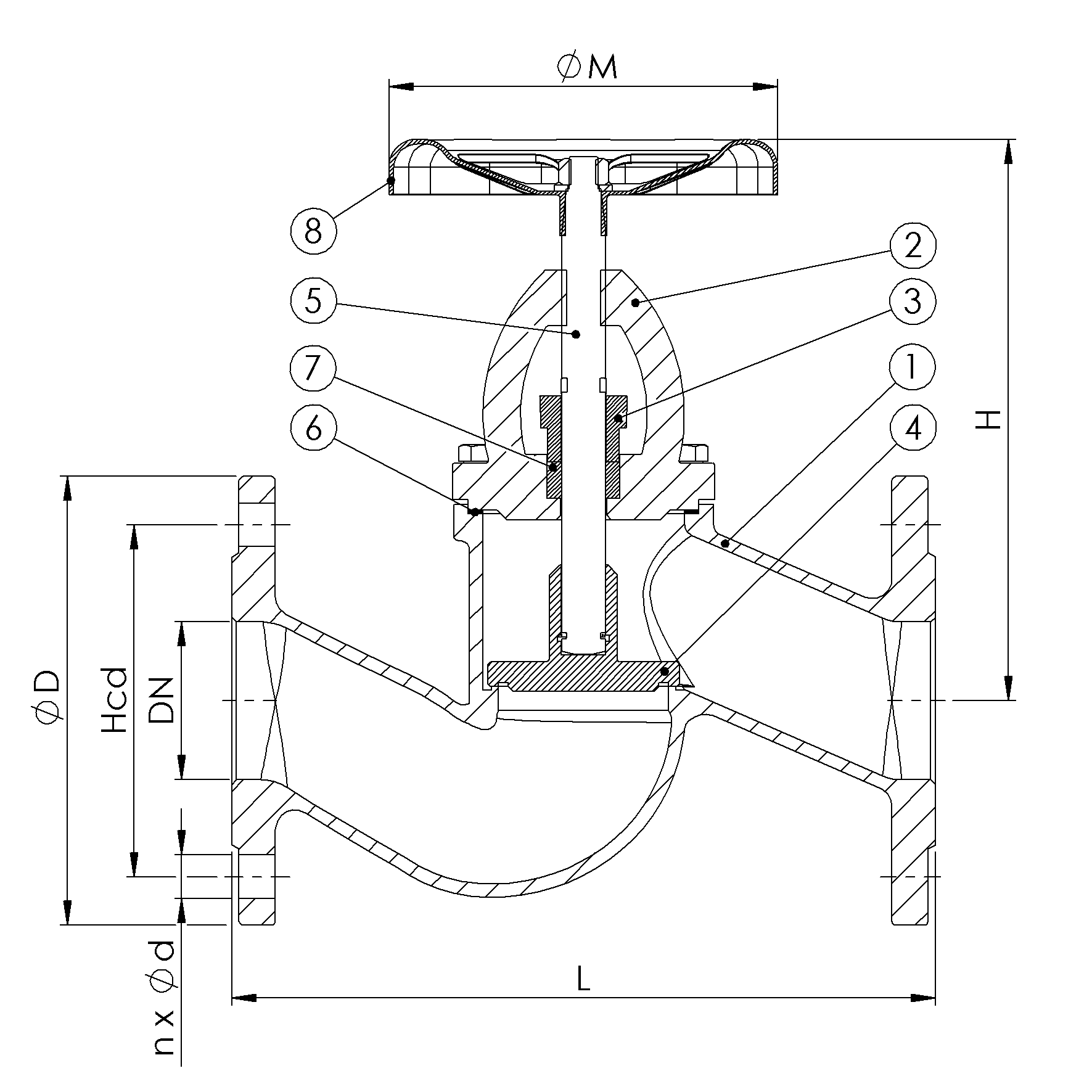

PARTSLIST
No Part Material Code
1 Body Bronze CC 491K
2 Bonnet Bronze CC 491K
3 Gland Bronze CC 491K
4 Disc Bronze CC 491K
5 Stem Brass CW 602N
6 Gasket Dixo 4000
7 Packing Graphite
8 Handwheel Nodular Cast Iron GGG40


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
50 16 4x18 125 165 230 9.6 205 140
