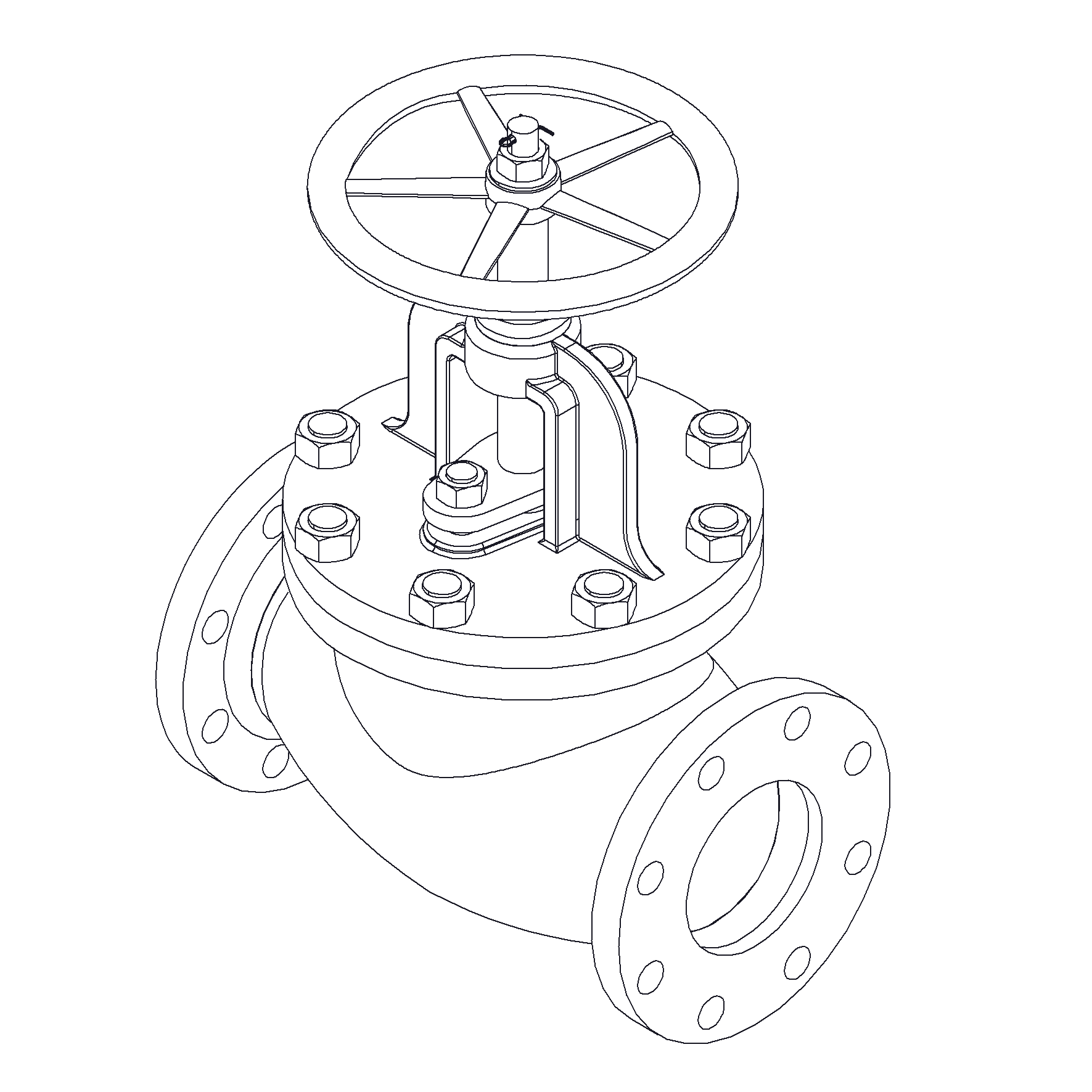

Globe Valve DN50 JIS 16K
Details
Straight type, Cast Iron body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7377 |
| Material Body | Cast Iron |
| Remark | Connection: JIS 16K |
| Throughput Direction | Straight |
| End Standard | JIS B2239 |
| Design Code | JIS F7309 |
| Standard | JIS |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 50 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Pressure Rating | JIS 16K |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00001886 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
| Variant | SDNR |
Partslist and details

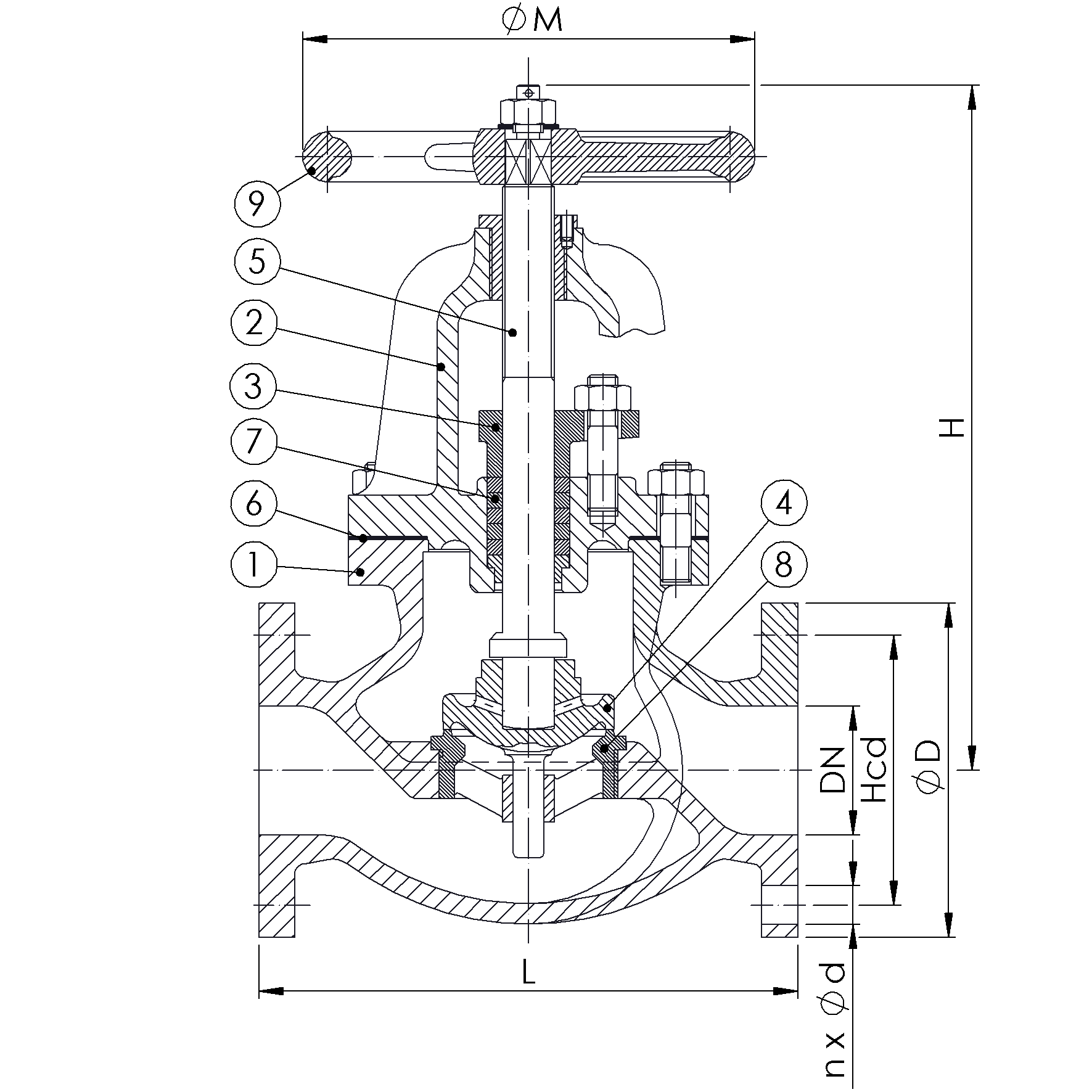

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | HT200 |
| 2 | Bonnet | Cast Iron | HT200 |
| 3 | Gland | Brass | H62 |
| 4 | Disc | Bronze | ZCuSn5Pb5Zn5 |
| 5 | Stem | Brass | H62 |
| 6 | Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Sealing ring | Bronze | ZCuSn5Pb5Zn5 |
| 9 | Handwheel | Cast Iron | HT200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 50 | 16 | 8x19 | 120 | 155 | 220 | 19.6 | 285 | 160 |
