Globe Valve DN40 PN40

Straight type - SDSL - bellow sealed
Item No.
150-00000994
Details

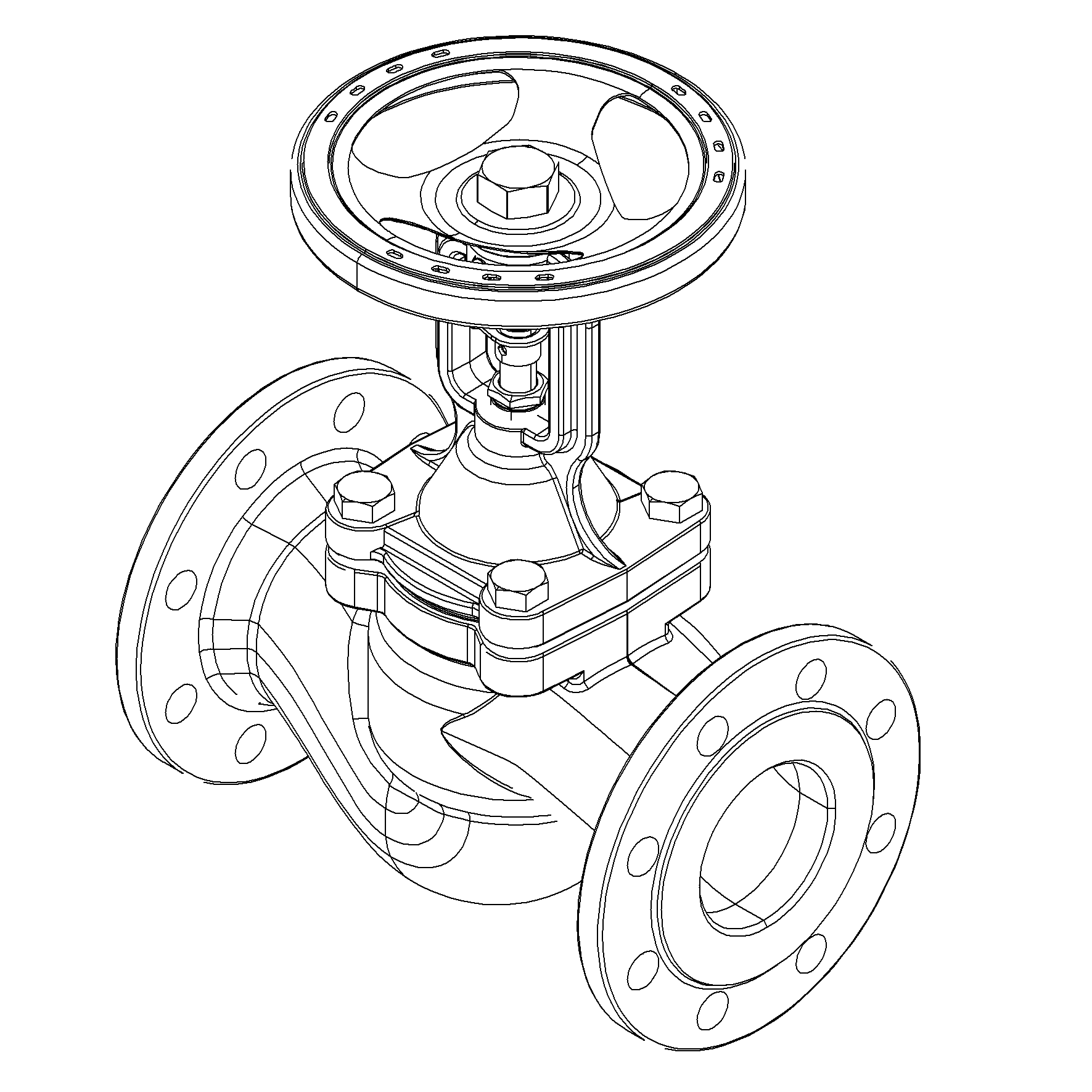

Straight type, Cast Steel body, metal seated globe valve with non-rising bellow sealed stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 467064
Material Body Cast Steel
Remark Connection: PN40
Throughput Direction Straight
Face To Face Standard EN 558, series 1
End Standard EN 1092-1
Design Code EN 13709
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 40
Material Disc Stainless Steel, 420
Pressure Rating PN40
End Type Flanged
Sub Category GLOBE
Item Number 150-00000994
Category Valve
Inspection Standard EN 12266
Variant SDSL
Execution Bellow Sealed
Max temperature 400°C

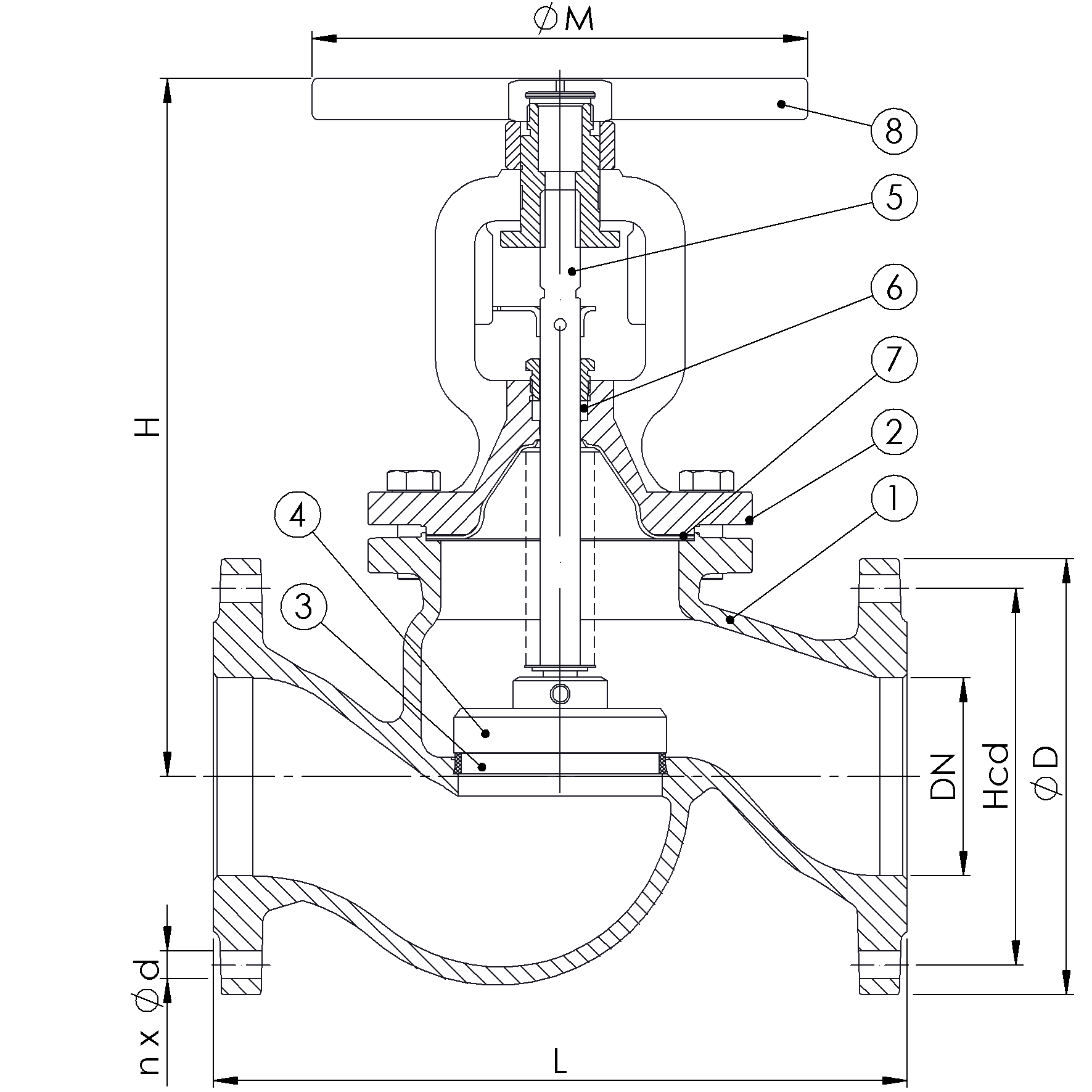

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Steel GS-C25
2 Bonnet Cast Steel GS-C25
8 Bellow Stainless Steel 1.4541
3 Disc Stainless Steel 1.4021
4 Stem Stainless Steel 1.4305
5 Gland packing Graphite
6 Gasket Graphite + CrNiSt
7 Handwheel Cast Iron -


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
40 40 4x18 110 150 200 9.8 220 160
