Globe Valve DN40 PN16

Straight type - SDNR
Item No.
150-00000251
Details

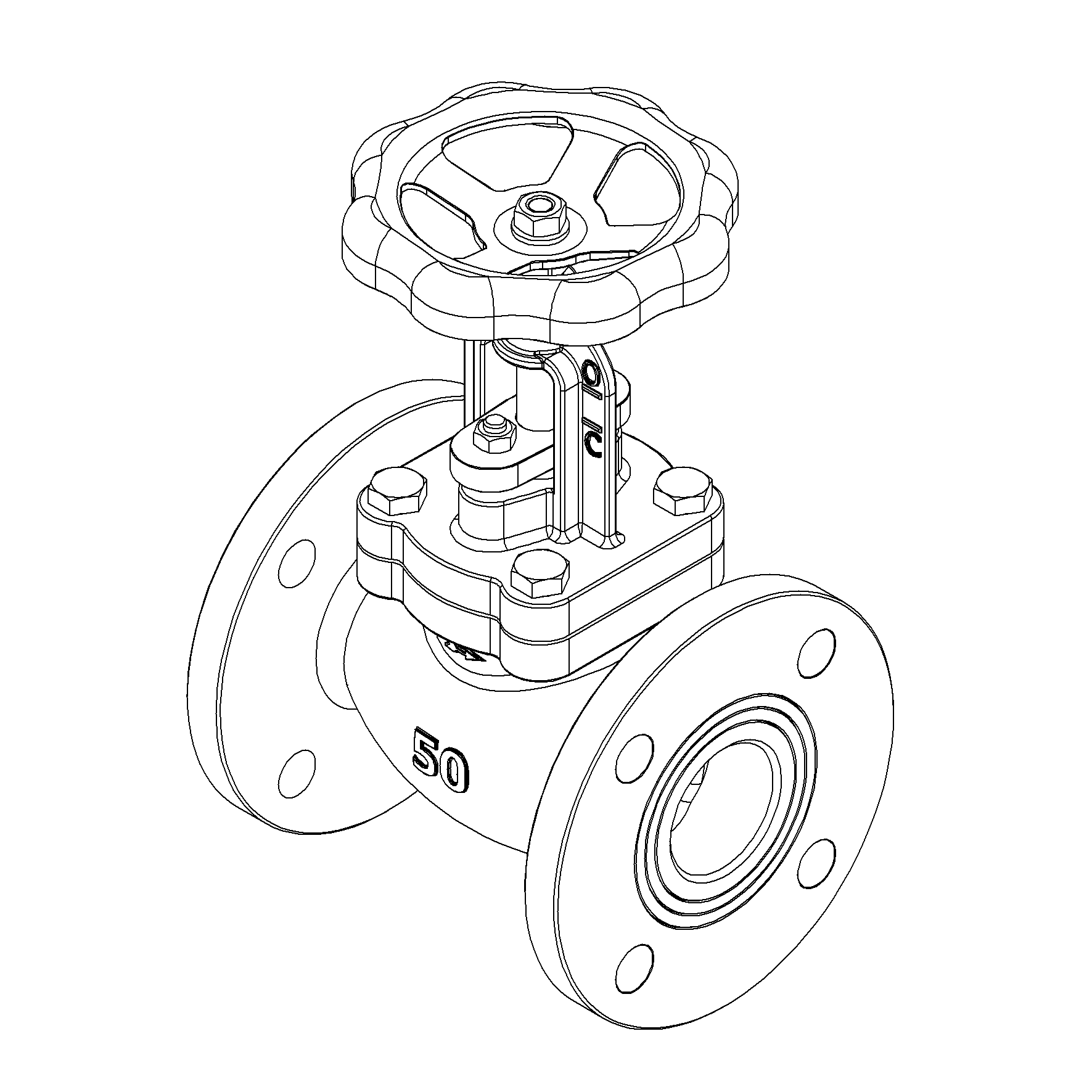

Straight type, RG10 body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
More Information
Price View Price Range
Product Group 457432
Material Body Bronze
Remark Connection: PN16
Throughput Direction Straight
End Standard EN 1092-3
Standard DIN
Application Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 40
Material Disc Bronze
Pressure Rating PN16
End Type Flanged
Sub Category GLOBE
Item Number 150-00000251
Category Valve
Variant SDNR
Partslist and details

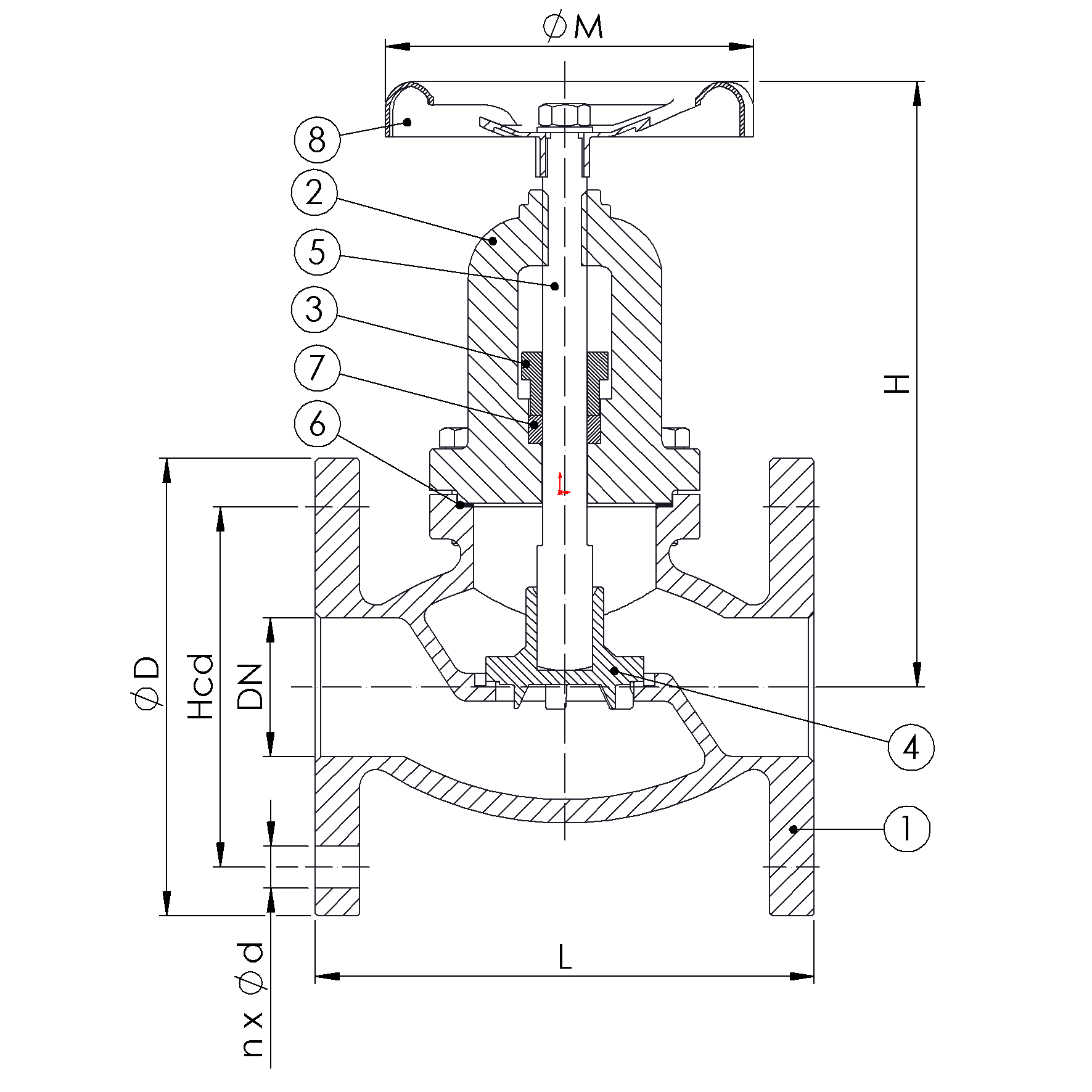

PARTSLIST
No Part Material Code
1 Body Bronze CC 482K
2 Bonnet Bronze CC 482K
3 Gland Bronze CC 482K
4 Disc Bronze CC 481K
5 Stem Aluminium Bronze CC 333G
6 Gasket Dixo 4000
7 Packing Graphite
8 Handwheel Nodular Cast Iron GGG40


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
40 16 4x18 110 150 150 8.5 205 140
