Globe Valve DN40 JIS 5K

Angled type - SDNR
Item No.
150-00001834
Details

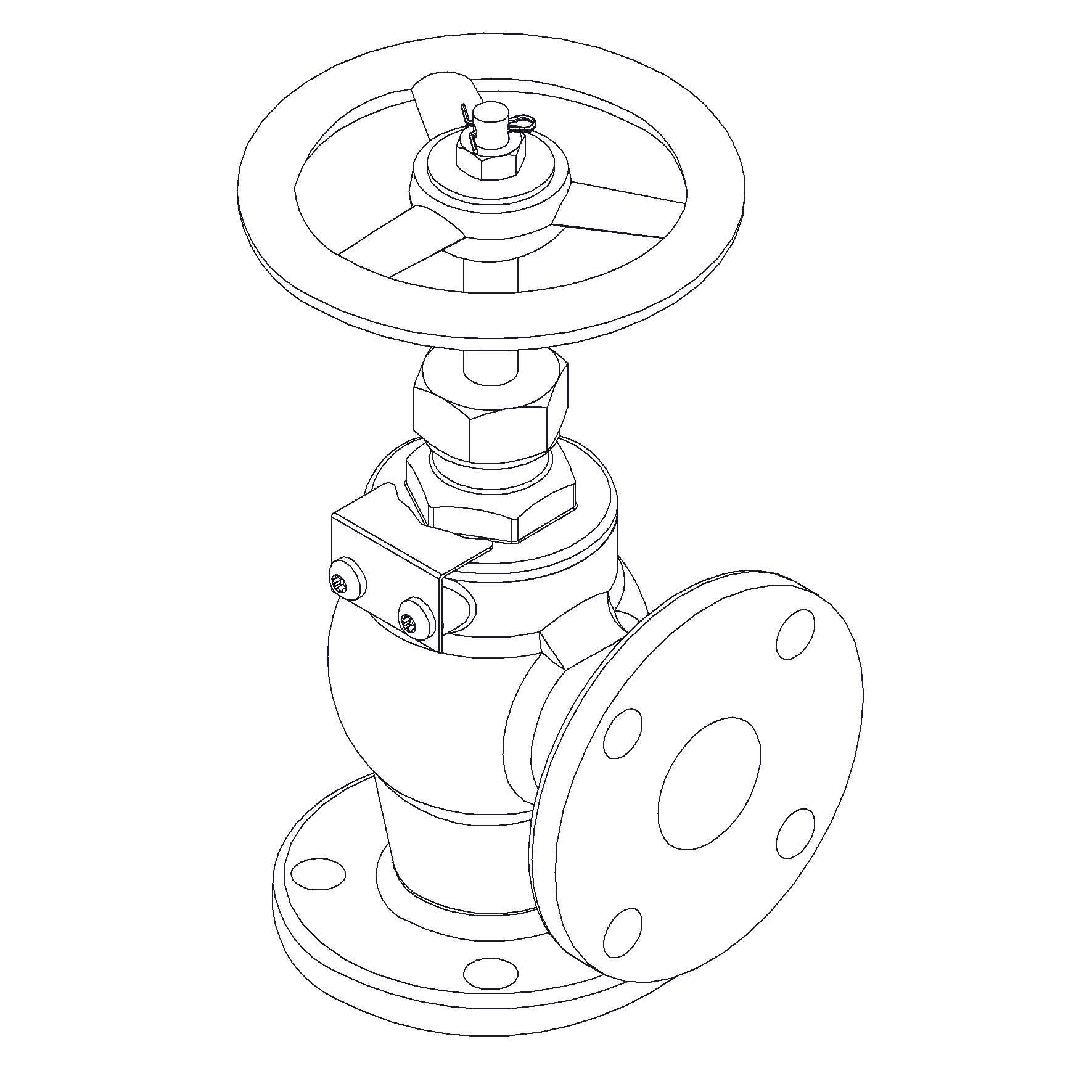

Angled type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges.
More Information
More Information
Product Group F-7352
Remark Connection: JIS 5K
End Standard JIS B2240
Inspection Standard JIS F7400
Throughput Direction Angled
Variant SDNR
Material Disc Brass
End Type Flanged
Design Code JIS F7302
Standard JIS
Application Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 40
Material Body Bronze
Sub Category GLOBE
Item Number 150-00001834
Category Valve
Pressure Rating JIS 5K

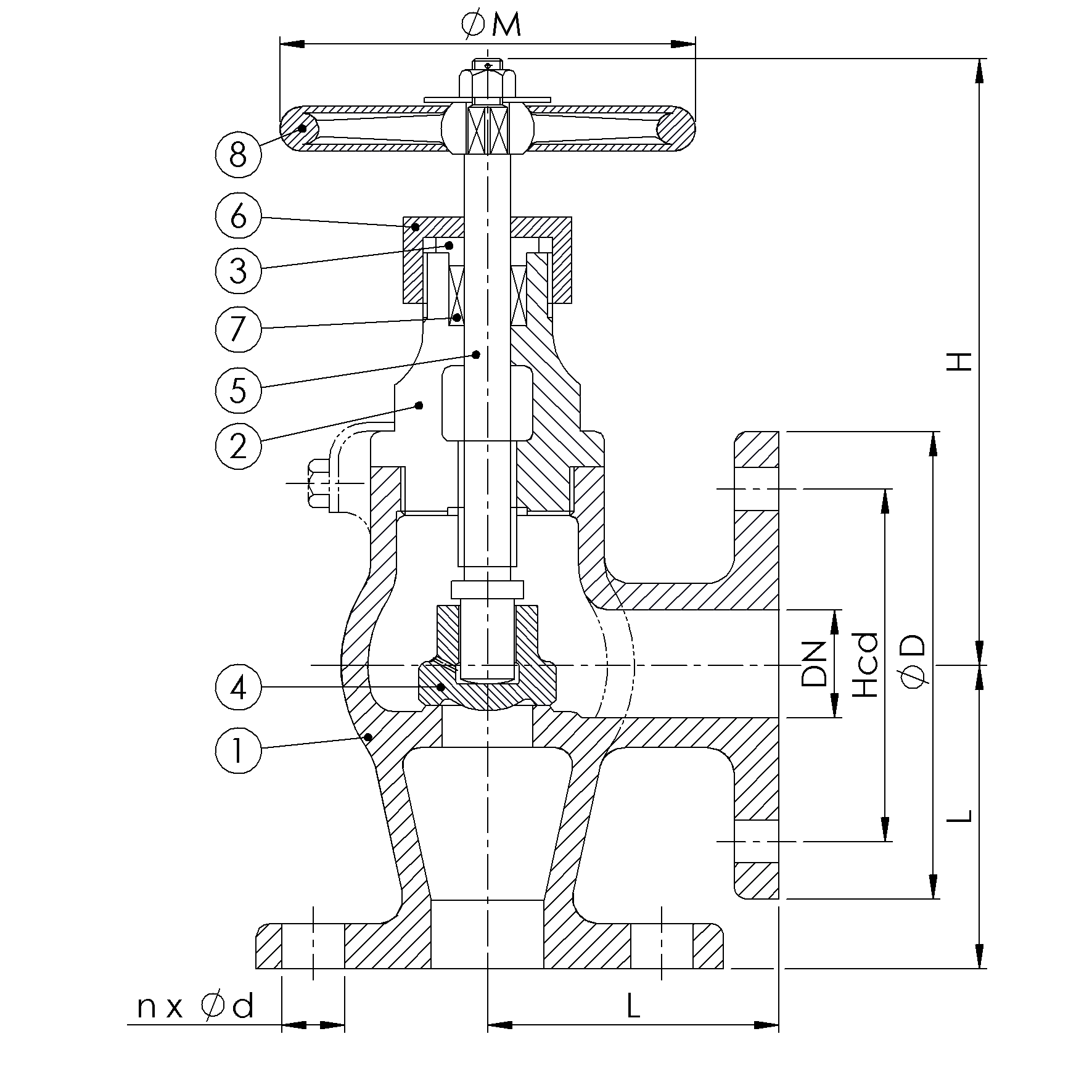

Partslist and details
PARTSLIST
No Part Material Code
1 Body Bronze BC 6
2 Bonnet Brass C 3771 BE
3 Gland Brass C 3771 BE
4 Disc Brass C 3771 BE
5 Stem Brass C 3771 BE
6 Gland nut Brass C 3771 BE
7 Packing Graphite
8 Handwheel Cast Iron FC 200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
40 5 4x15 95 120 85 6 165 140
