Globe Valve DN40 JIS 5K

Straight type - SDSL
Item No.
150-00001650
Details

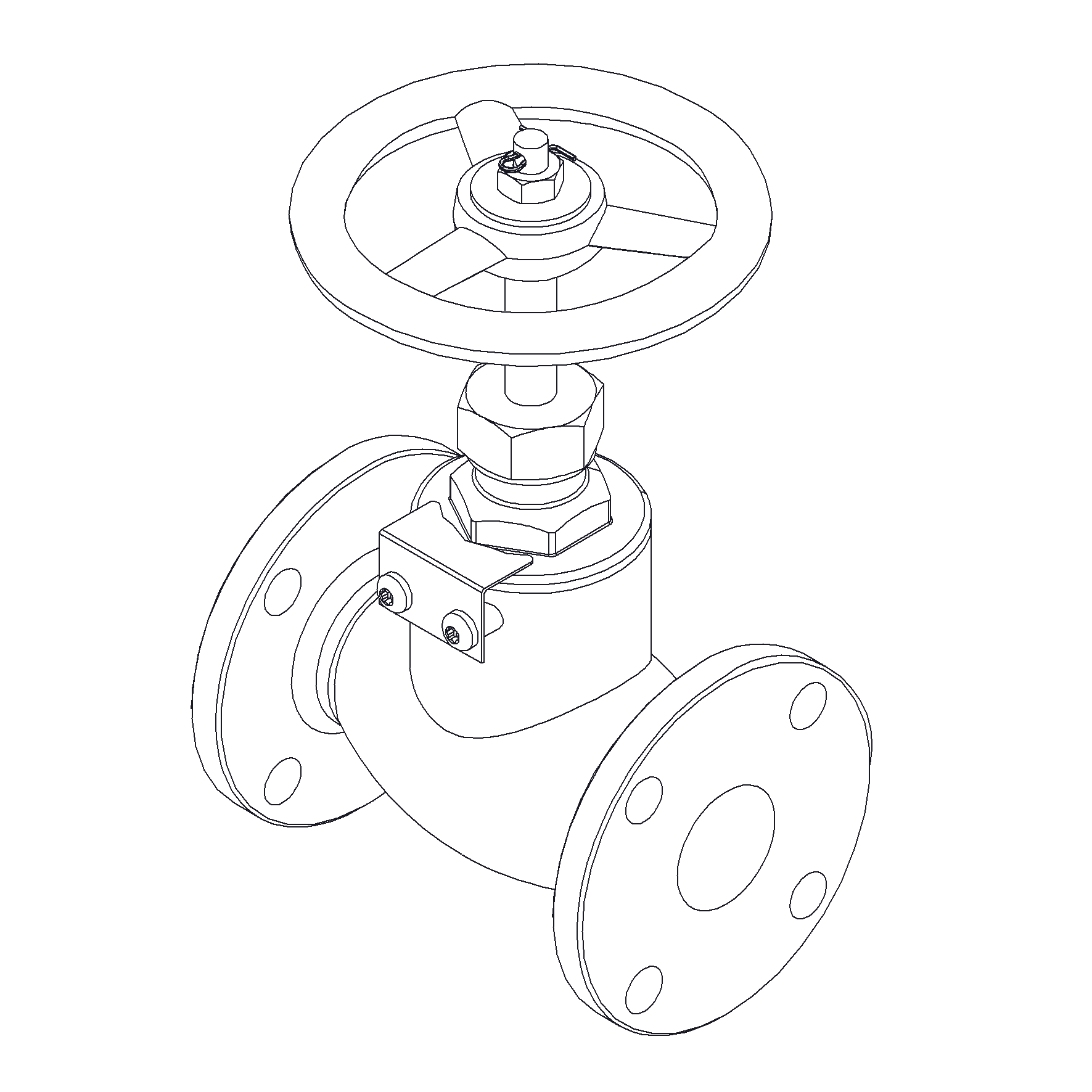

Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges.
More Information
More Information
Price View Price Range
Product Group F-7301
Material Body Bronze
Remark Connection: JIS 5K
Throughput Direction Straight
End Standard JIS B2240
Design Code JIS F7301
Standard JIS
Application Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water
Size 40
Material Disc Brass
Pressure Rating JIS 5K
End Type Flanged
Sub Category GLOBE
Item Number 150-00001650
Category Valve
Inspection Standard JIS F7400
Variant SDSL

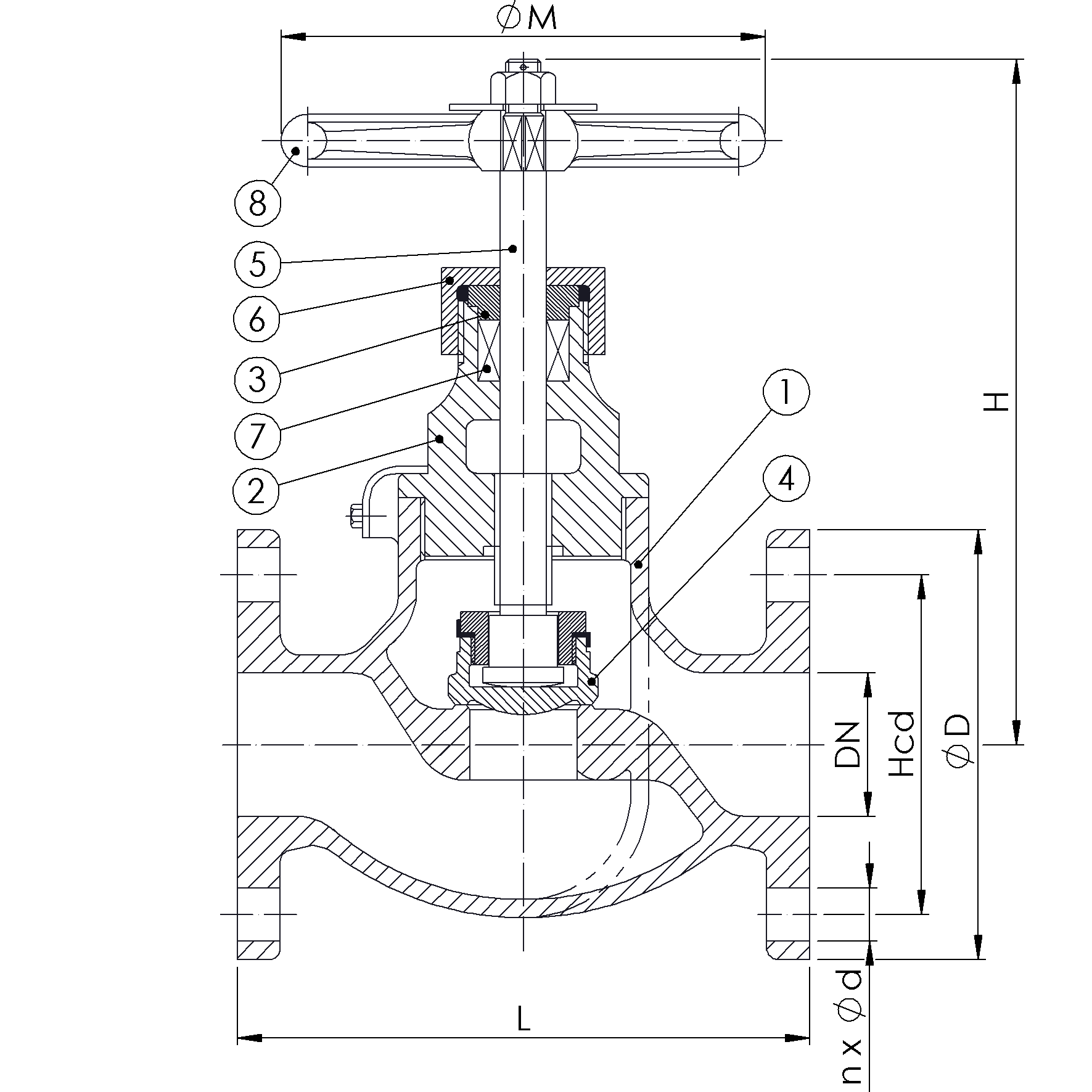

Partslist and details
PARTSLIST
No Part Material Code
1 Body Bronze BC 6
2 Bonnet Brass C 3771 BE
3 Gland Brass C 3771 BE
4 Disc Brass C 3771 BE
5 Stem Brass C 3771 BE
6 Gland nut Brass C 3771 BE
7 Packing Graphite
8 Handwheel Cast Iron FC 200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
40 5 4x15 95 120 160 6.5 190 140
