Globe Valve DN32 PN40

Straight type - SDSL - bellow sealed
Item No.

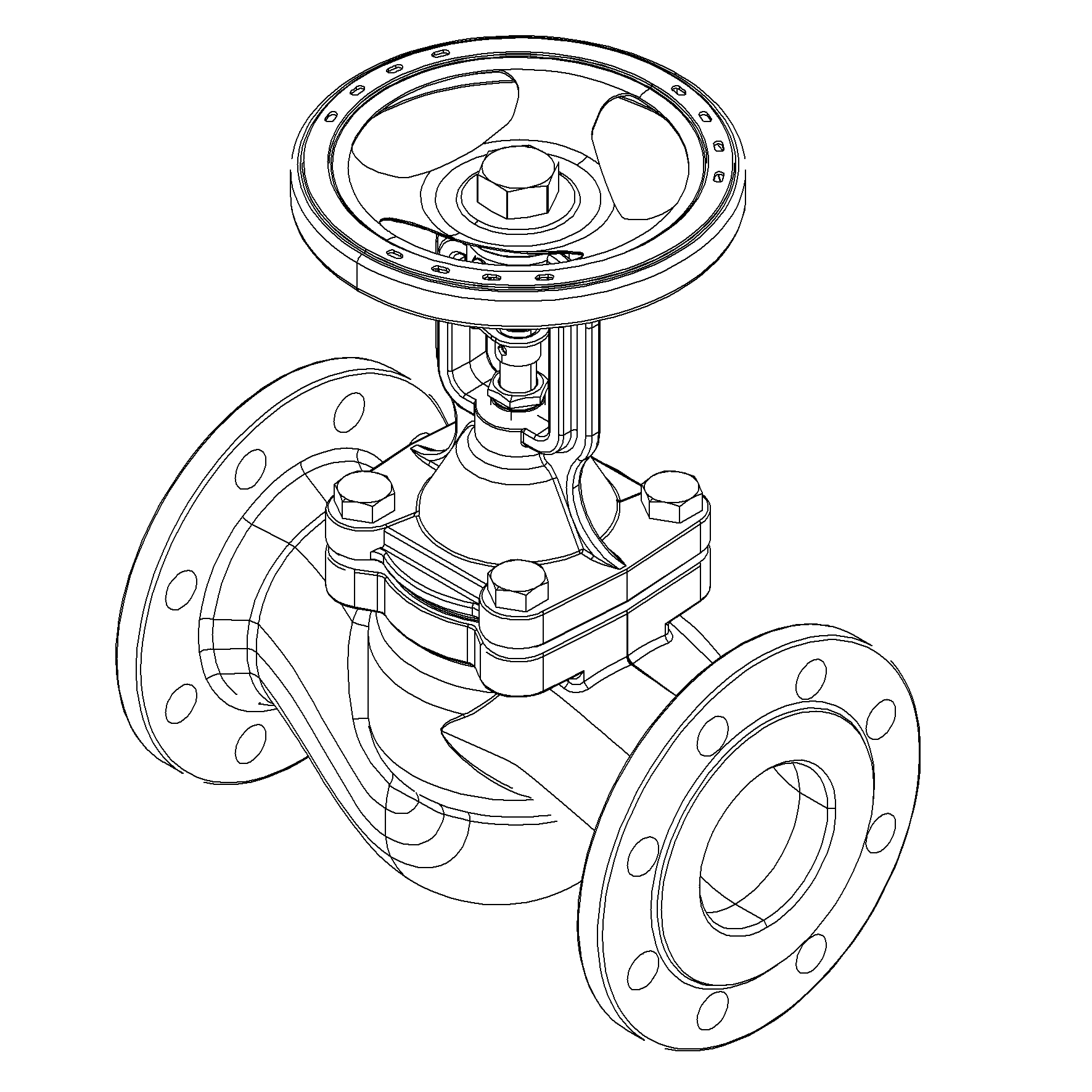

Straight type, Cast Steel body, metal seated globe valve with non-rising bellow sealed stem and bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 467064
Remark Connection: PN40
End Standard EN 1092-1
Face To Face Standard EN 558, series 1
Inspection Standard EN 12266
Execution Bellow Sealed
Max temperature 400°C
Throughput Direction Straight
Variant SDSL
Material Disc Stainless Steel, 420
End Type Flanged
Design Code EN 13709
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 32
Material Body Cast Steel
Sub Category GLOBE
Item Number 150-00000982
Category Valve
Pressure Rating PN40

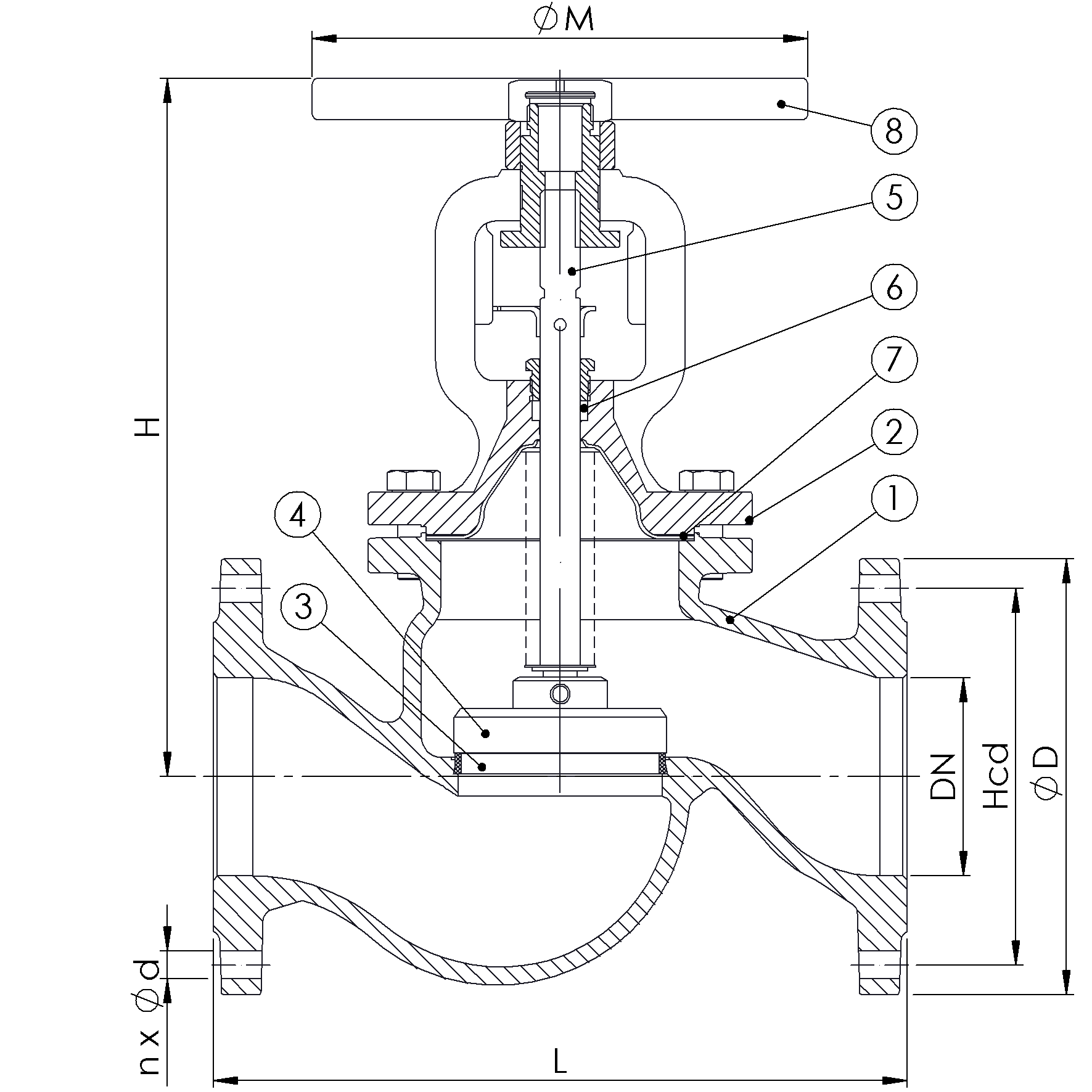

Partslist and details
No Part Material Code
1 Body Cast Steel GS-C25
2 Bonnet Cast Steel GS-C25
3 Disc Stainless Steel 1.4021
4 Stem Stainless Steel 1.4305
5 Gland packing Graphite
6 Gasket Graphite + CRNiSt
7 Handwheel Cast Iron -
8 Bellow Stainless Steel 1.4541

DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
32 40 4x18 100 140 180 9.5 220 160
