Globe Valve DN32 PN25

Straight type - SDSL - bellow sealed
Item No.
150-00000709
Details
Straight type, Nodular Cast Iron body, metal seated globe valve with non-rising bellow sealed stem and bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 467003
Remark Connection PN25
End Standard EN 1092-2
Face To Face Standard EN 558, series 1
Inspection Standard EN 12266
Execution Bellow Sealed
Max temperature +350°C
Throughput Direction Straight
Variant SDSL
Material Disc Stainless Steel, 420
End Type Flanged
Standard DIN
Application Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 32
Material Seat Stainless Steel, 410
Material Body Nodular Cast Iron, GGG40.3
Sub Category GLOBE
Item Number 150-00000709
Category Valve
Pressure Rating PN25

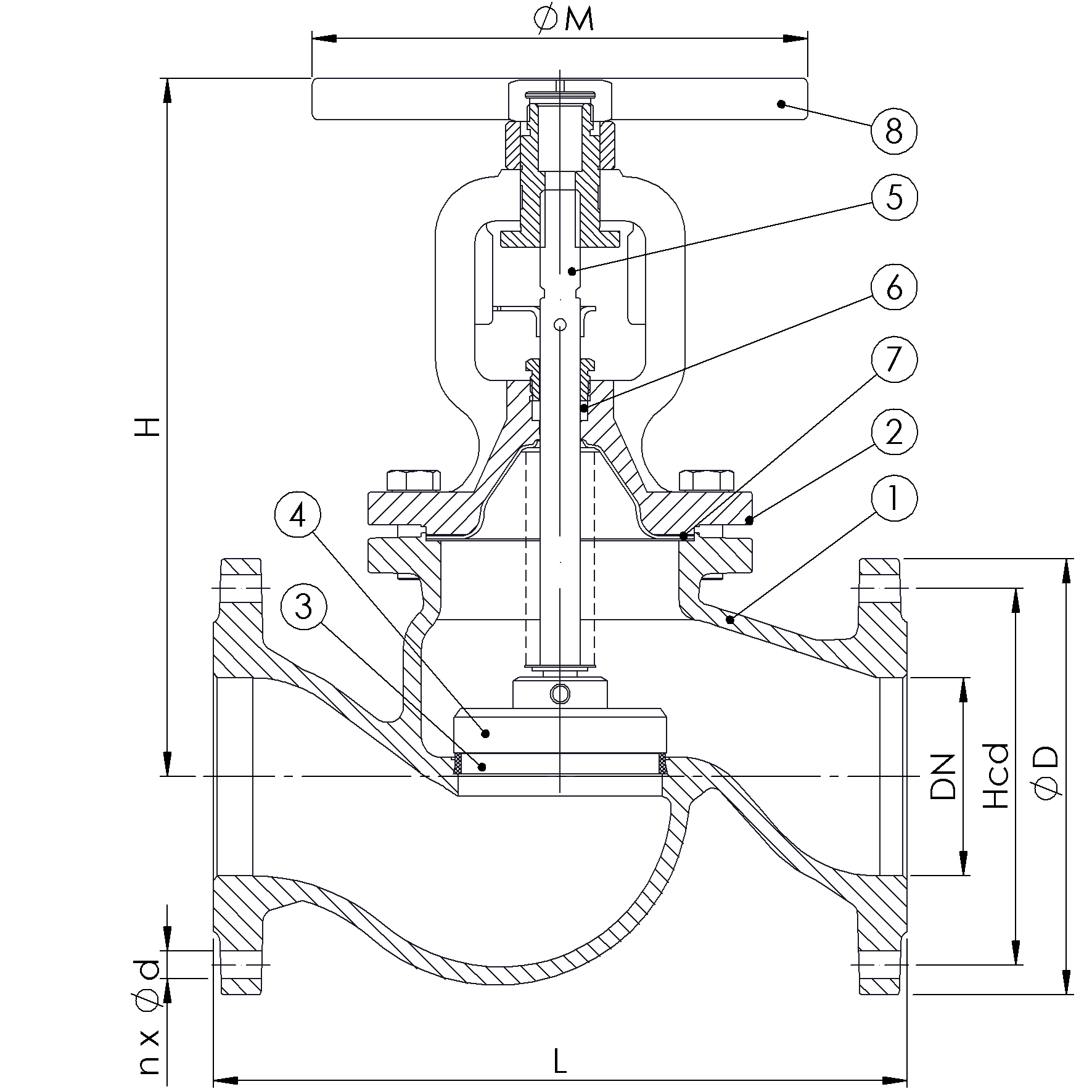

Partslist and details
PARTSLIST
No Part Material Code
1 Body Nodular Cast Iron GGG40.3
2 Bonnet Nodular Cast Iron GGG40.3
3 Seat Stainless Steel 1.4006
4 Disc Stainless Steel 1.4021
5 Stem Stainless Steel 1.4021
6 Gland packing Graphite
7 Gasket Graphite + CrNiSt
8 Handwheel Steel
9 Bellow Stainless Steel 1.4571


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
32 25 4x19 100 140 180 6.5 201 125
