Globe Valve DN32 PN16

Straight type - SDSL
Item No.
150-00001250
Details

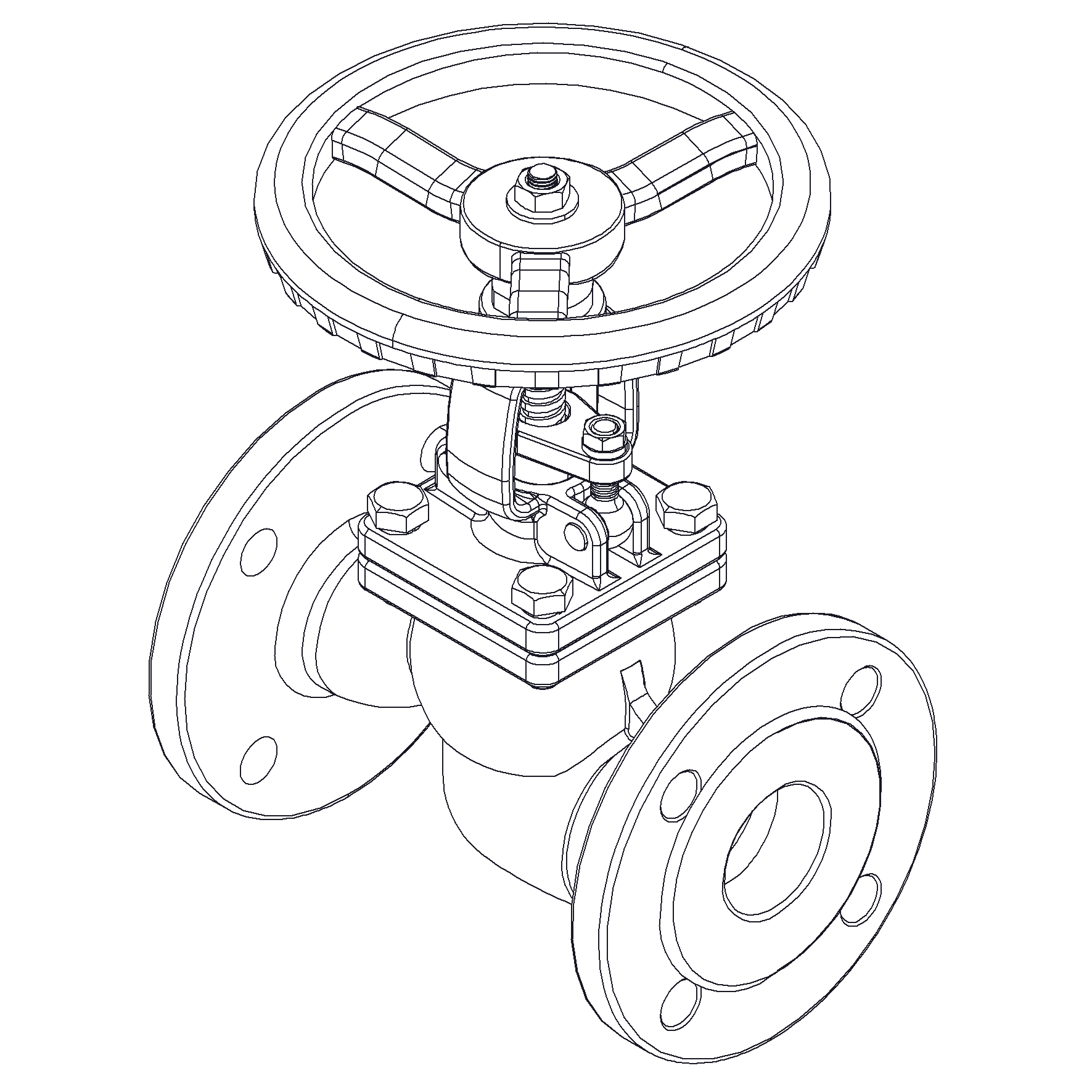

Straight type, Stainless Steel body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Price View Price Range
Product Group 467092
Material Body Stainless Steel, 316
Remark Connection: PN16
Throughput Direction Straight
Face To Face Standard EN 558, series 1
End Standard DIN 2633
Design Code ASME B16.34
Standard DIN
Application Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water
Size 32
Material Disc Stainless Steel, 316
Pressure Rating PN16
End Type Flanged
Sub Category GLOBE
Item Number 150-00001250
Category Valve
Inspection Standard EN 12266
Variant SDSL
Partslist and details

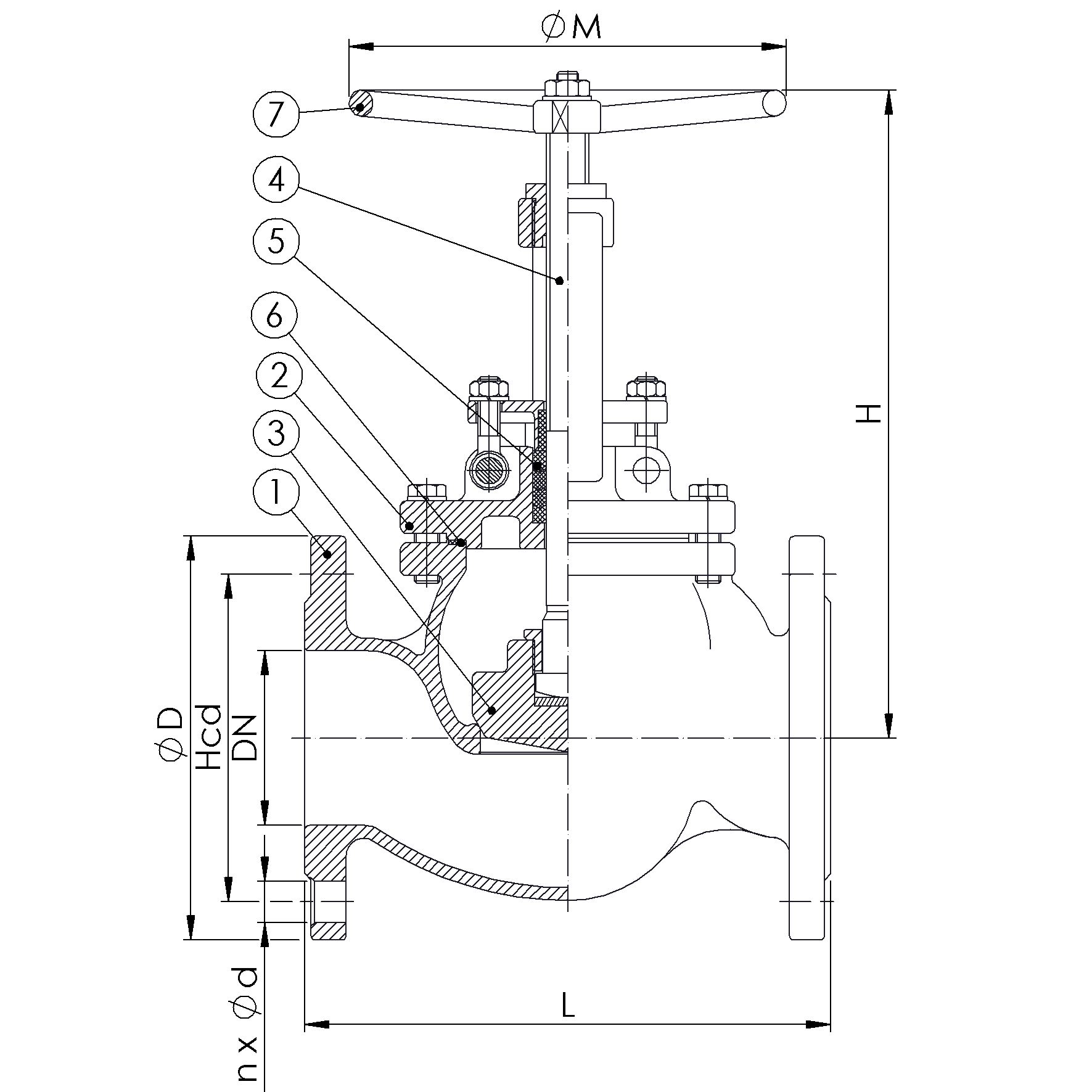

PARTSLIST
No Part Material Code
1 Body Stainless Steel 1.4408
2 Bonnet Stainless Steel 1.4408
3 Disc Stainless Steel 1.4408
4 Stem Stainless Steel SUS 316
5 Gland packing PTFE
6 Gasket PTFE
7 Handwheel Cast Iron FCD 400


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
32 16 4x18 100 140 180 7.7 243 160
