Globe Valve DN250 JIS 5K

Angled type - SDNR
Item No.
150-00001858
Details

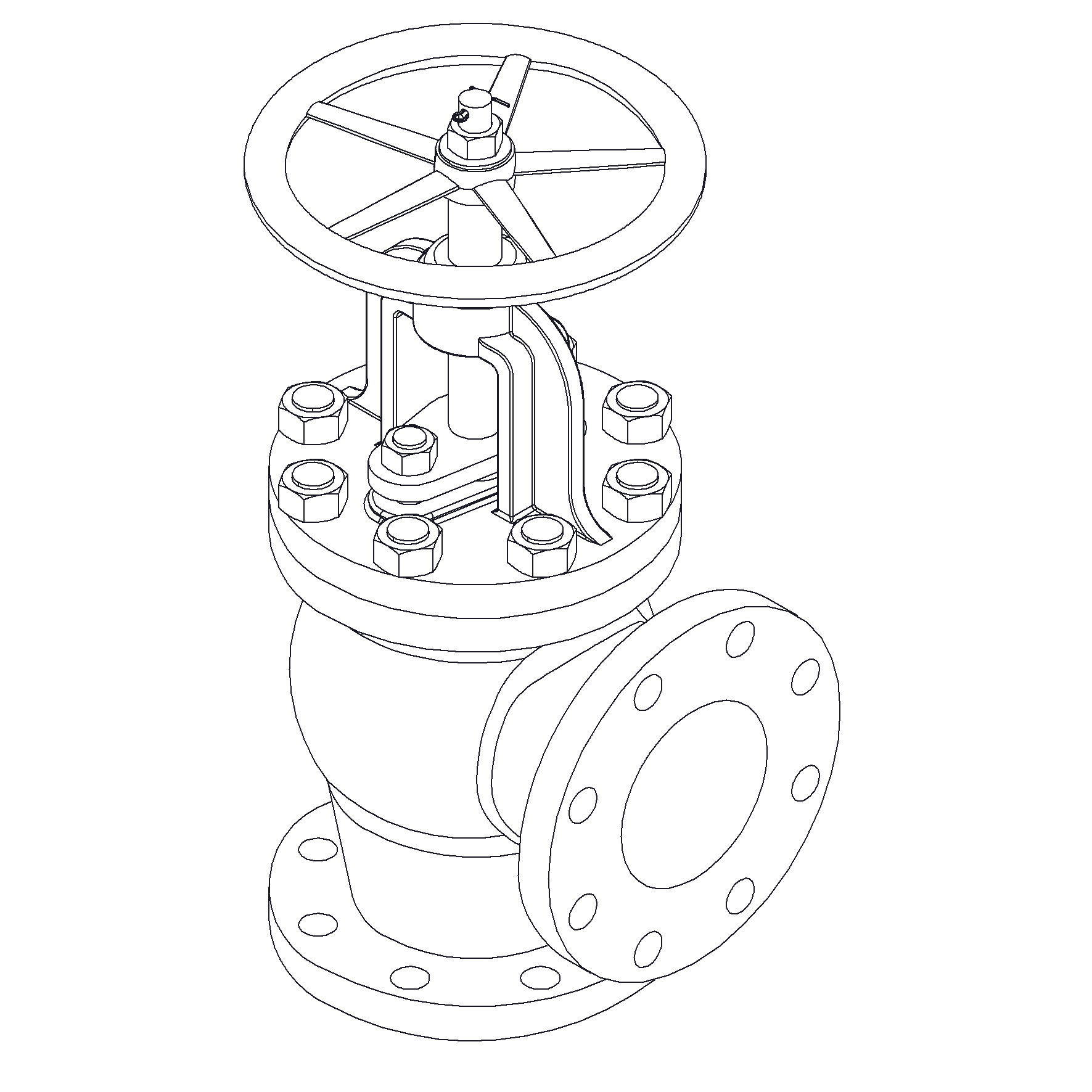

Angled type, Cast Iron body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
More Information
Product Group F-7354
Remark Connection: JIS 5K
End Standard JIS B2239
Inspection Standard JIS F7400
Throughput Direction Angled
Variant SDNR
Material Disc Bronze
End Type Flanged
Design Code JIS F7306
Standard JIS
Application Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 250
Material Seat Bronze
Material Body Cast Iron
Sub Category GLOBE
Item Number 150-00001858
Category Valve
Pressure Rating JIS 5K
Partslist and details

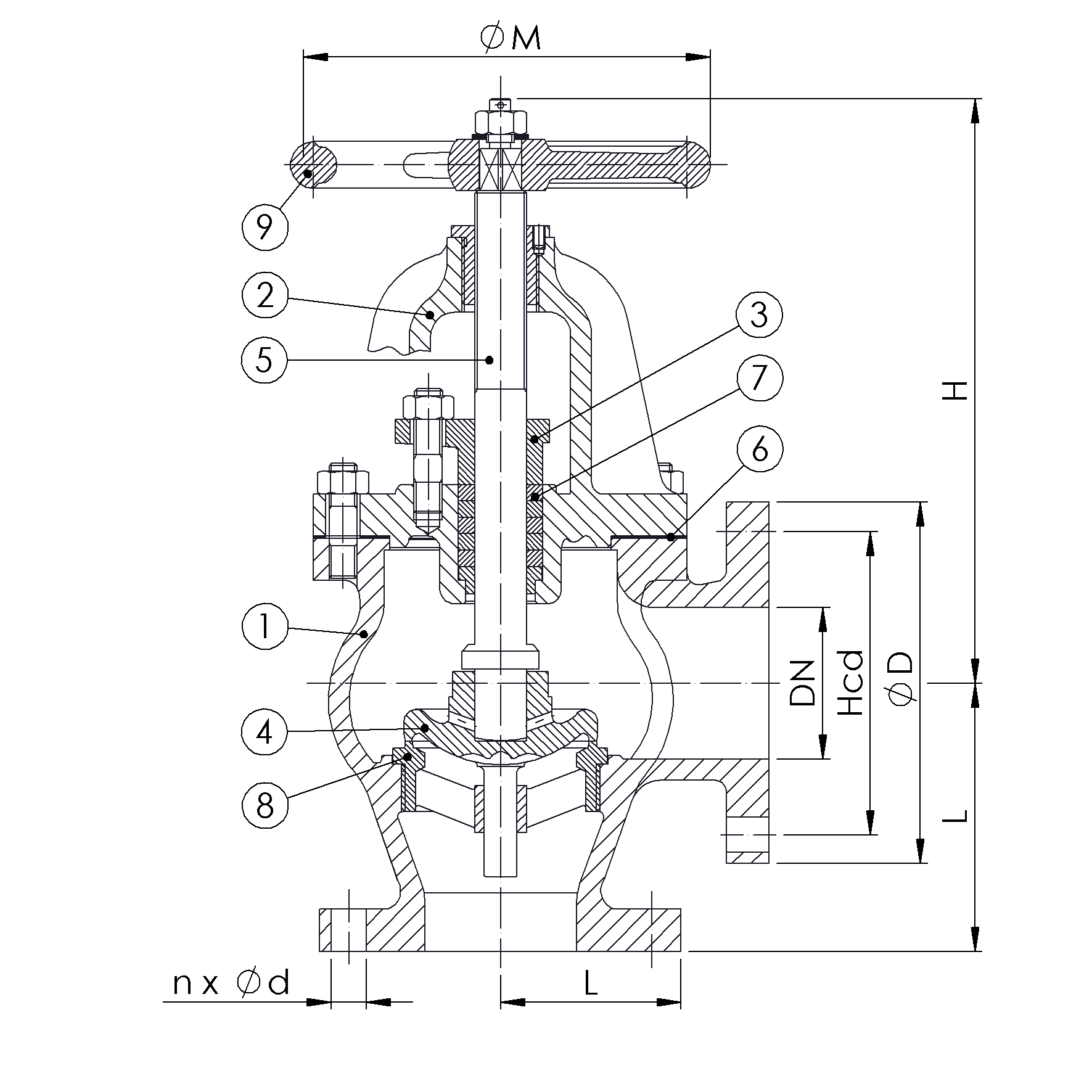

PARTSLIST
No Part Material Code
1 Body Cast Iron HT200
2 Bonnet Cast Iron HT200
3 Gland Brass H62
4 Disc Bronze ZCuSn5Pb5Zn5
5 Stem Brass H62
6 Gasket Graphite
7 Packing Graphite
8 Sealing ring Bronze ZCuSn5Pb5Zn5
9 Handwheel Cast Iron HT200


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
250 5 12x23 345 385 275 176 540 355
