Globe Valve DN25 PN16

Angled type - SDSL
Item No.
150-00001447
Details

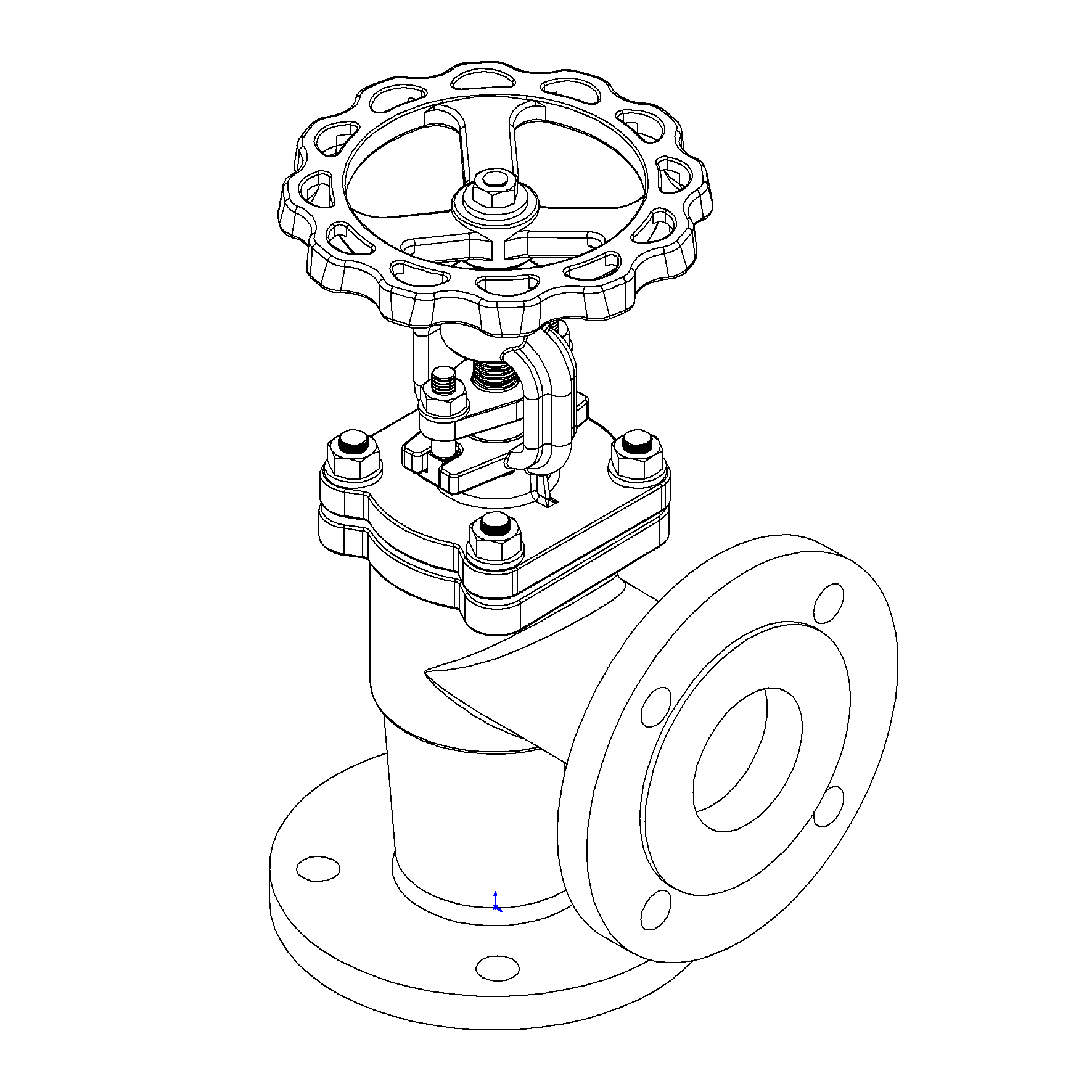

Angled type, Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
More Information
Product Group 467152
Remark Connection: PN16
End Standard EN 1092-2
Face To Face Standard EN 558, series 8
Throughput Direction Angled
Variant SDSL
Material Disc Bronze
End Type Flanged
Design Code DIN 86251
Standard DIN
Application Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water
Size 25
Material Seat Bronze
Material Body Cast Iron
Sub Category GLOBE
Item Number 150-00001447
Category Valve
Pressure Rating PN16

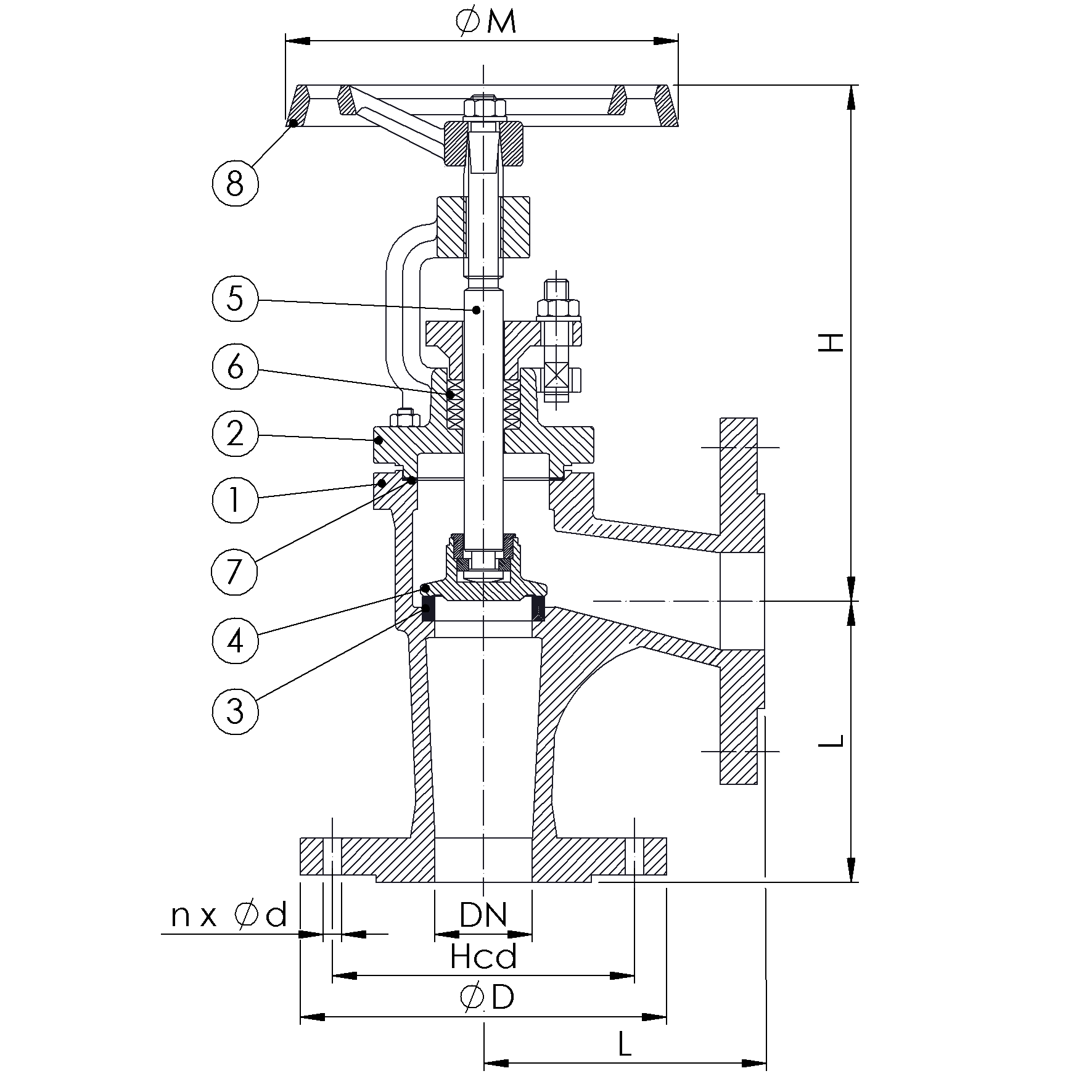

Partslist and details
PARTSLIST
No Part Material Code
1 Body Cast Iron GG25
2 Bonnet Cast Iron GG25
3 Seat Bronze RG5
4 Disc Bronze RG5
5 Stem Special Brass Som59
6 Gland packing Graphite
7 Gasket Graphite
8 Handwheel Cast Iron GG25


DETAILS
DN Pressure Rating Id nxdd Hcd Ø D L Kg H Ø M
25 16 4x14 85 115 100 5 180 140
