Globe Valve DN200 PN10/PN16
Details

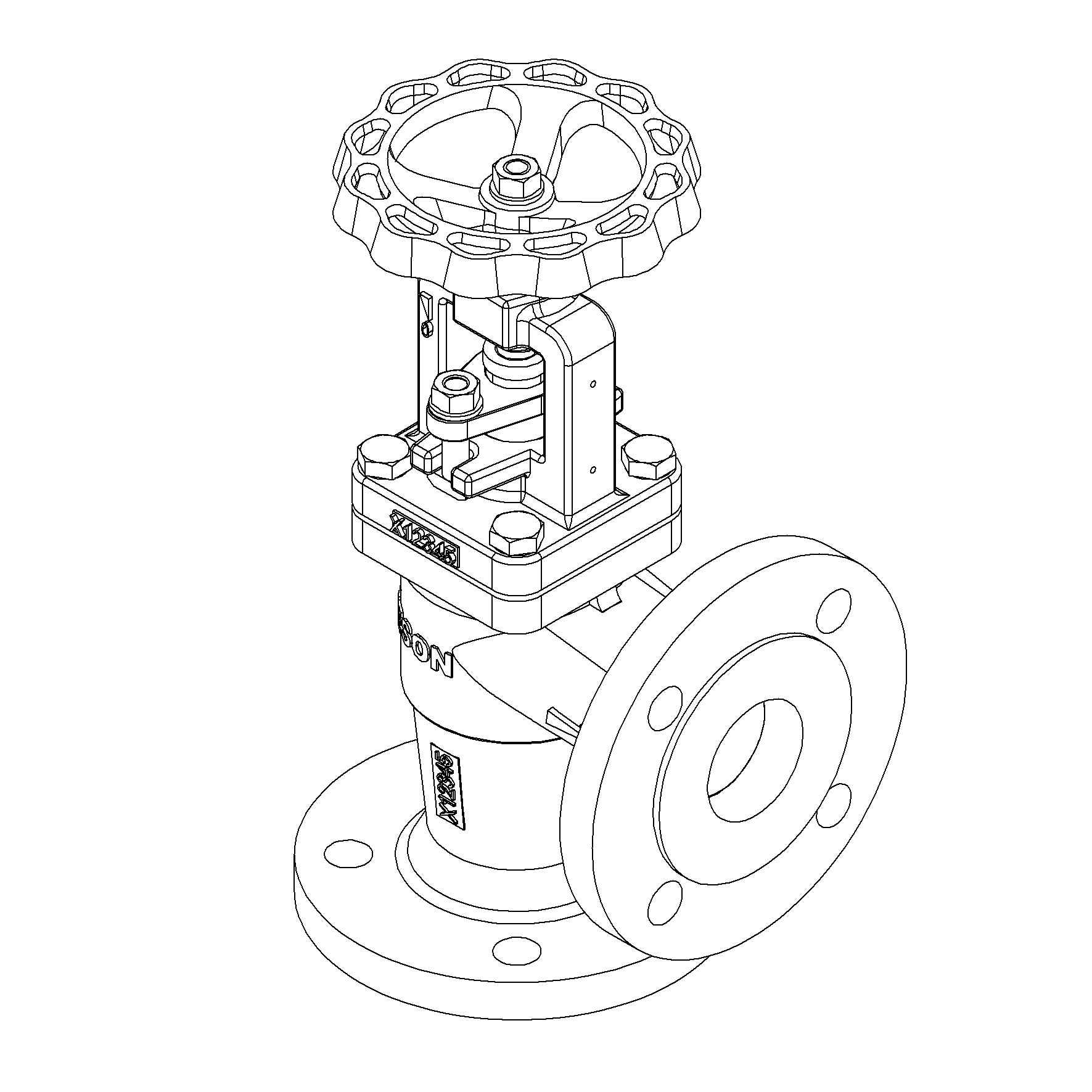

Angled type, Nodular Cast Iron body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 467101 |
| Material Body | Nodular Cast Iron, GGG40 |
| Remark | Connection: PN16 |
| Throughput Direction | Angled |
| Face To Face Standard | EN 558, series 8 |
| End Standard | EN 1092-2 |
| Design Code | EN 13789 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 200 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Pressure Rating | PN10 |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00002091 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | SDNR with spring |
Partslist and details

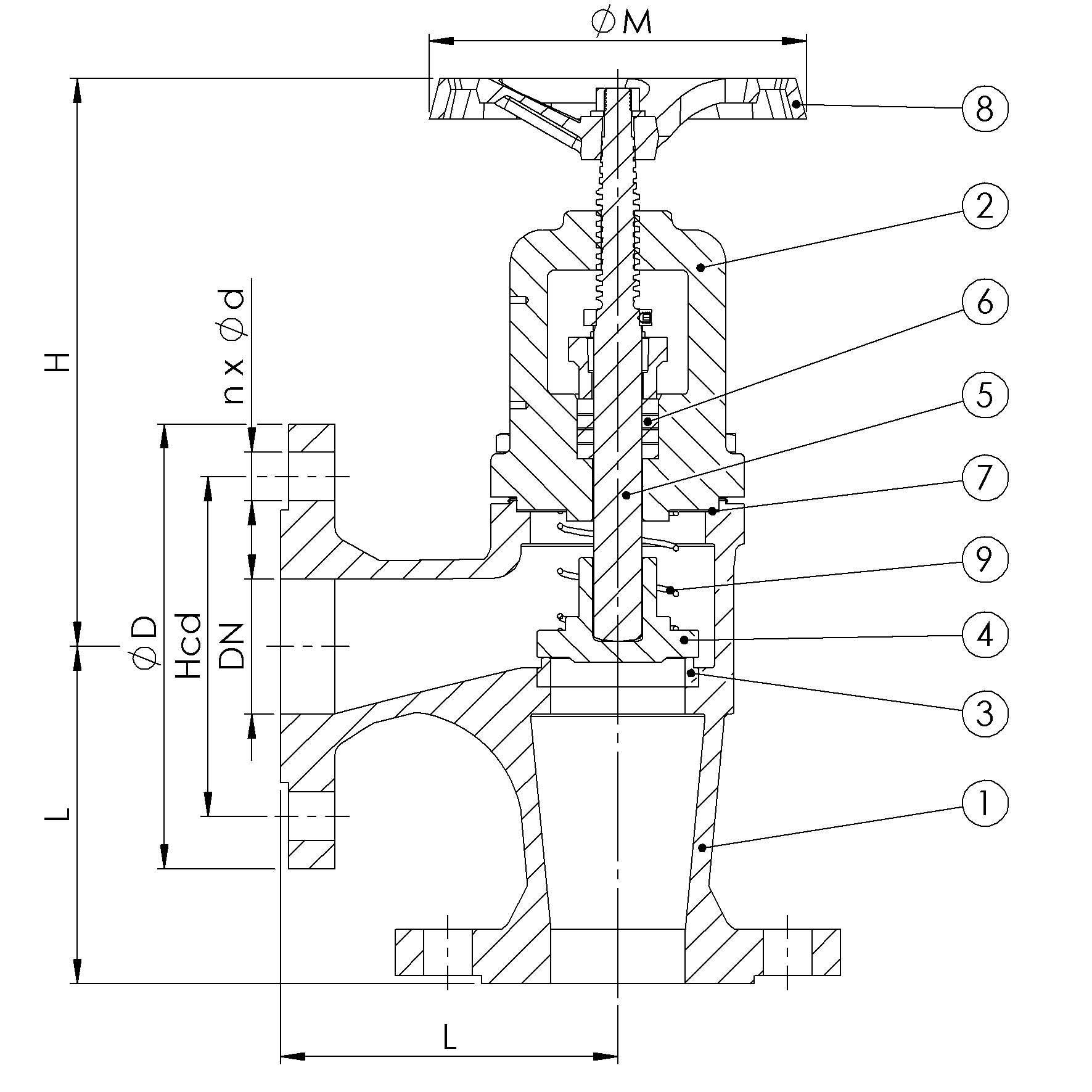

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Bonnet | Nodular Cast Iron | GGG40 |
| 3 | Seat | Bronze | RG5 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite | |
| 8 | Handwheel | Cast Iron | GG25 |
| 9 | Spring | Stainless Steel | 1.4301 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 200 | 10 | 12x23 | 295 | 340 | 275 | 110 | 488 | 400 |
